Welcome to an overview of the Arc Flash Module in LabelForge PRO, demonstrating how to customize an arc flash label by adjusting the header, equipment details, incident energy information, PPE requirements, and shock protection boundaries. It walks through how each field updates the label in real time and highlights options for adding preset or custom PPE items.
The overview also covers key printer setting adjustments for DuraLabel Systems, especially when working with pre printed or multicolor arc flash supplies.

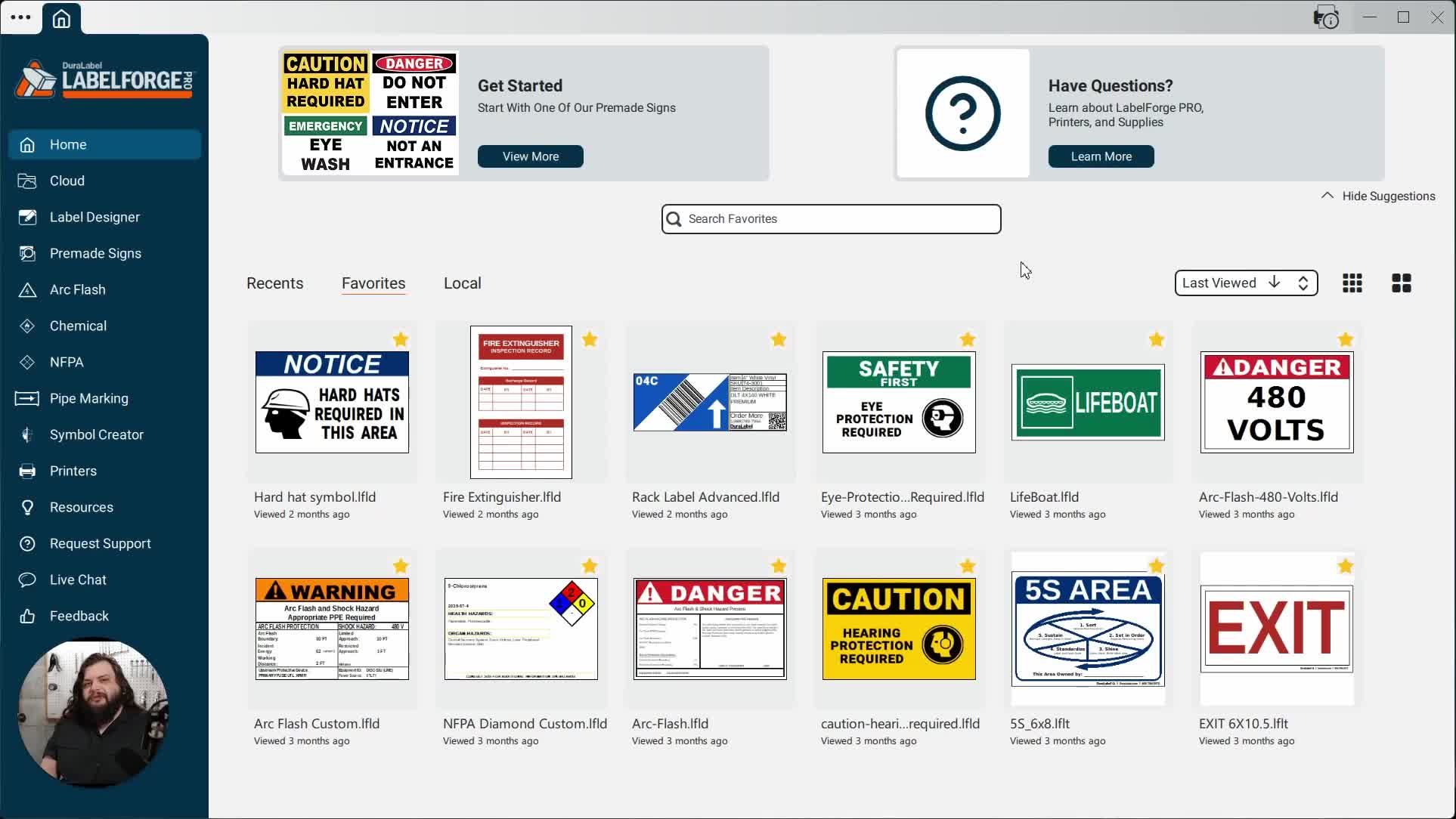

1. Open Arc Flash Module 0:07
-
Launch Labelforge PRO.
-
Locate the Arc Flash module on the left-hand side.
-
Click on 'Arc Flash' to open the template.

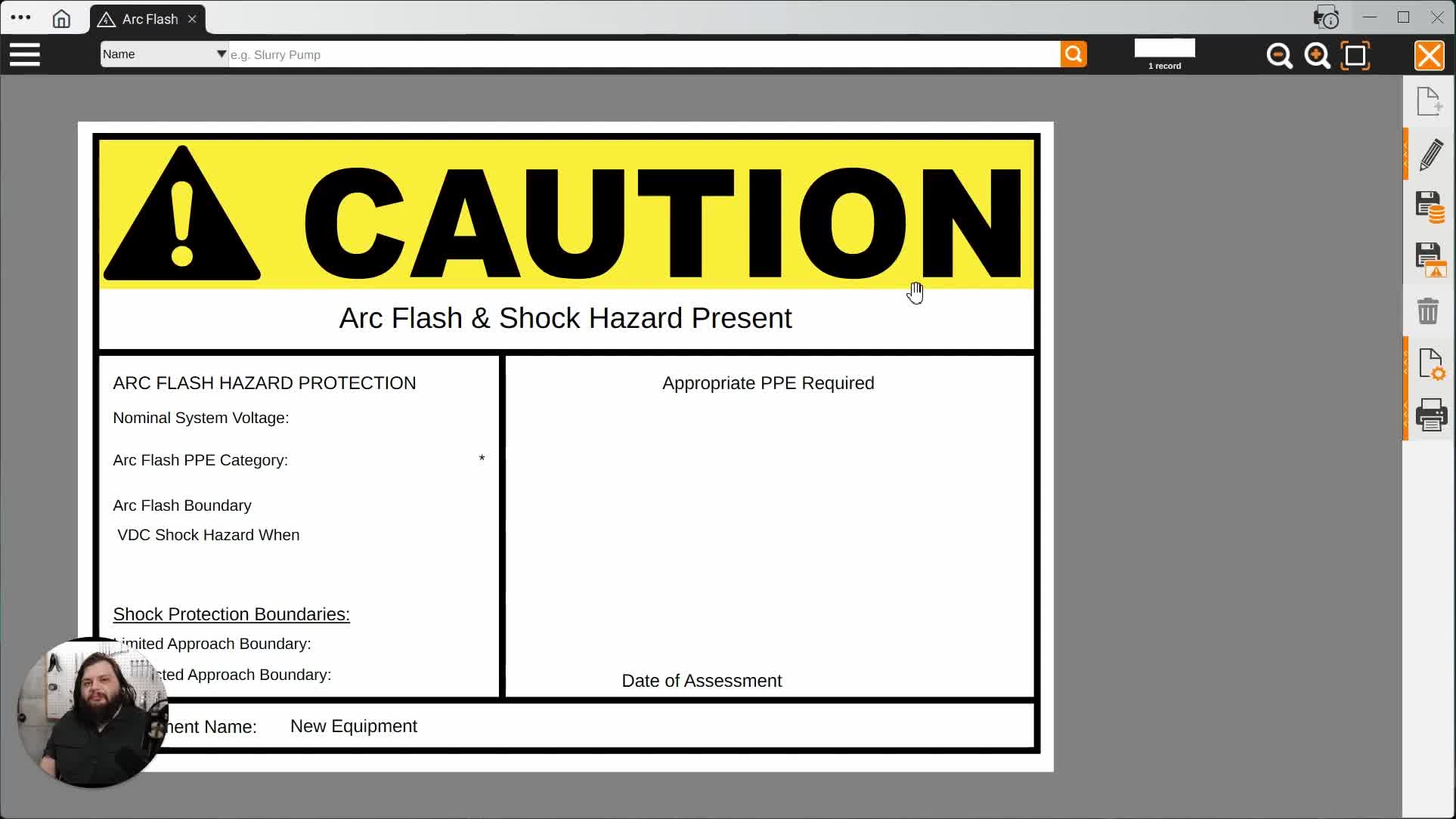

2. Update Header 0:20
-
Click on the pencil edit icon.
-
Select the current header (e.g., 'Caution') and change it to 'Warning'.

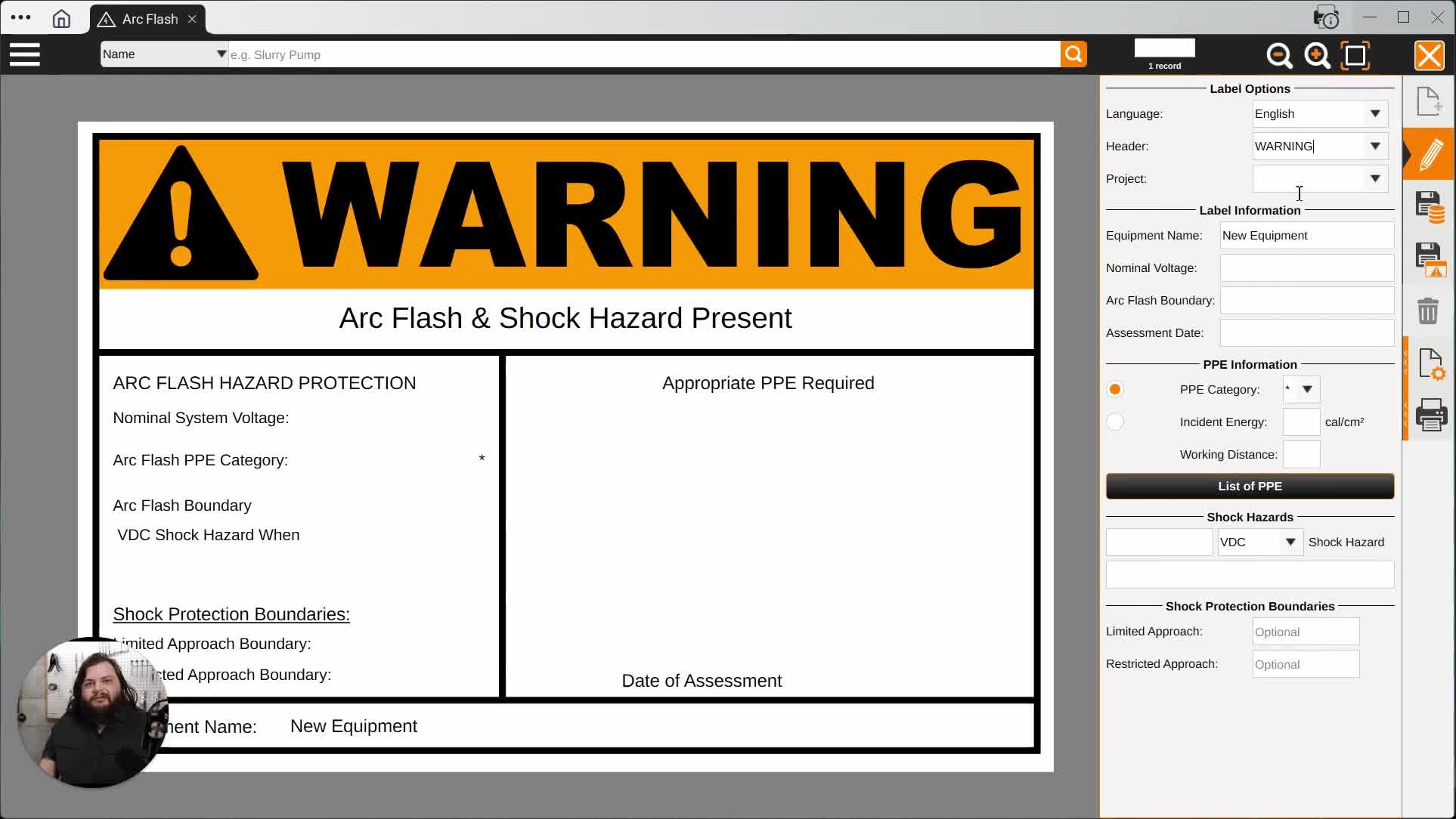

3. Enter Project Information (Optional) 0:39
-
If applicable, enter the project name in the designated field.
4. Fill Out Label Information 0:51
-
Input the following details:
-
Equipment Name
-
Nominal Voltage
-
Arc Flash Boundary
-
Assessment Date
-
-
Review the updates reflected in the label.
5. Update PPE Information 1:19
-
Change the PPE information to 'Incident Energy'.
-
Fill in the relevant details:
-
Incident Energy (e.g., 1.9 calories/cm²)
-
Working Distance (e.g., 1 foot 6 inches)
-
-
Select the appropriate PPE category (e.g., Level 1).

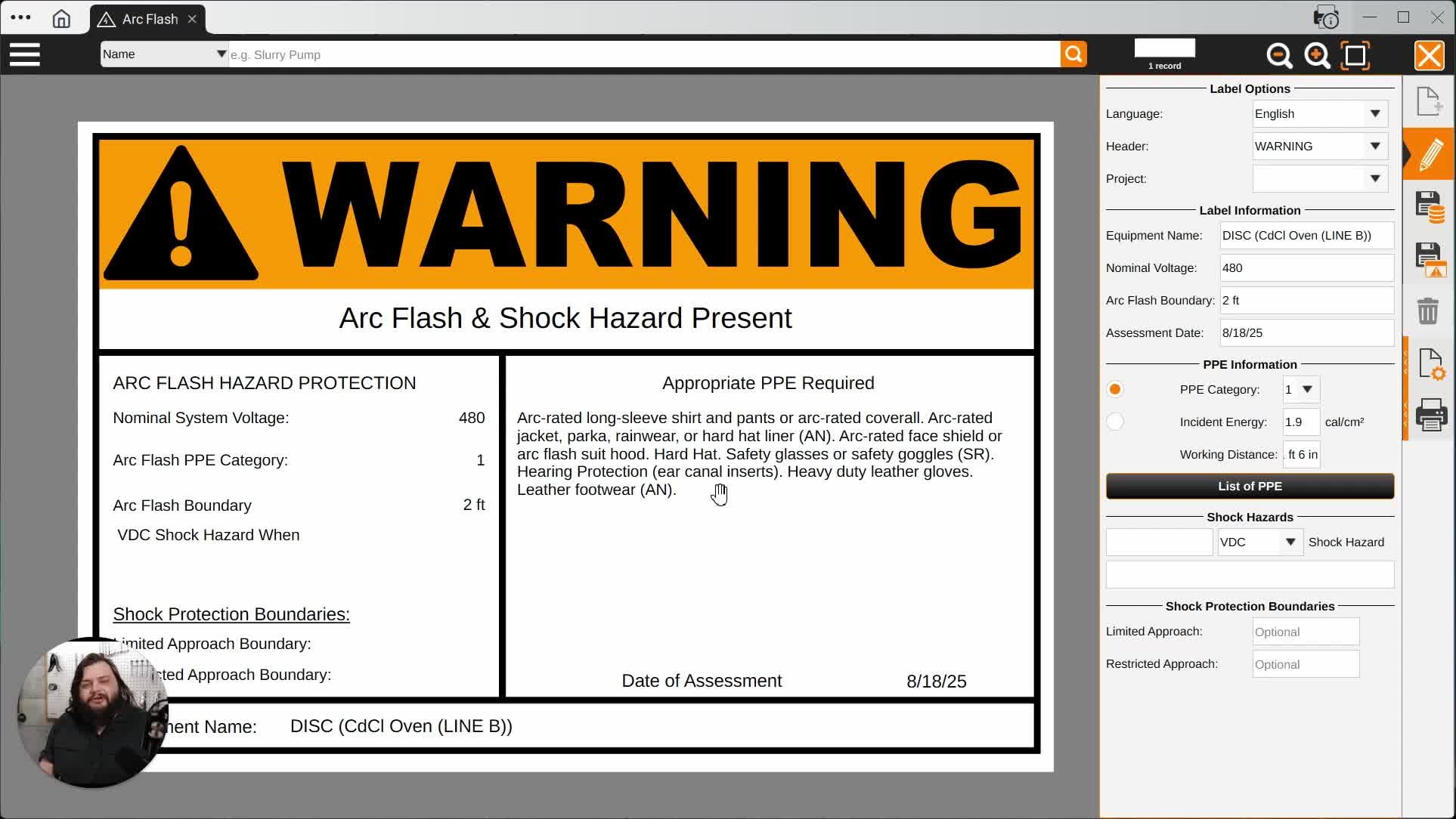

6. Add Additional PPE (if necessary) 2:01
-
To include additional PPE:
-
Click on the list of PPE options.
-
Select desired items and click 'OK'.
-
-
To add custom PPE, type it in the appropriate field and click 'OK'.

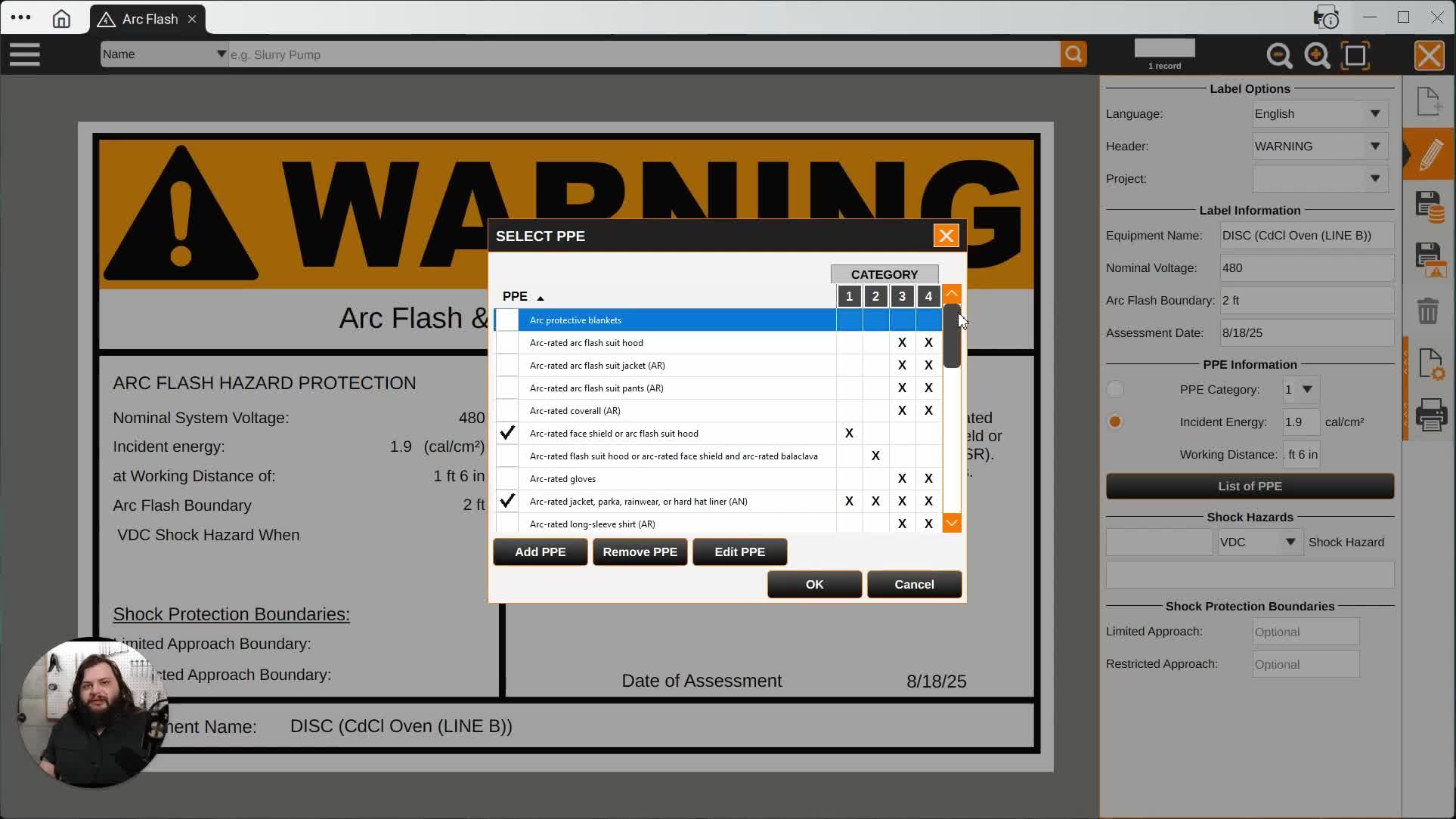

7. Include Shock Hazards and Protection Boundaries 2:41
-
Add shock hazards and protection boundaries:
-
Include voltage type (e.g., change from DC to AC).
-
Add messages (e.g., 'Cover is removed').
-
Specify approach boundaries.
-

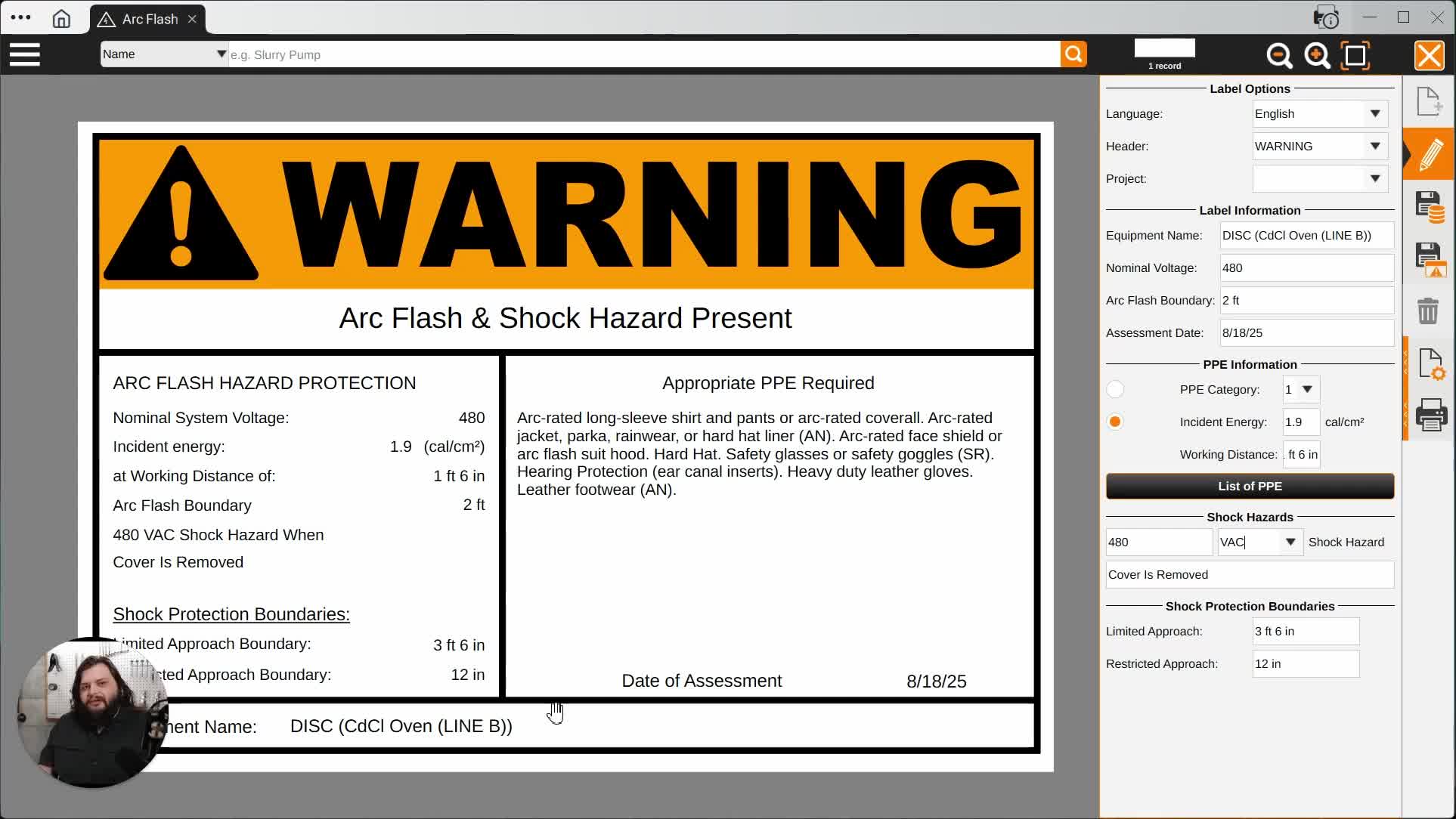

8. Adjust Print Settings 3:22
-
Go to 'Settings'.
-
In 'Select What to Print':
-
Deselect 'Stripe', 'Header', and 'Border' options if using pre-printed supplies.
-
Leave 'Grid Lines' on if preferred.
-

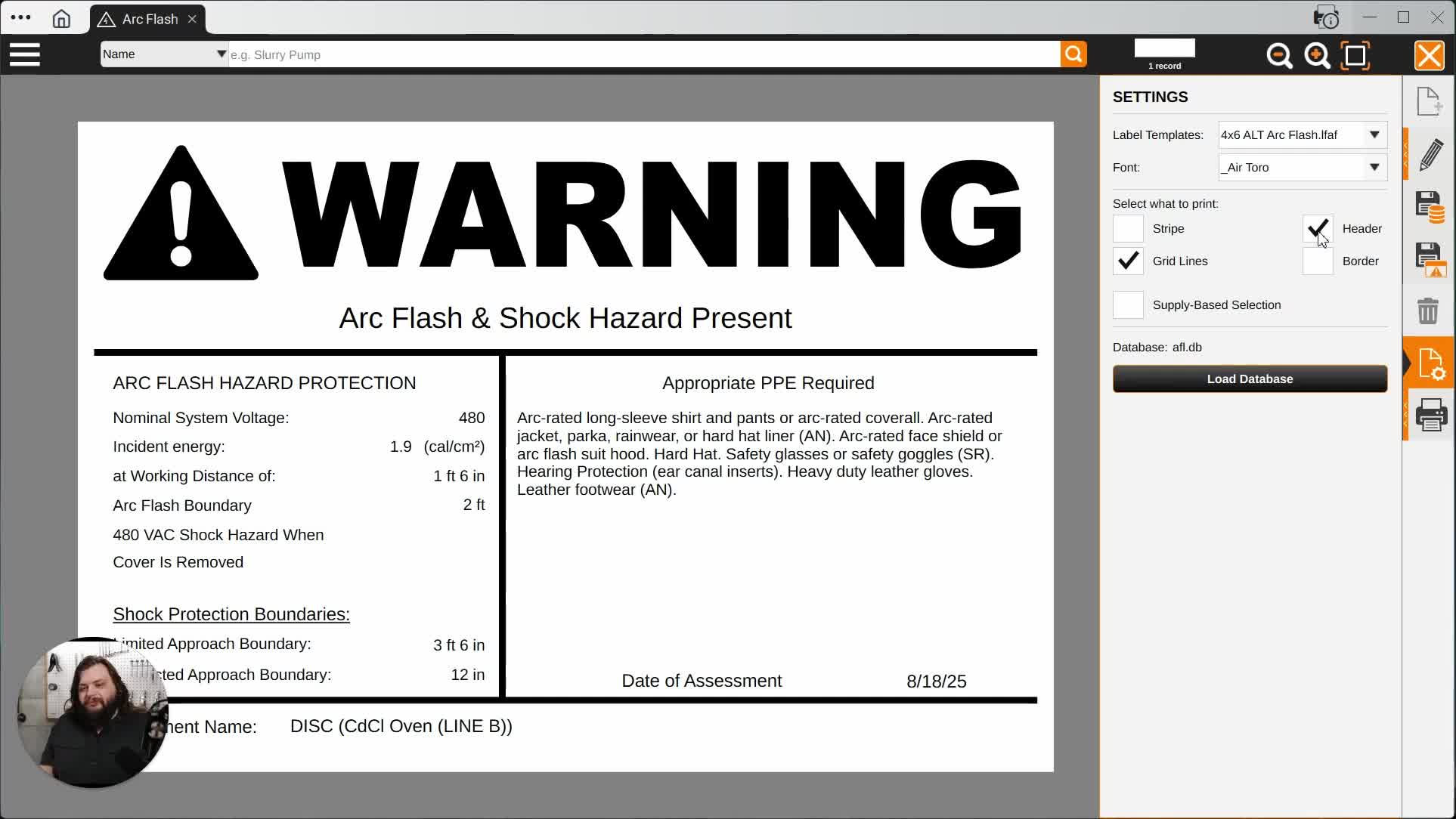

9. Change Template Size (if necessary) 4:32
-
If using a Kodiak Max printer, select the 6x9 template size instead of the default 4x6.

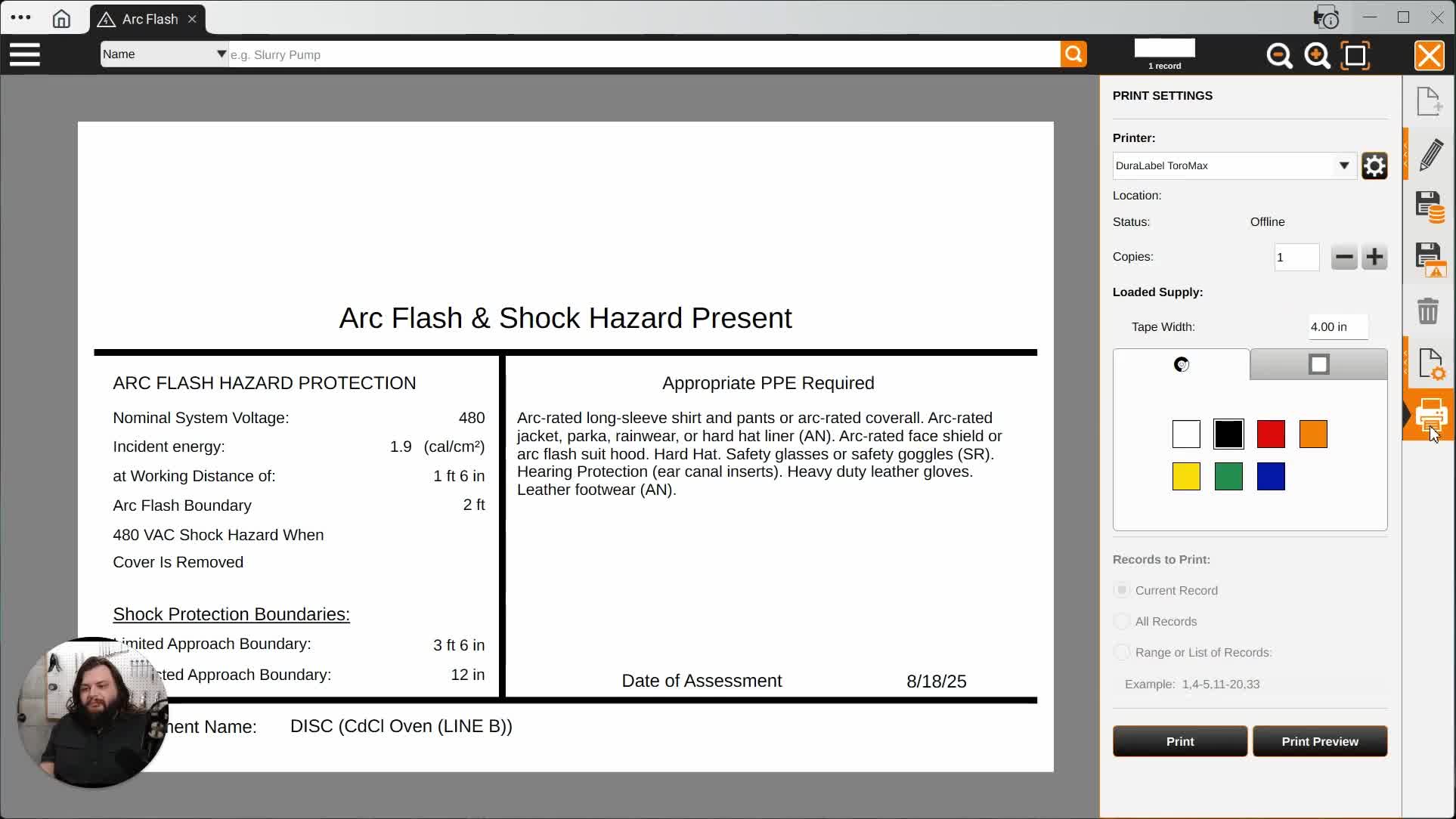

10. Print the Label 4:54
-
Navigate to 'Print Settings'.
-
Execute the print command to produce the Arc Flash label.
Cautionary Notes
-
Ensure all information is accurate before printing to avoid errors.
-
Double-check PPE selections to comply with safety standards.
