In this video we walk you through an overview of the Arrow Wrap module within LabelForge PRO's Pipe Marking module, showing how to customize a water pipe label to meet ANSI standards. It covers selecting the correct green and white color scheme, setting the size for a 6-inch pipe, and adjusting arrow designs and spacing.

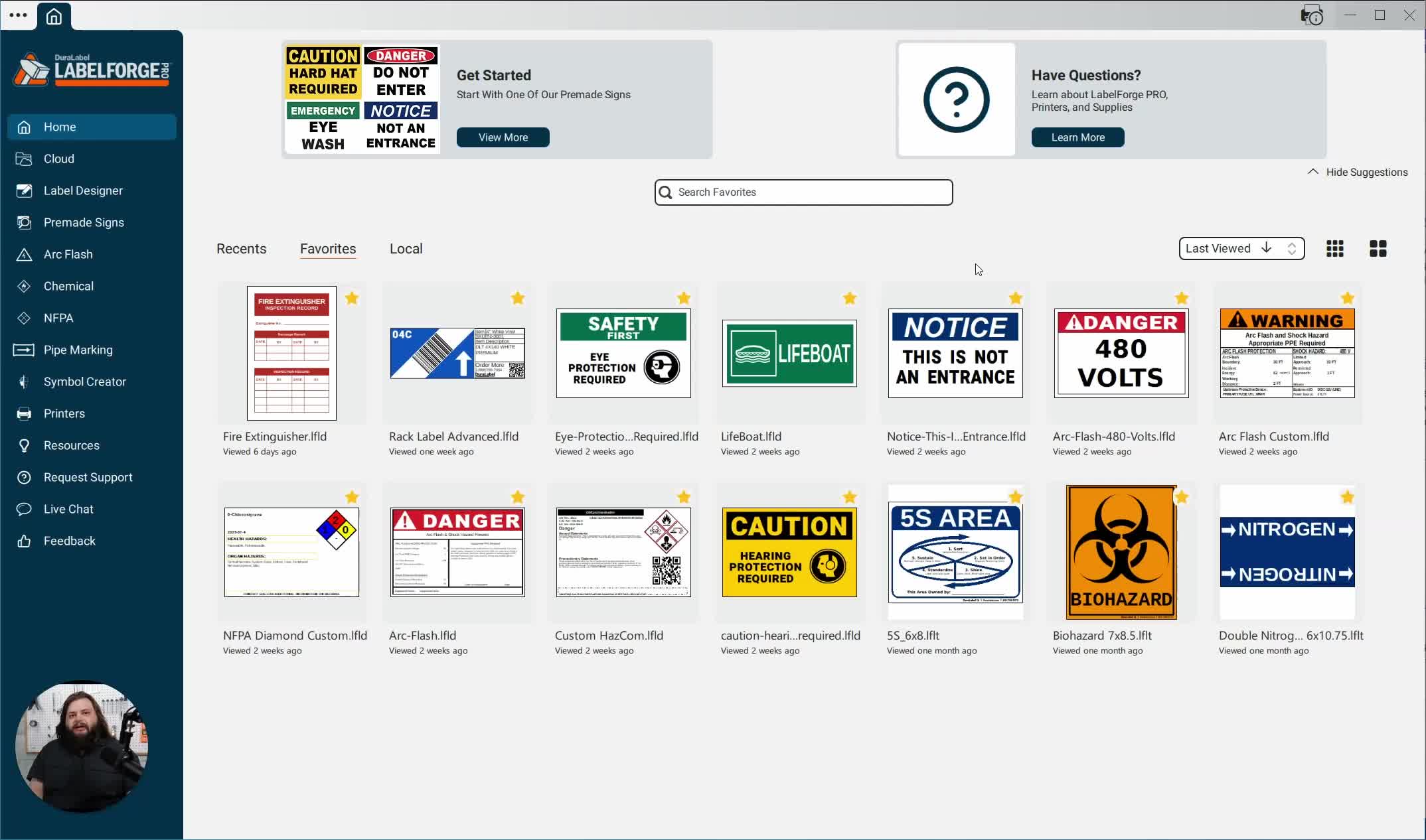

1. Access the Pipe Marking Module 0:00
- Open the LabelForge PRO software.
- Click on Pipe Marking in the left menu to access the submodule options.

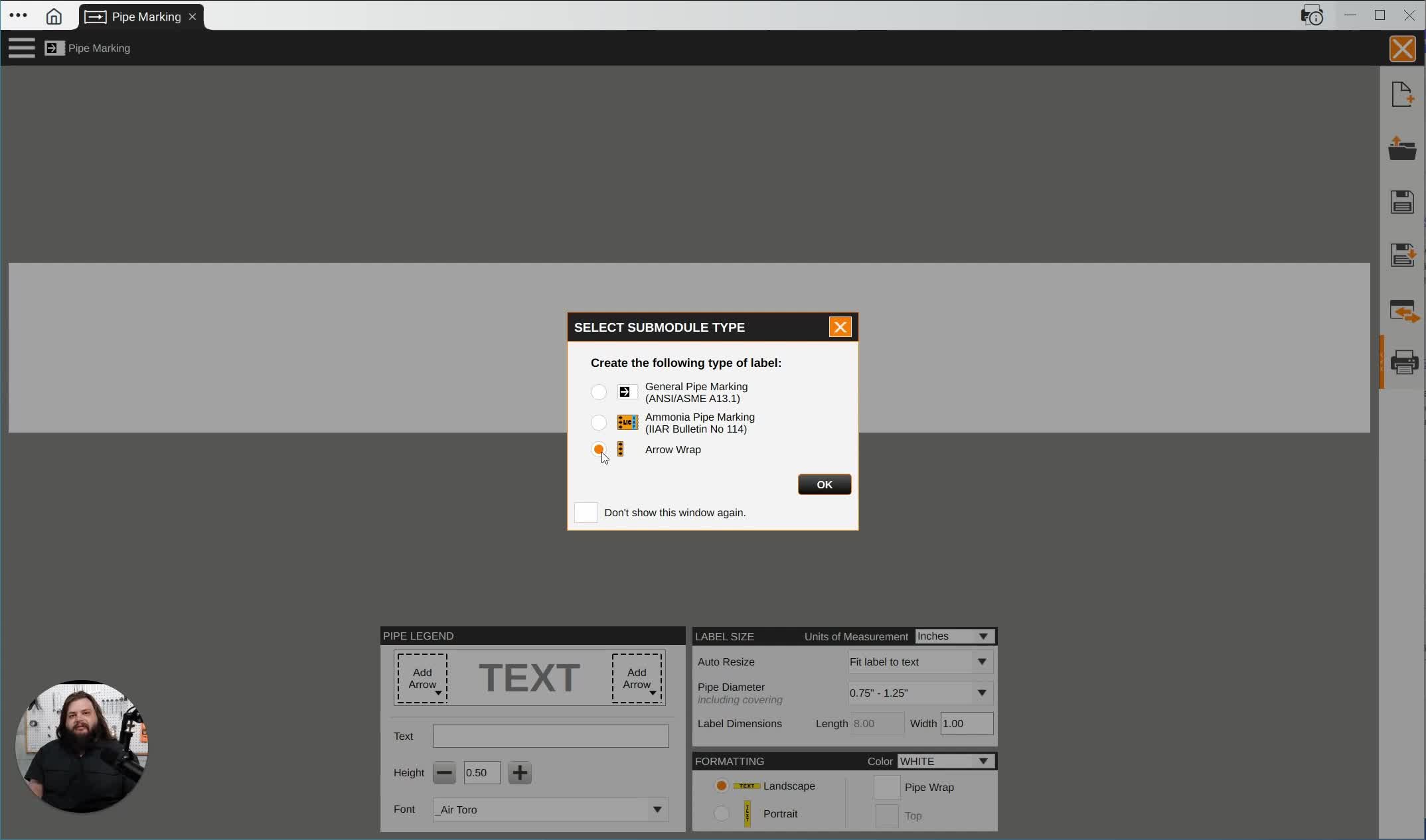

2. Select the Arrow Wrap Submodule 0:08
-
From the submodule options, select Arrow Wrap.
-
Click OK to proceed to the canvas.
3. Set Up the Canvas for Water Pipe 0:26
-
Ensure you are on the canvas with arrows displayed.

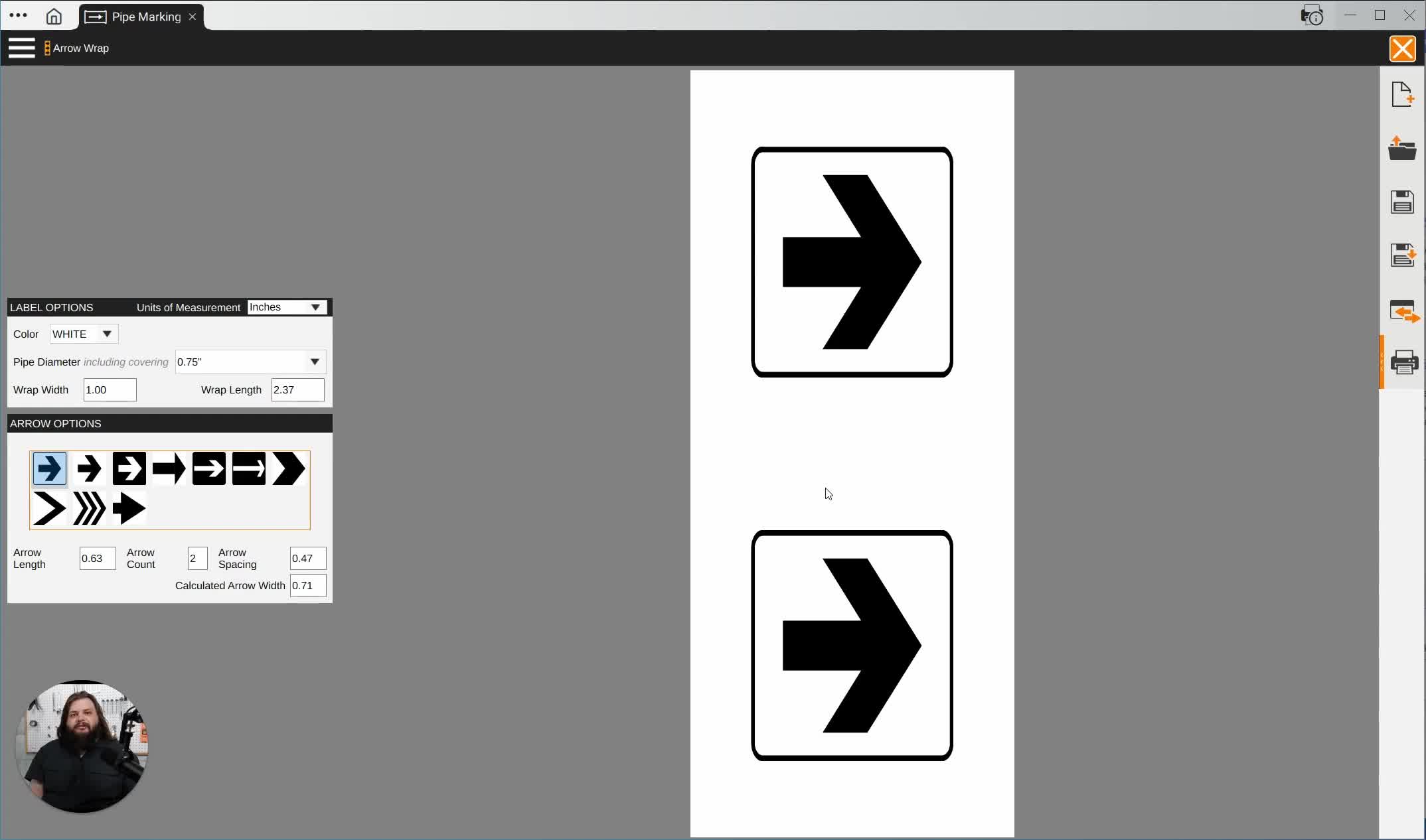

4. Choose the Correct Color Scheme 0:33
-
Change the color to Green and White to comply with ANSI standards for water pipes.

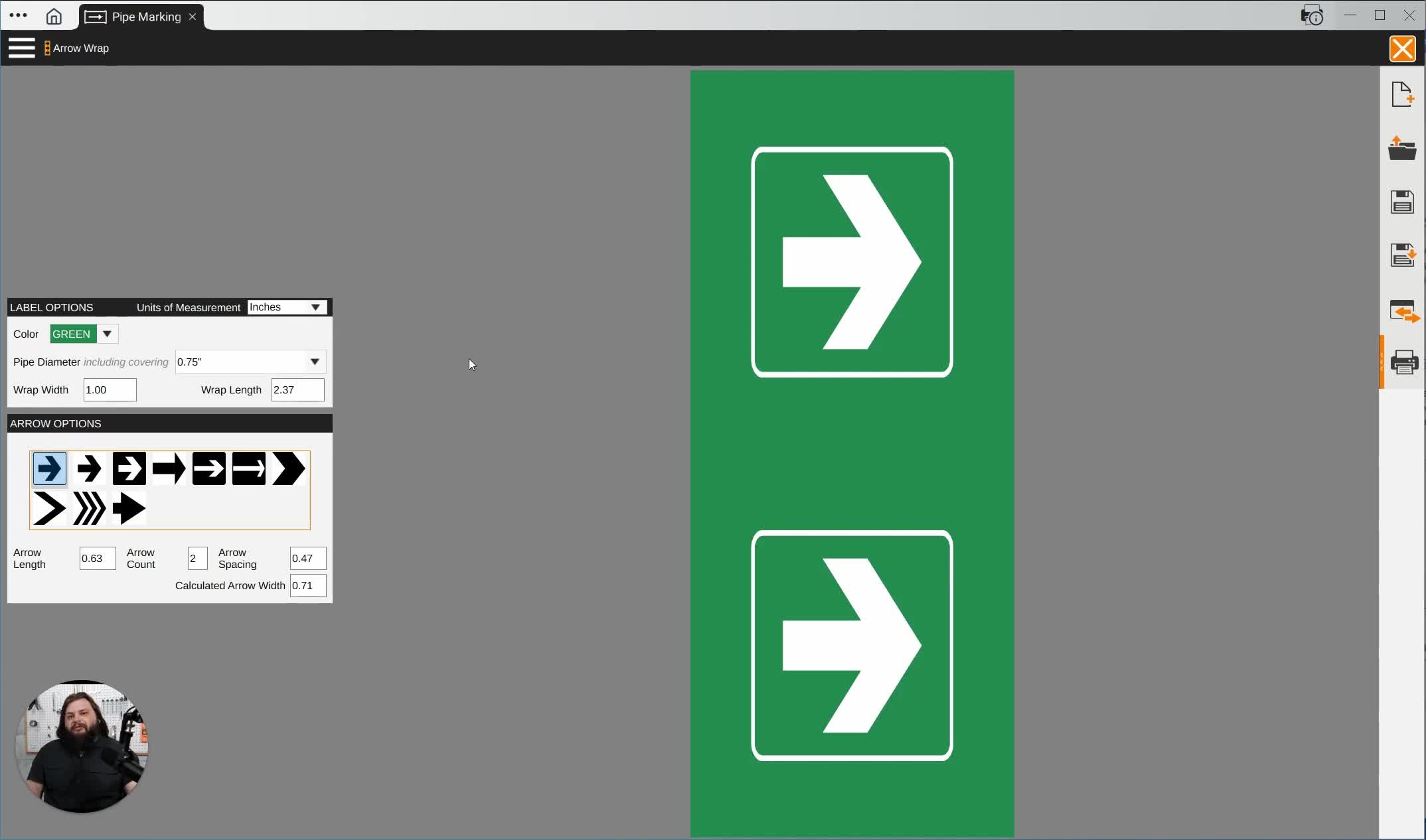

5. Select Pipe Diameter 0:45
-
Choose the appropriate pipe diameter from the dropdown menu.
-
For a six-inch pipe, select 6 to preload the design with arrows and adjust the length.
6. Customize Arrow Design 0:59
-
If needed, change the arrow design by accessing the Arrow Options.

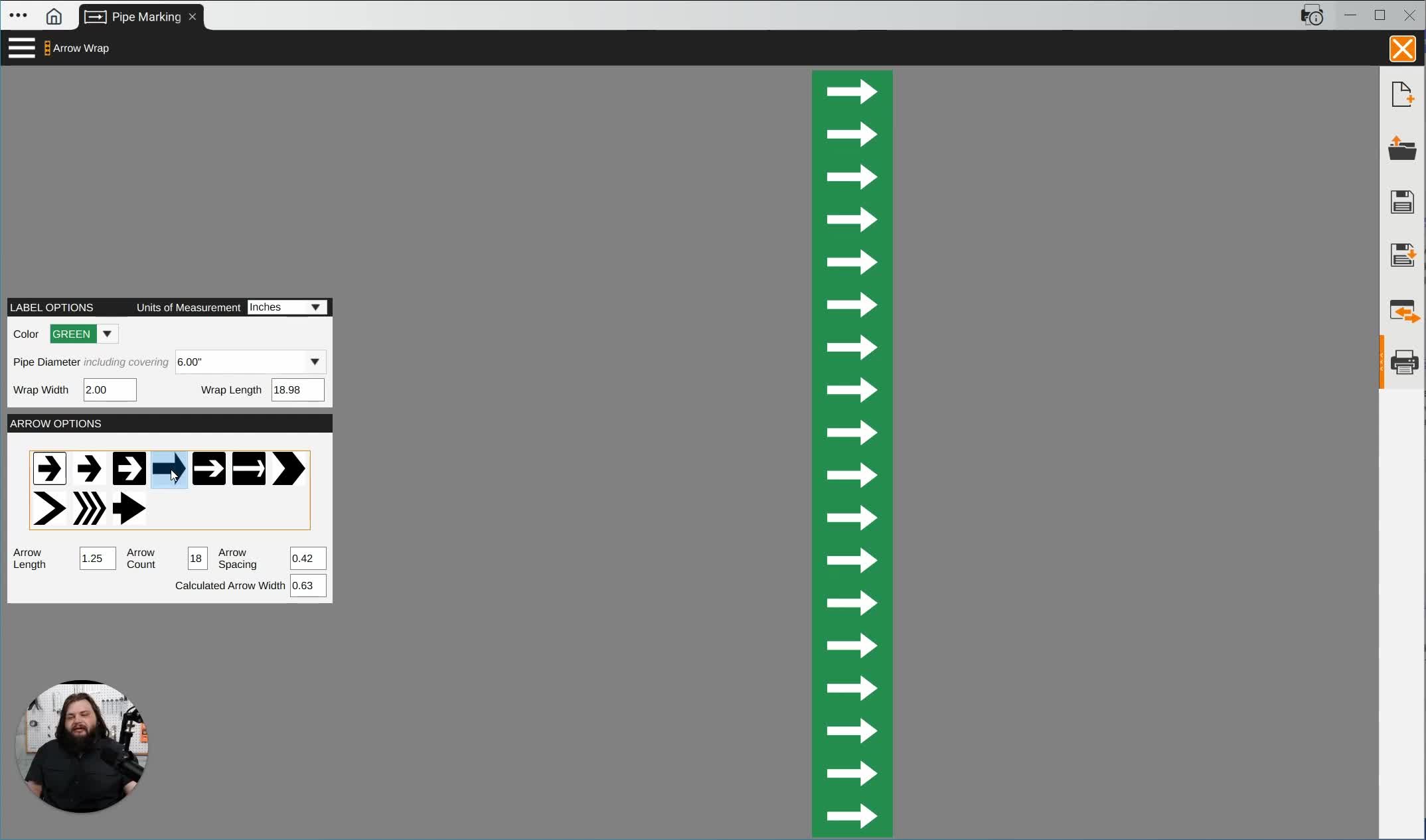

7. Adjust Arrow Quantity and Spacing 1:06
-
Modify the number of arrows, spacing, and length as required for a tailored arrow wrap.
8. Final Review and Save 1:12
-
Review the design to ensure it meets your specifications.
-
Save your work to finalize the arrow wrap.
Cautionary Notes
-
Ensure compliance with ANSI standards for color coding and design.
-
Double-check the pipe diameter selection to avoid errors in the wrap design.
Tips for Efficiency
-
Familiarize yourself with the software interface to speed up the process.
-
Use pre-set designs for common pipe types to save time.
