Calibrating your DuraLabel Toro Max is quick and easy once you know what supply you're working with. In this fast walkthrough, we show you how to identify NFPA/RTK black mark vs notched and die-cut stock like Warning, Danger and Notice headers, load your material correctly, and run a proper calibration so your labels print clean every time when changing out continuous supply.

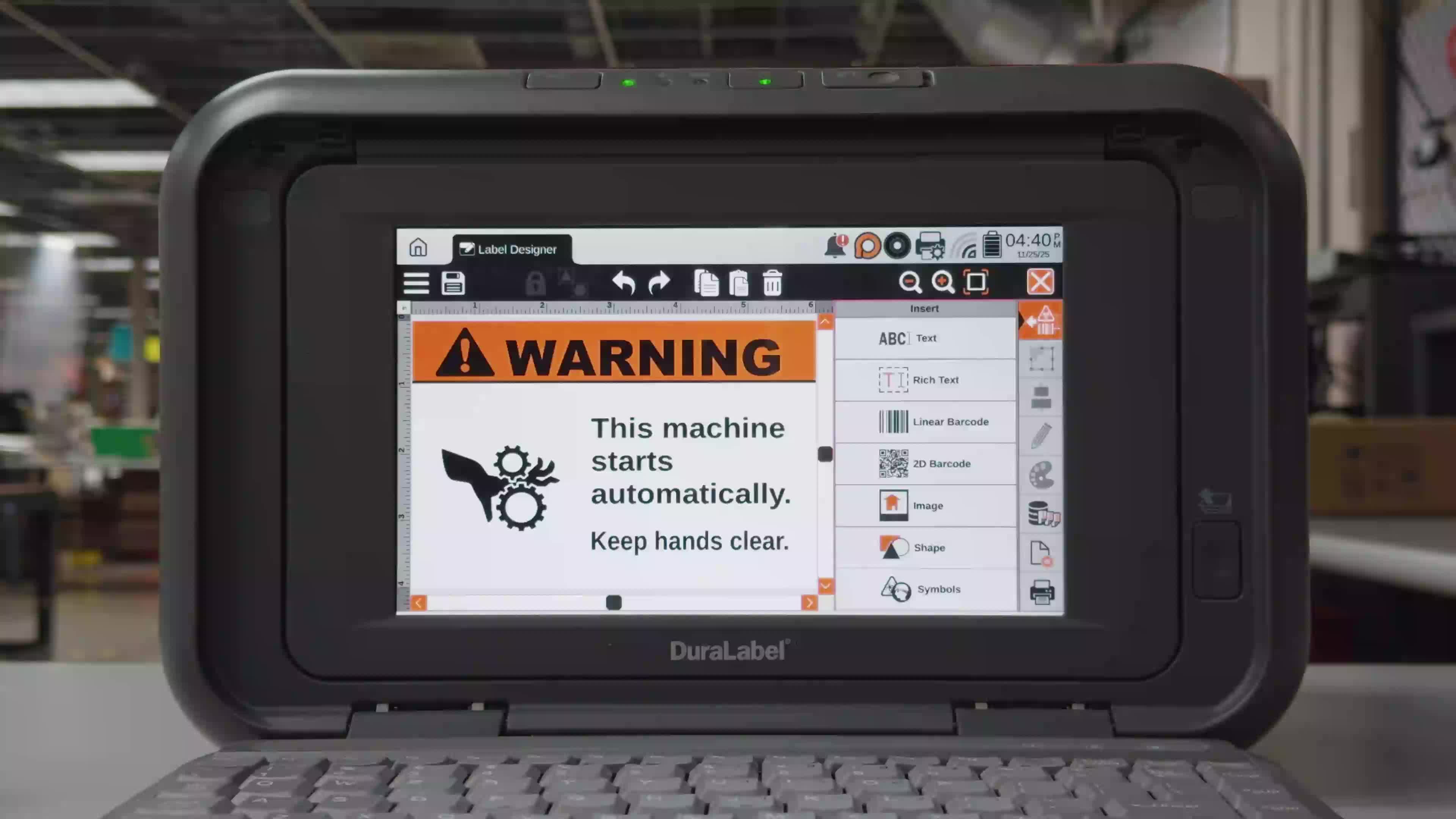

1. Load Appropriate Supply 0:00
-
Identify the correct supply type:
-
Black Mark Supply: Look for a pre-printed black stripe on the back.
-
Notched Supply: Look for notched cutouts between each label.
-
-
Open the lid of the printer.
-
Remove the currently loaded supply.

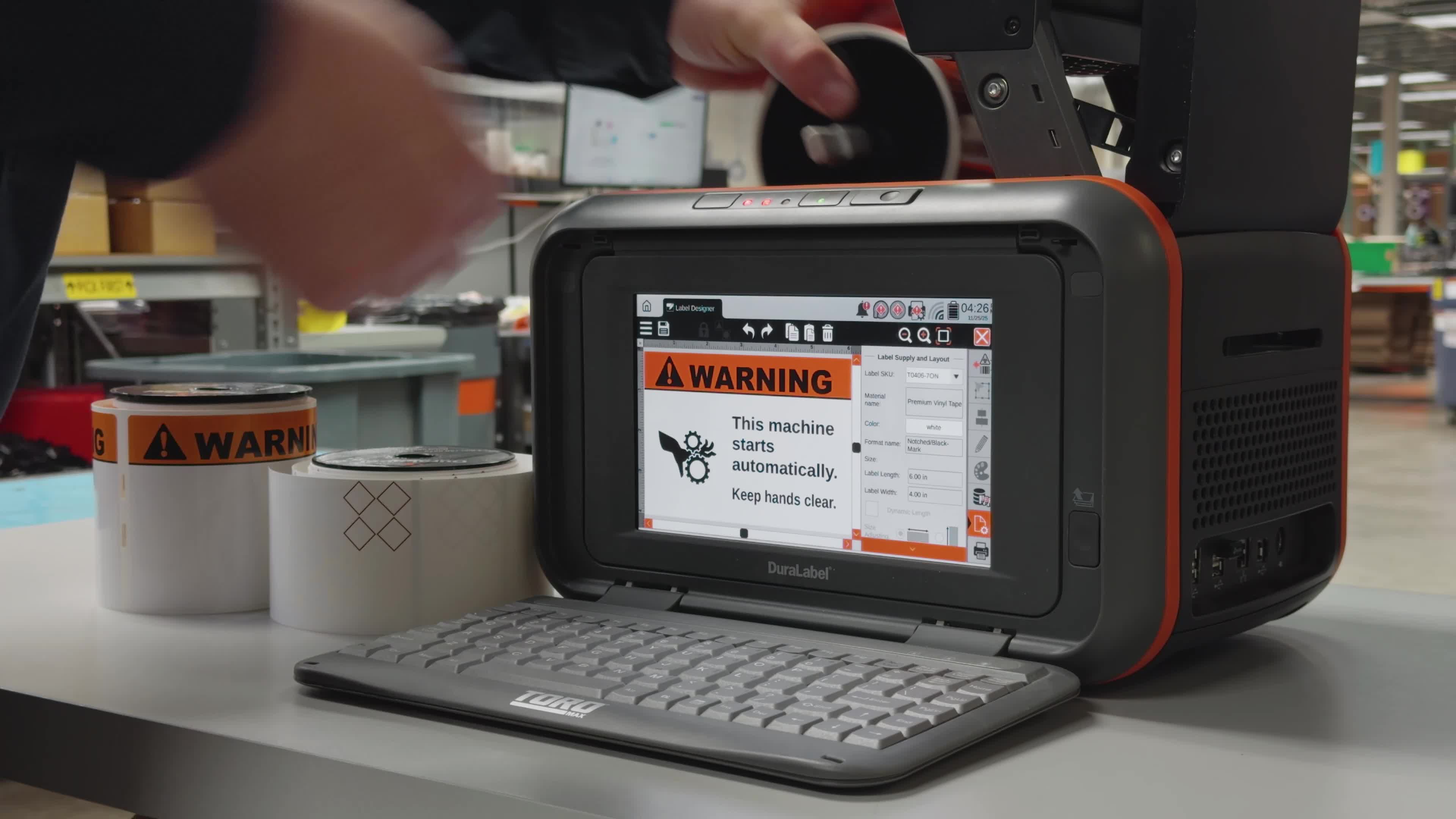

2. Install New Supply 0:39
-
Remove the spindle from the old supply and set it aside.
-
Load the new supply (e.g., warning tape) onto the spindle.
-
Position the supply so it is aligned with the platen roller.

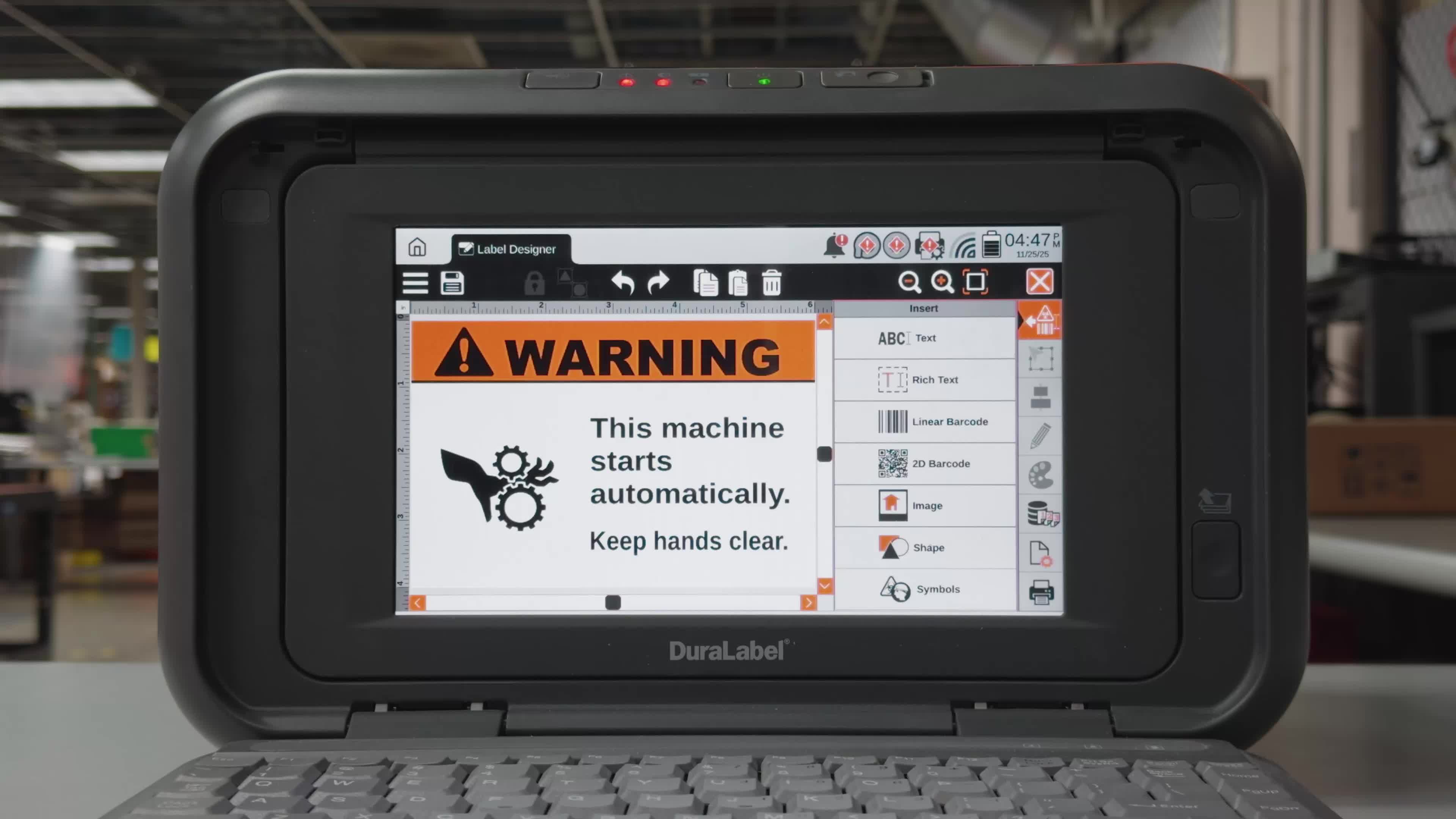

3. Close the Lid and Initiate Calibration 1:00
-
Close the lid of the printer.
-
Wait for a message to appear in the lower right corner prompting calibration.

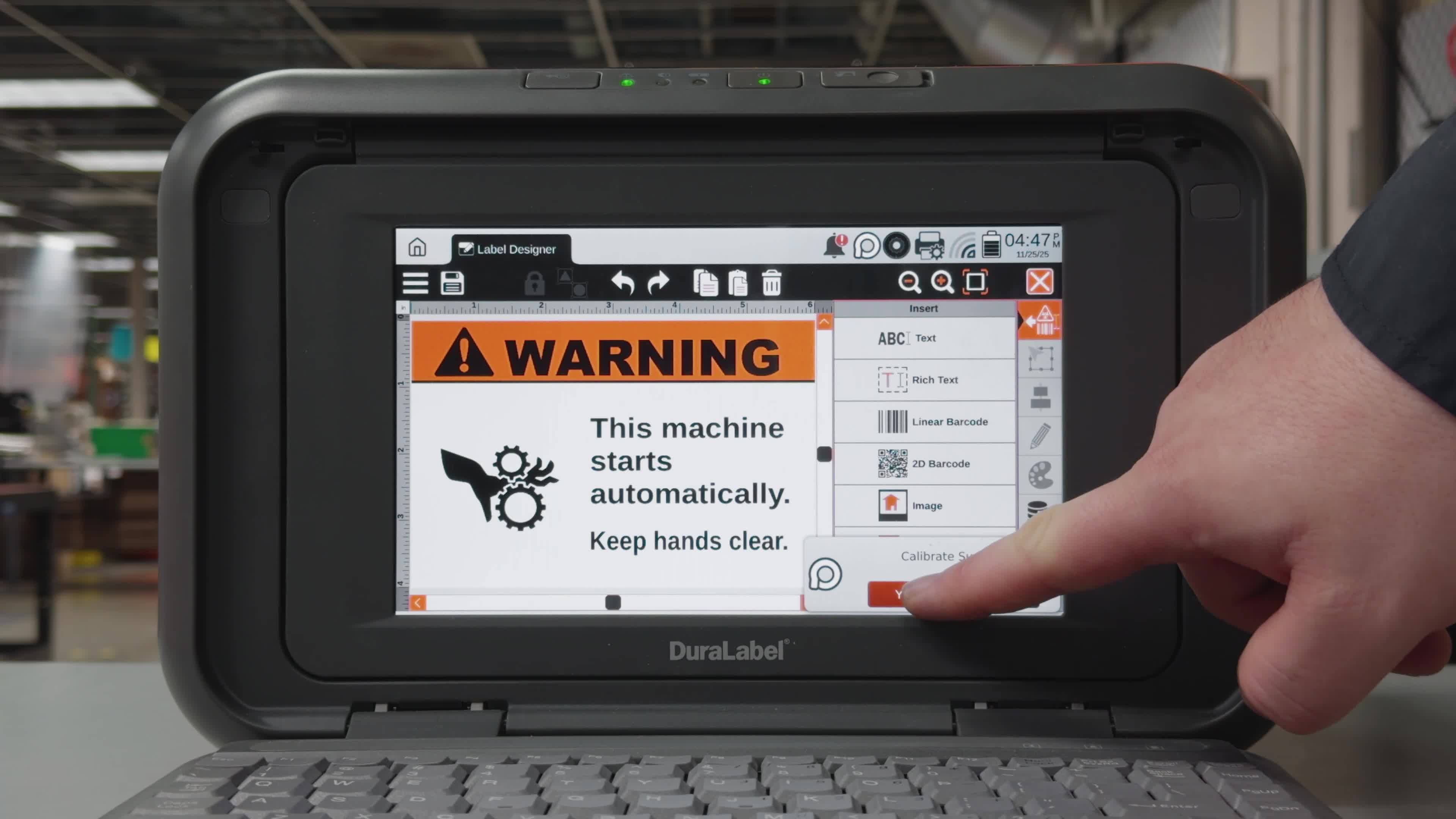

4. Confirm Calibration 1:07
-
Click 'Yes' when prompted to calibrate the supply.
-
Expect 1-2 labels to be ejected from the machine.

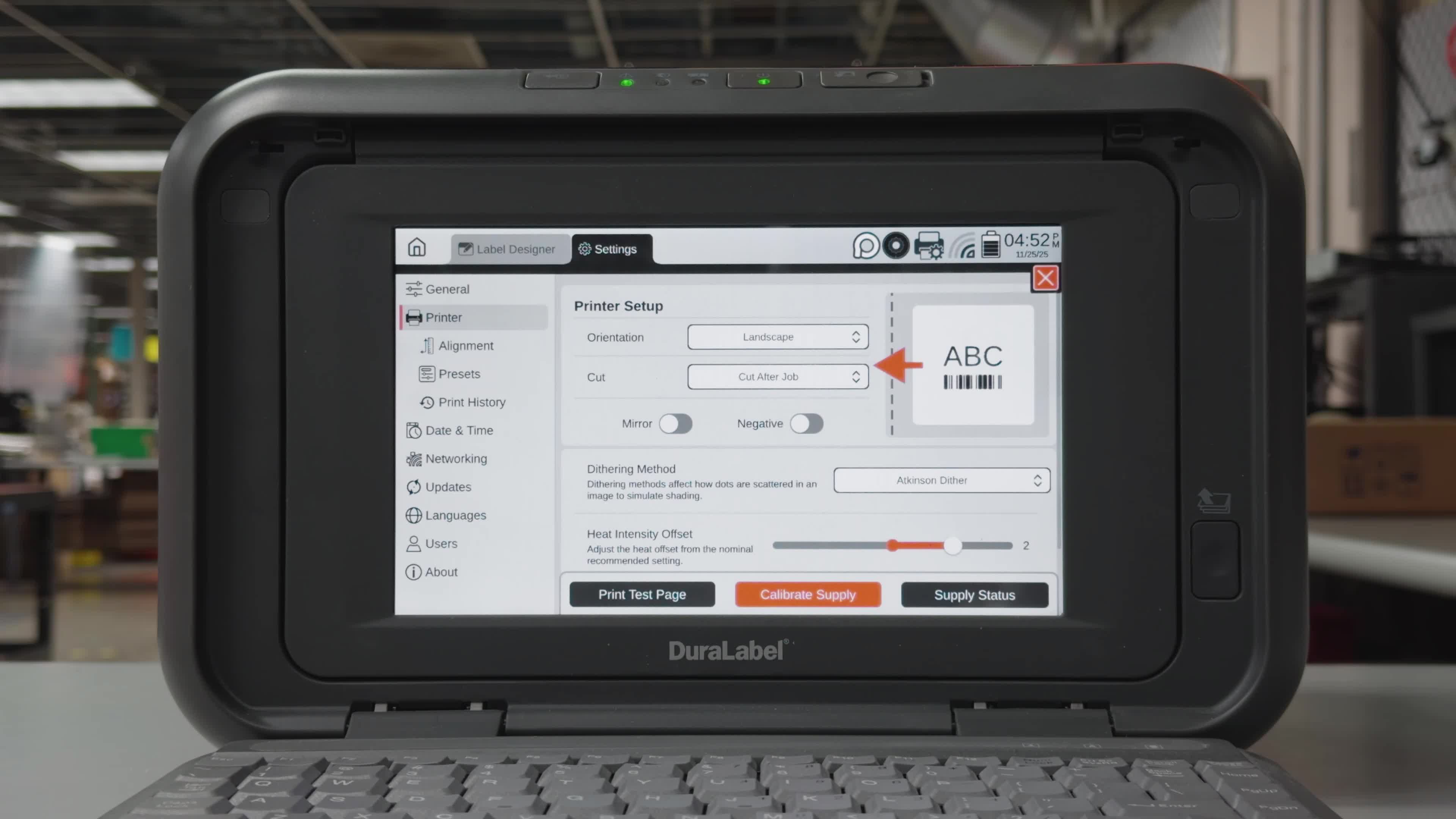

5. Alternative Calibration Method 1:21
-
If no message appears, tap the printer icon in the top right corner.
-
Access the settings and select the 'Calibrate Supply' button at the bottom.

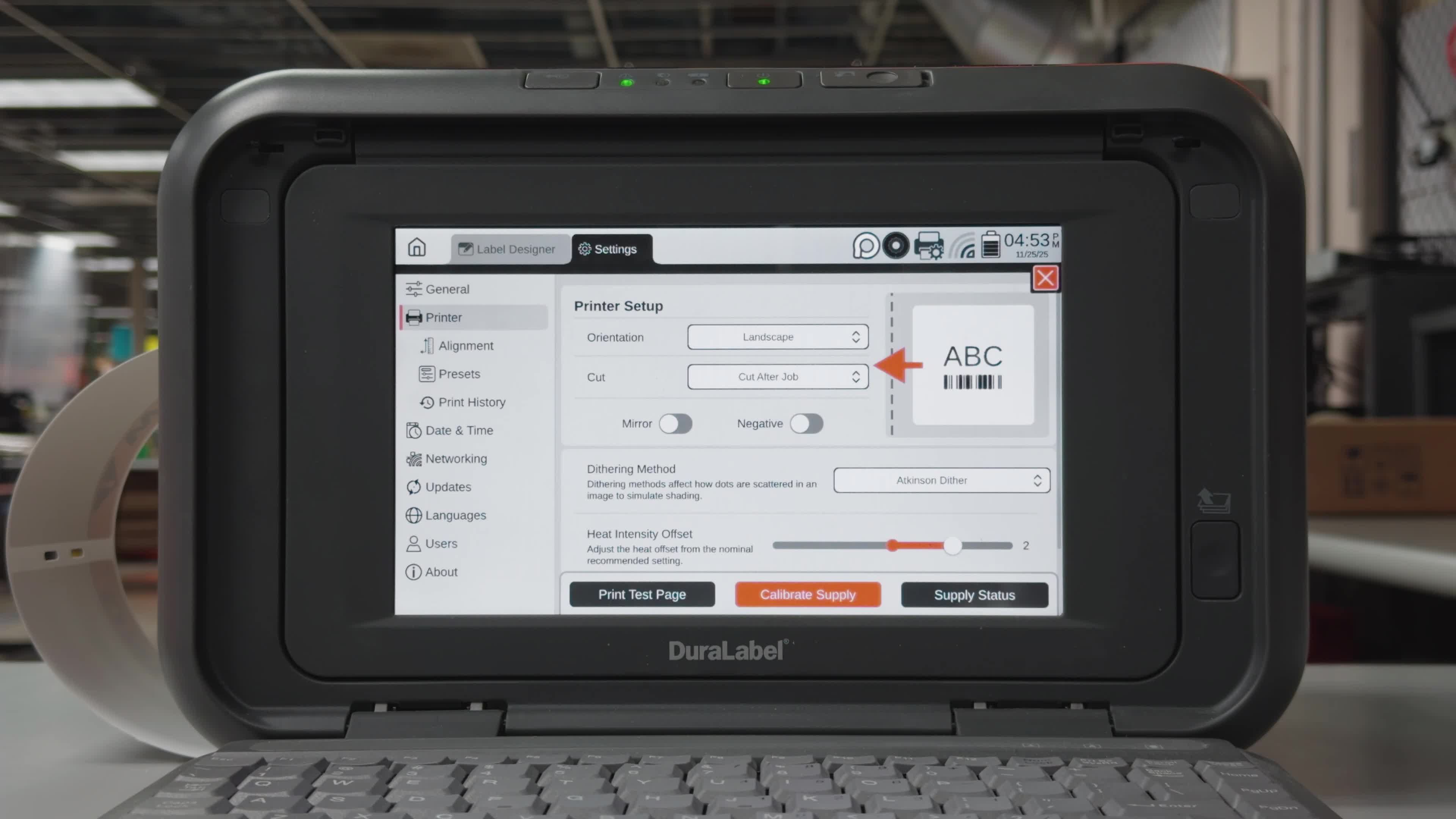

6. Ready to Print 1:33
-
Return to your label design and prepare to print.
-
Ensure calibration is done before printing with specialty supplies to avoid errors.
