In this video, we will walk you through the complete setup of the DuraLabel Kodiak Max Industrial Sign & Label Print System, including safe unboxing, accessory overview, printer tour, vinyl and ribbon loading, powering on the system, connecting to WiFi, navigating LabelForge PRO, and printing your first 2 industrial sign or label. The walkthrough highlights Kodiak Max’s in-house solution, large-format printing, 2 color capability, and ability to create durable safety signs and labels on demand.
Whether you’re setting up your Kodiak Max for the first time or need a quick refresher, this guide will walk you through the full process so you can start creating durable, professional signs and labels with confidence.

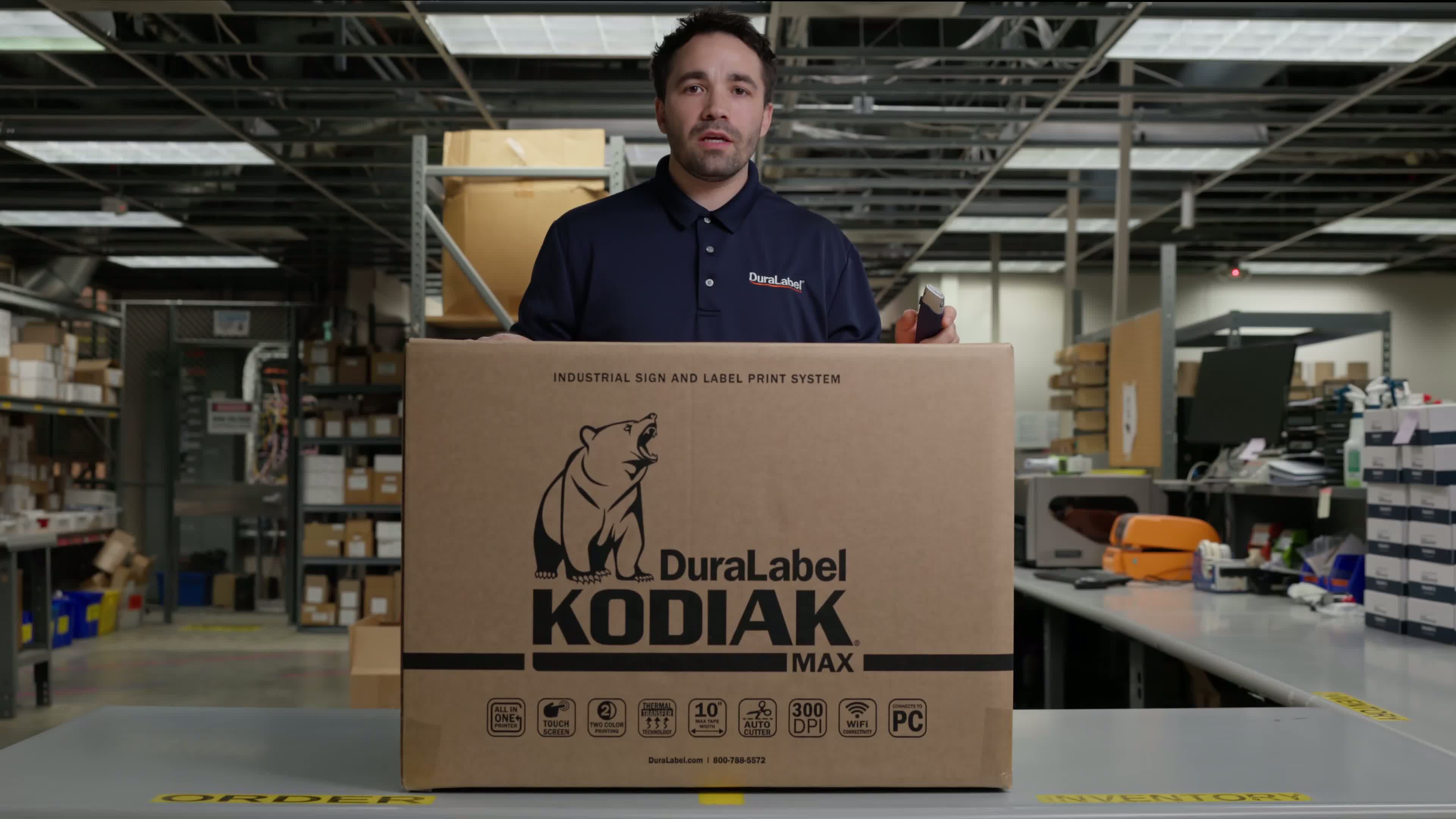

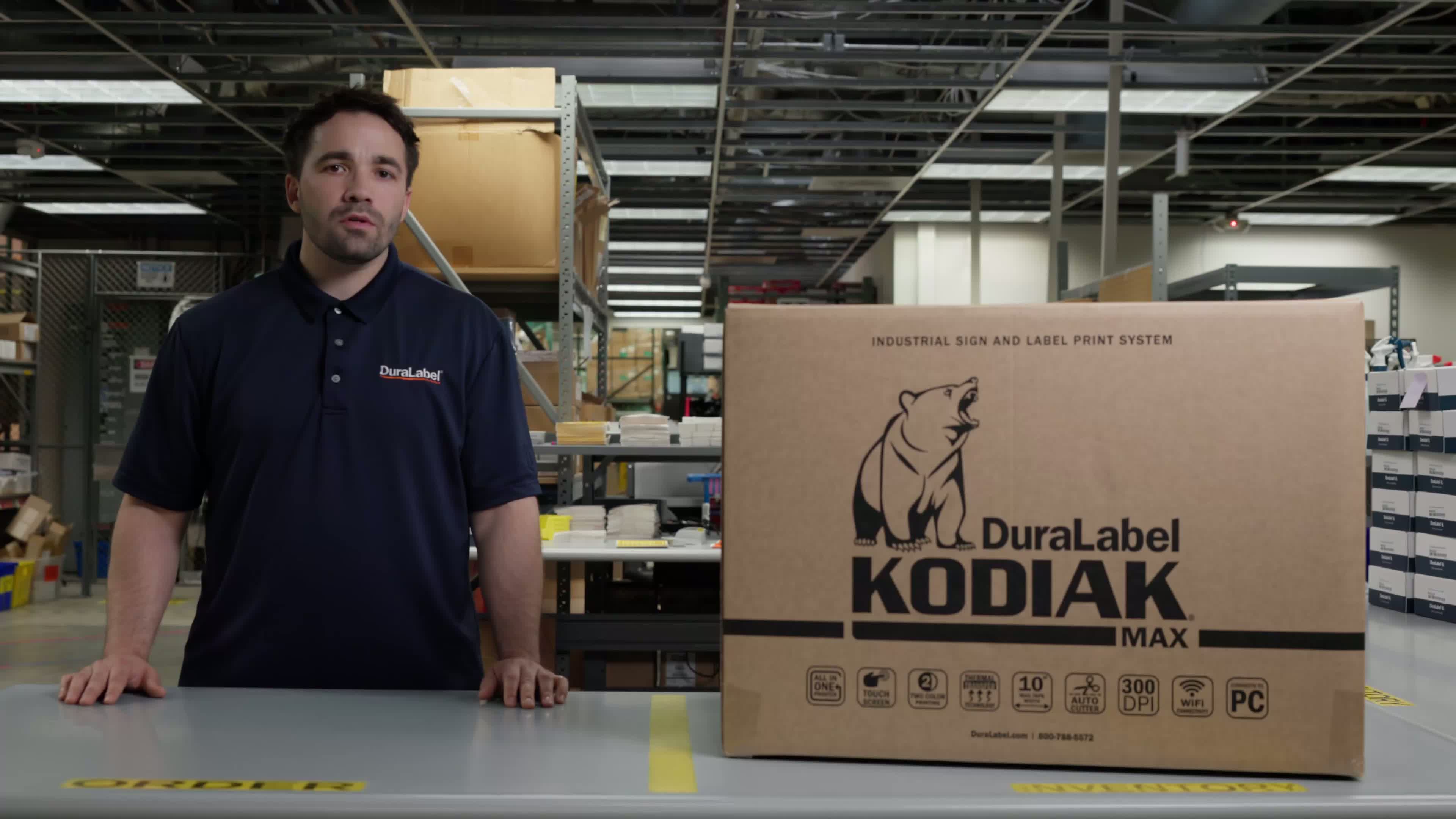

1. Prepare for safe unloading and unboxing 0:24
- Confirm the Kodiak Max is being handled as a heavy industrial print system.
- Use 2 people whenever possible to unload and move the printer.
- Keep the printer supported at all times and do not attempt to remove it from the box alone.
- Gather a box knife and a clear work surface before opening the packaging.

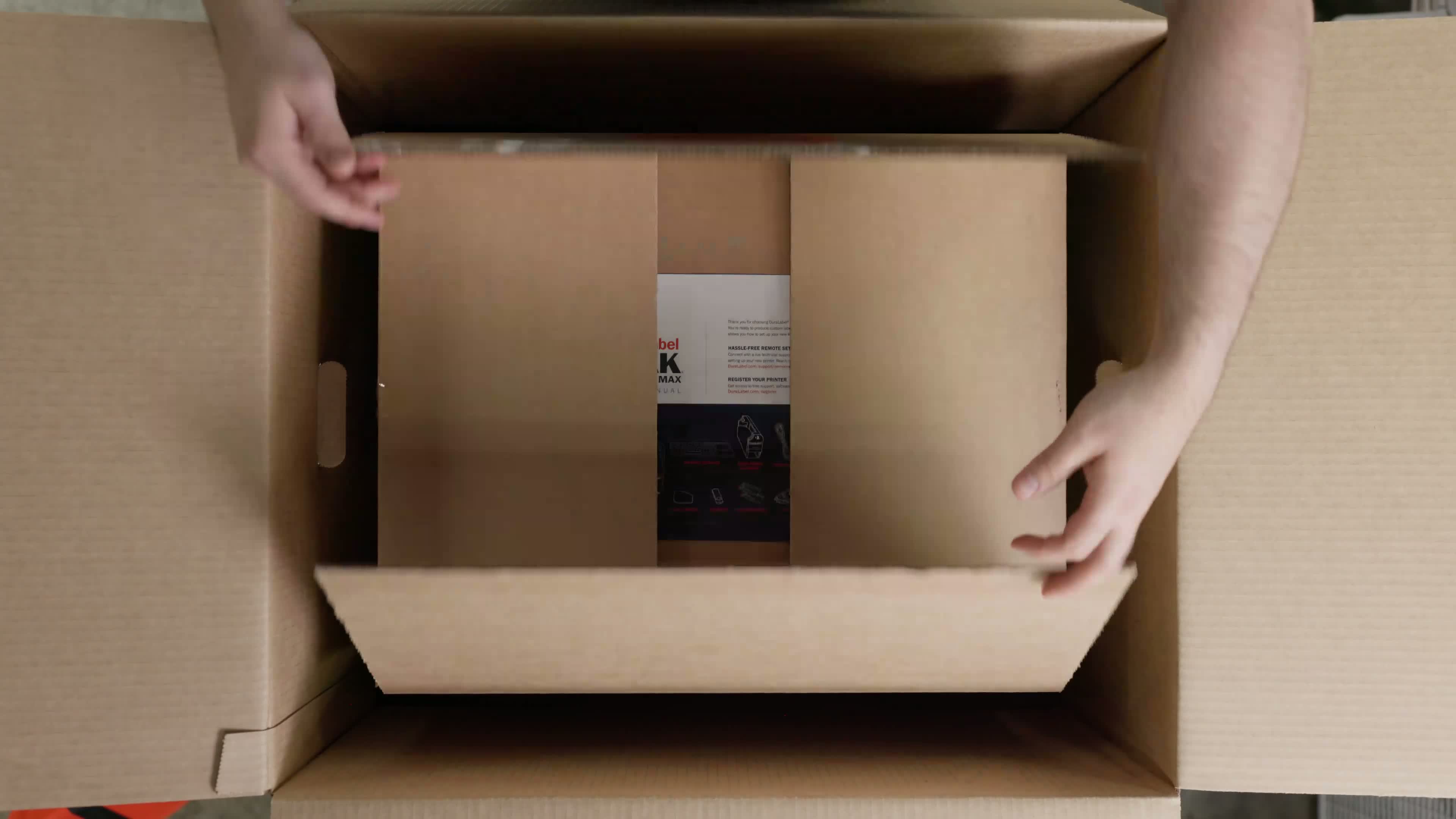

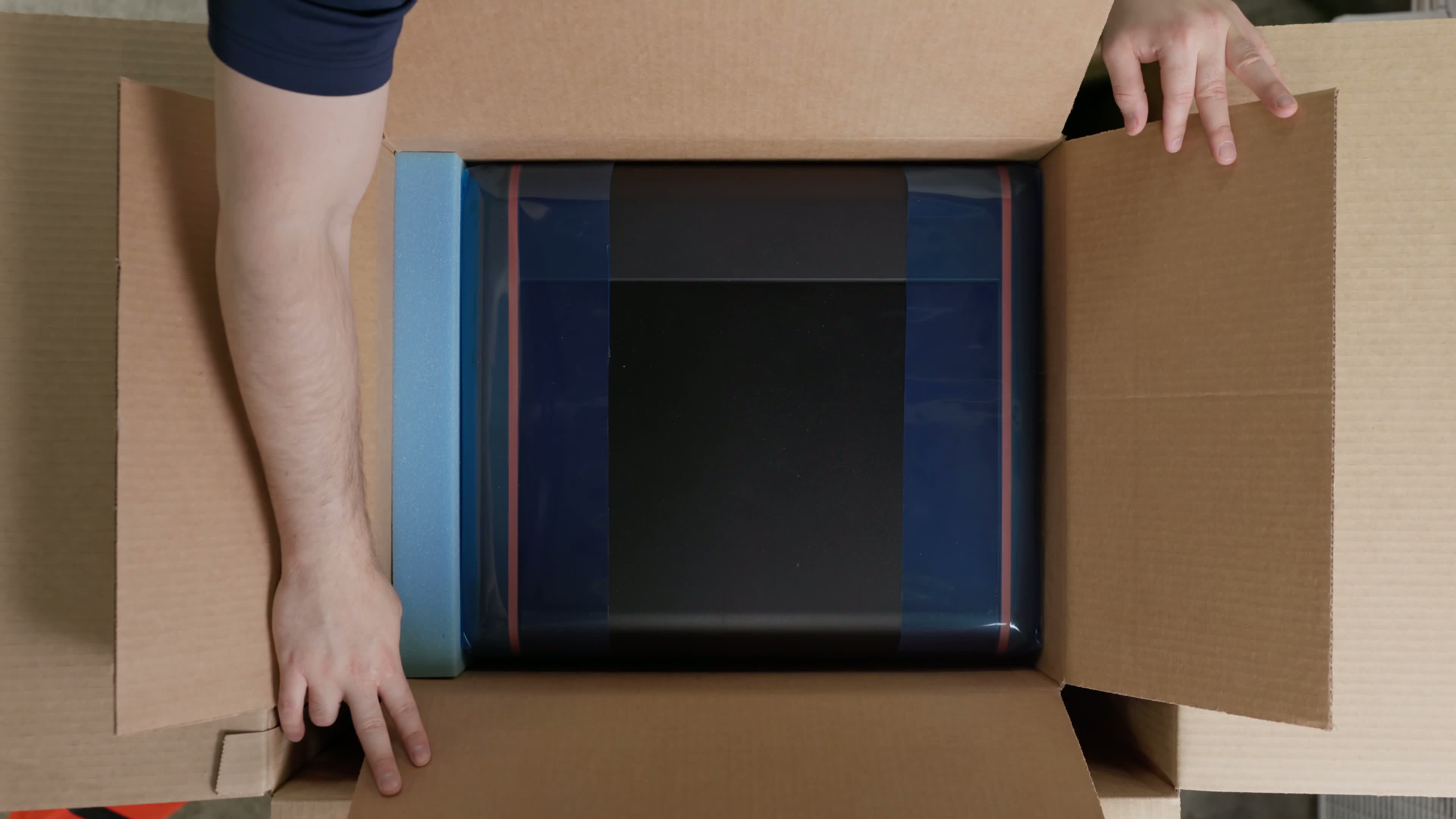

2. Open the outer and inner packaging 0:41
- Cut along the top of the outer box with a box knife.
- Cut both sides of the outer box to fully open it.
- Remove the secondary box and foam inserts from the outer packaging.
- Open the secondary box from the top and sides.
- Remove the foam corner inserts carefully and set them aside.
3. Remove the printer and review included documentation 1:21
- Locate the Quick Start Manual first and review it for setup, registration, supply loading, and LabelForge PRO printing guidance.
- Remove the accessory bag and set it aside for later use.
- With two people, lift the Kodiak Max out of the packaging carefully.
- Remove any protective film and foam inserts from the printer before placing it on a work surface.

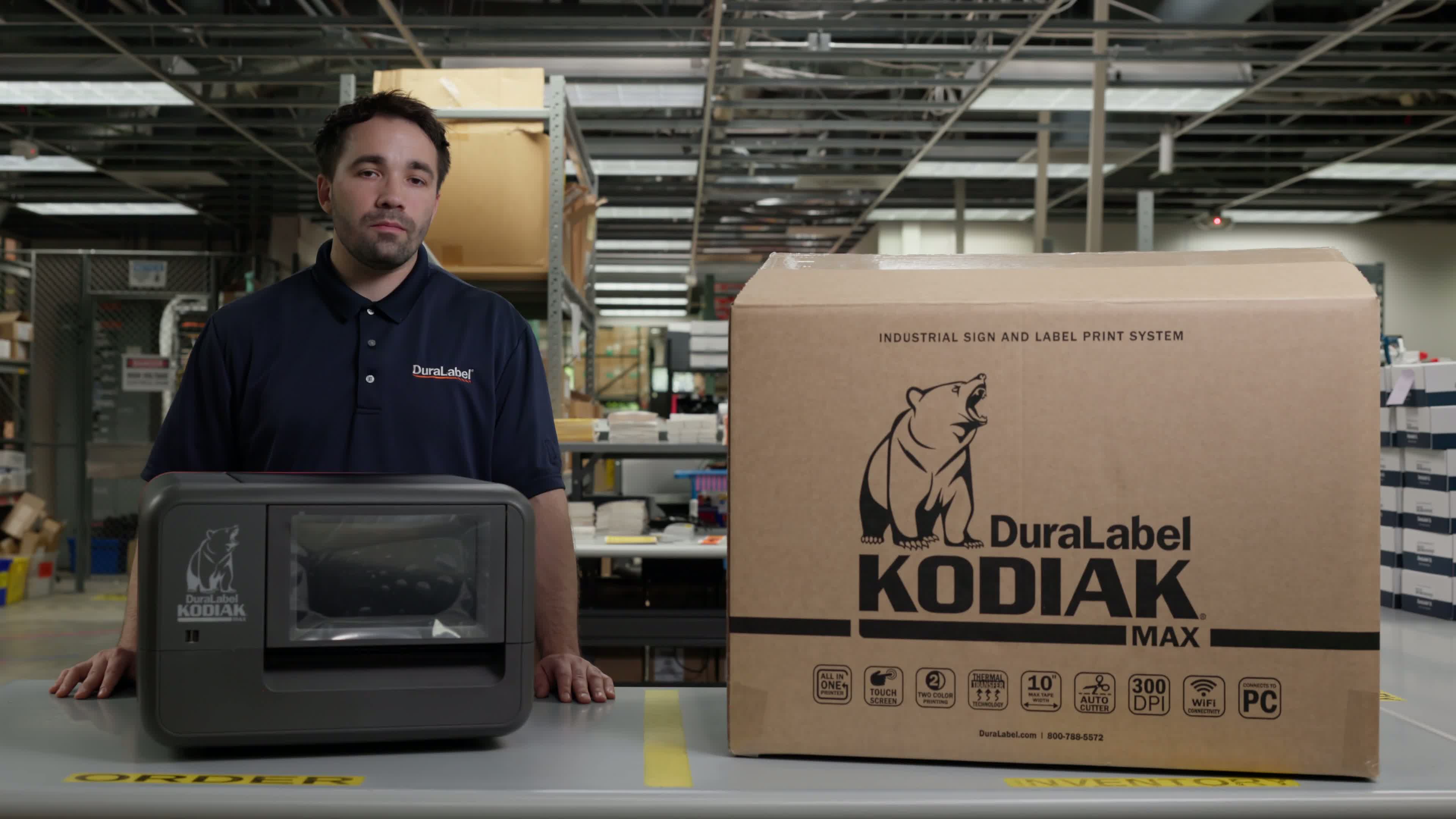

4. Place the printer on a stable work surface 2:03
- Set the printer on a sturdy desk, workstation, or cart.
- If using a cart, confirm it is stable and rated to support the printer.
- Roll the cart only after confirming the printer is secure and the destination area is ready.
5. Identify the printer controls and connection points 2:17
- Review the front panel: 9-inch full-color touchscreen and USB ports.
- Note that the touchscreen is used to create signs and labels in LabelForge PRO.

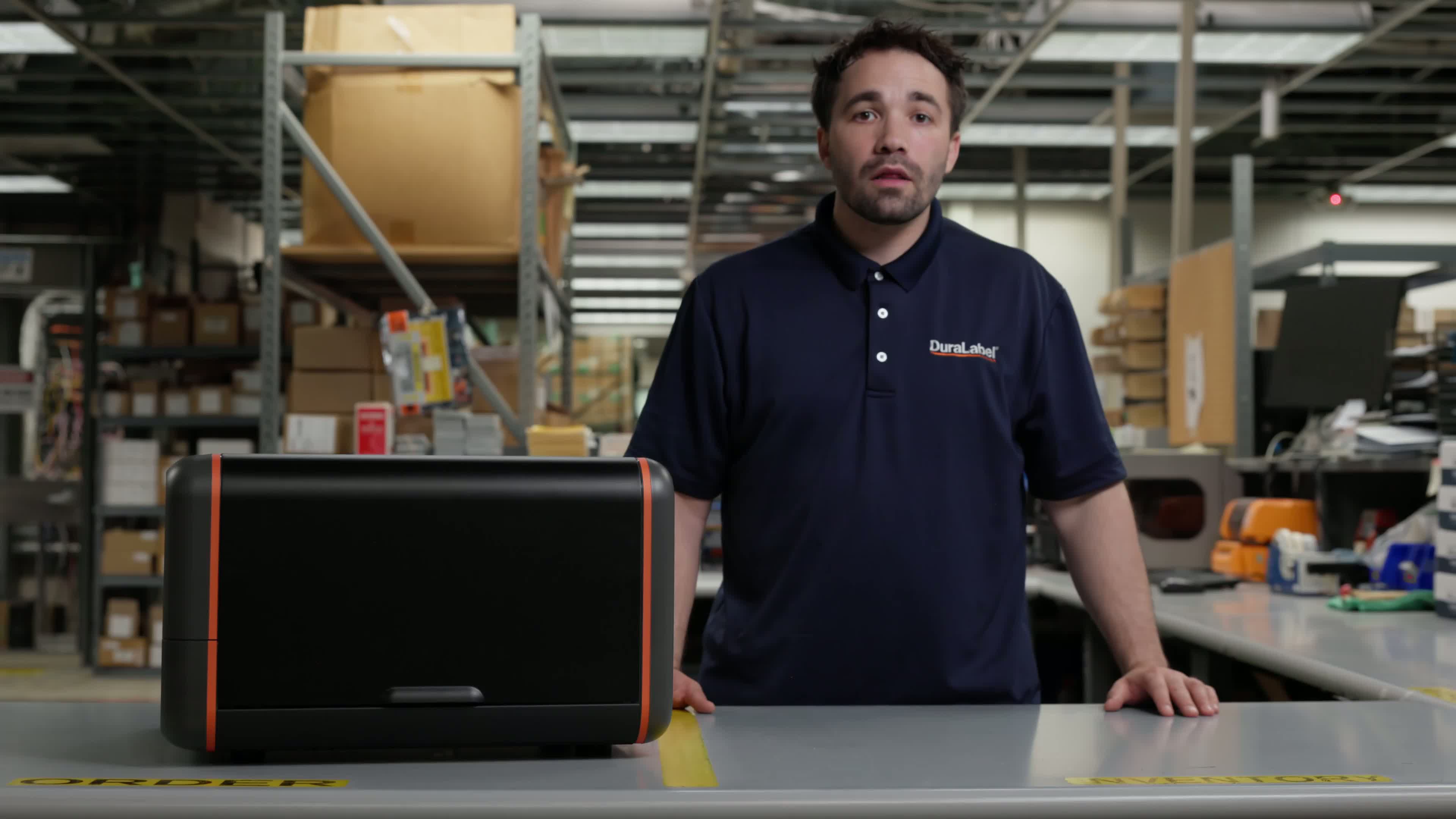

- Review the back panel: power cord connection, power switch, Ethernet connection, and network cable connection to a PC.
- Locate the rear USB connections for the Wi-Fi adapter and the wireless keyboard receiver.

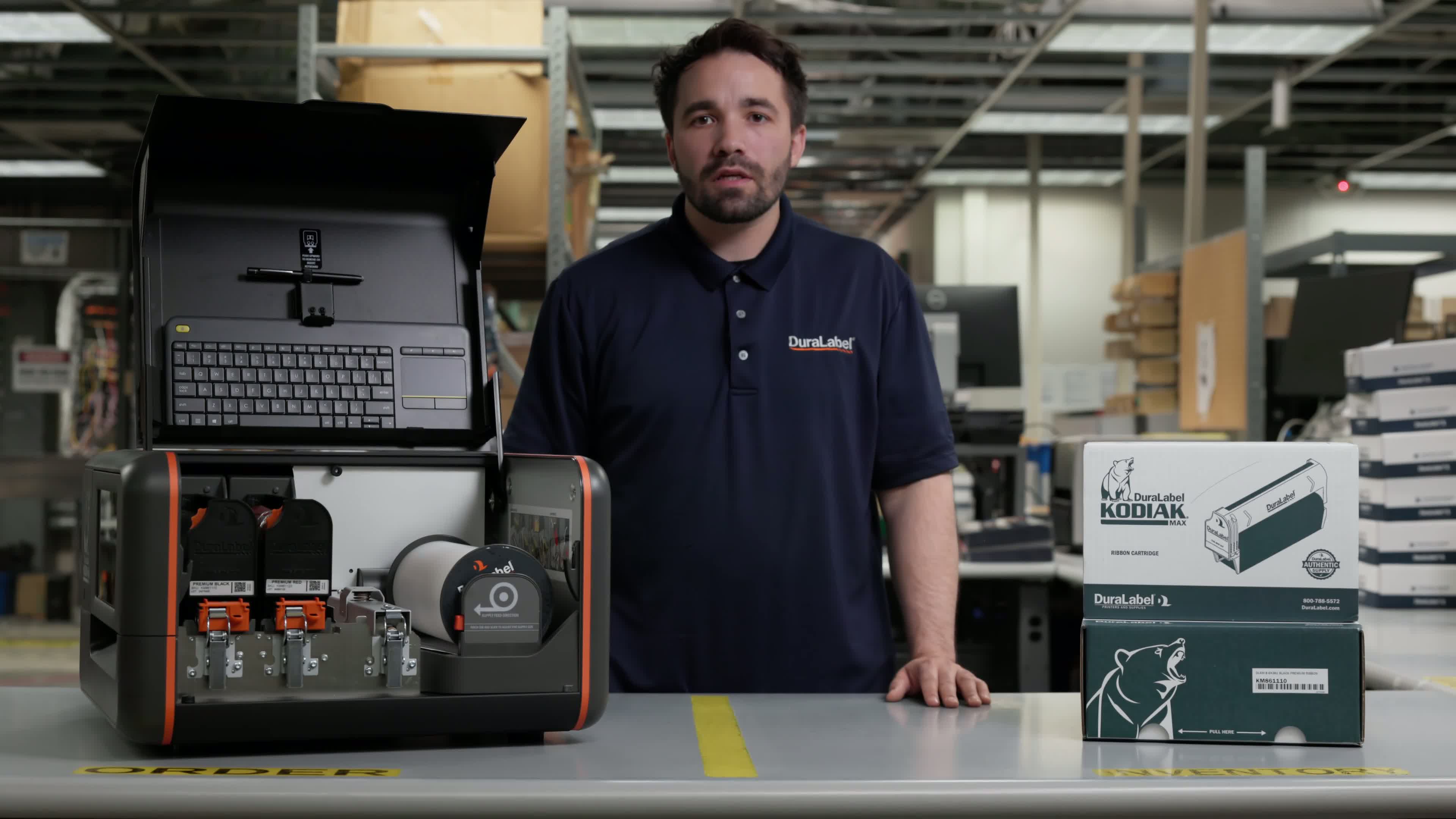

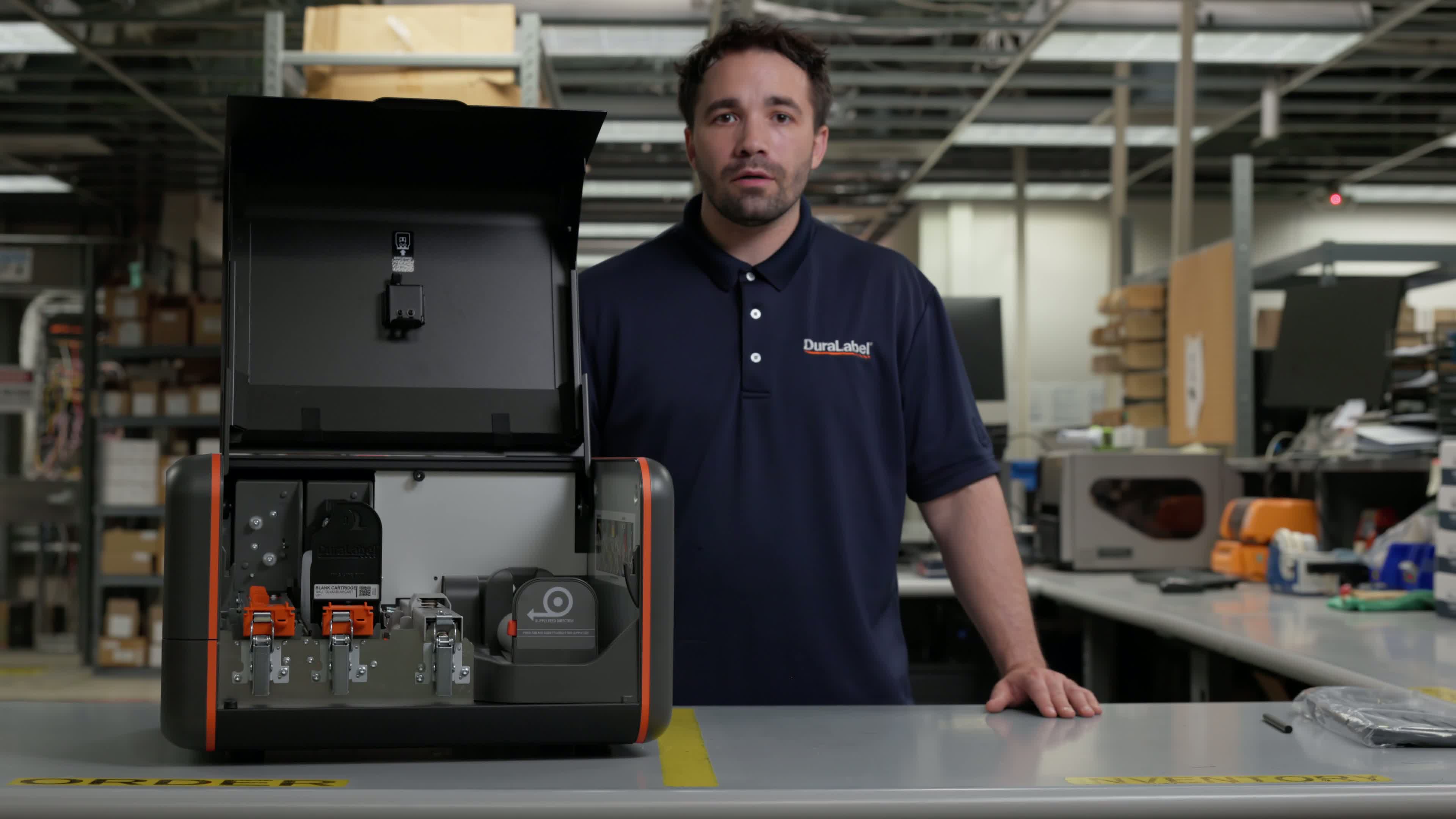

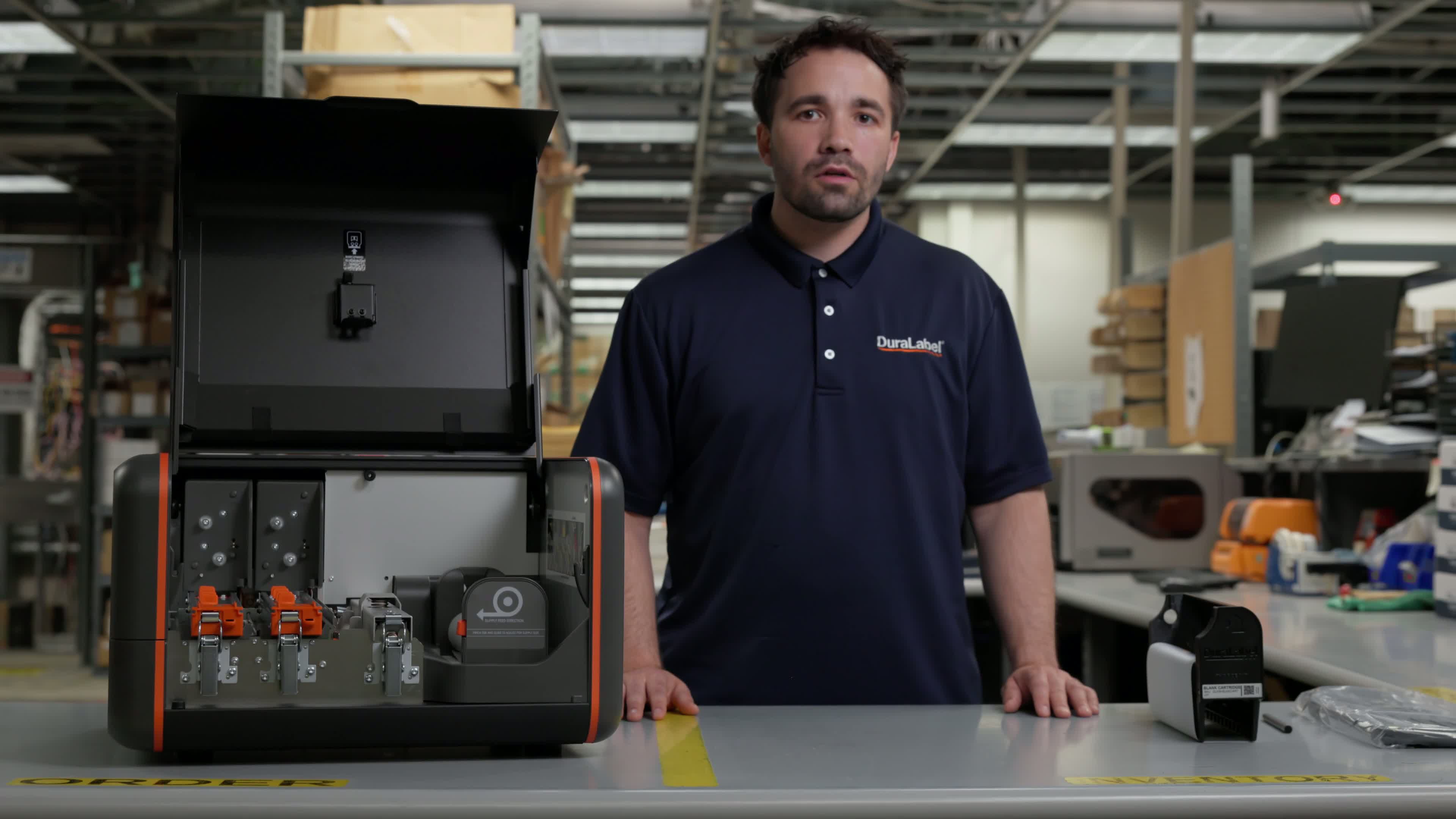

6. Open the printer and inspect the interior 3:14
- Lift the lid to access the interior.
- Remove the wireless keyboard and stylus from the top area.
- Identify the supply well where premium vinyl is loaded.
- Locate the tape guides, quick load ribbon cartridge area, and cutter area.
- Understand that the cutter automatically trims labels after printing.
7. Understand ribbon cartridge setup and loading rules 3:55
- Recognize that the printer includes a blank quick load ribbon cartridge for single-color printing.
- Use the blank cartridge only on Print Head 1 when printing one-color signs.
- For two-color printing, use the appropriate colored ribbon cartridges on the correct print heads.
- Before loading supplies, ensure the printer is powered off and in the correct loading state.
- Avoid touching the print heads directly.

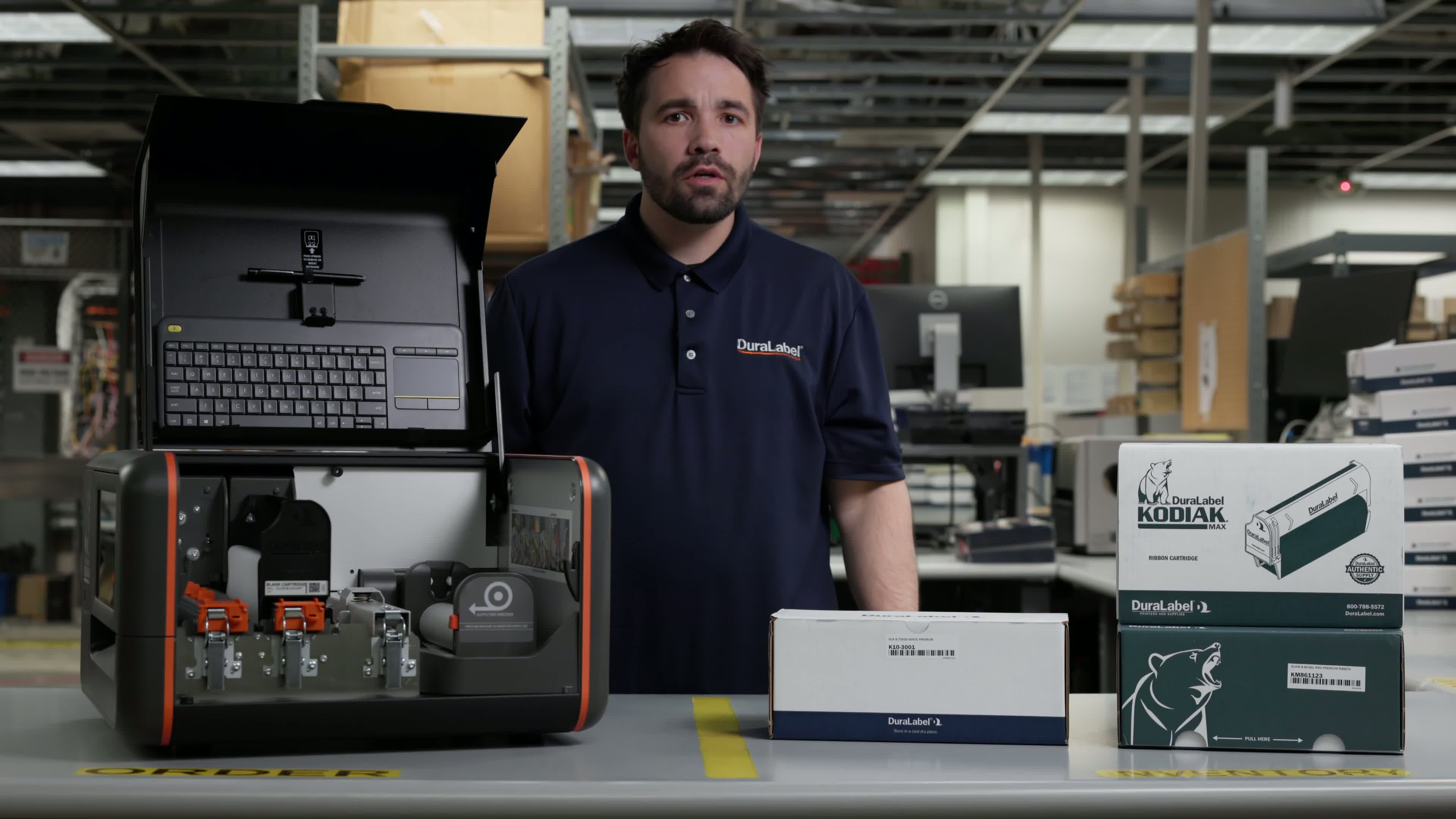

8. Review supported supply types and applications 4:26
- Confirm the printer supports premium vinyl supply from 4 to 10 inches wide.
- Use compatible premium vinyl and quick load ribbon cartridges sold separately, unless included in your kit.
- Use the system for industrial applications such as:
- GHS chemical labels
- OSHA and ANSI signs
- Wayfinding signage
- Equipment labels
- Use approved supplies for indoor, outdoor, hot, cold, wet, or dry environments.

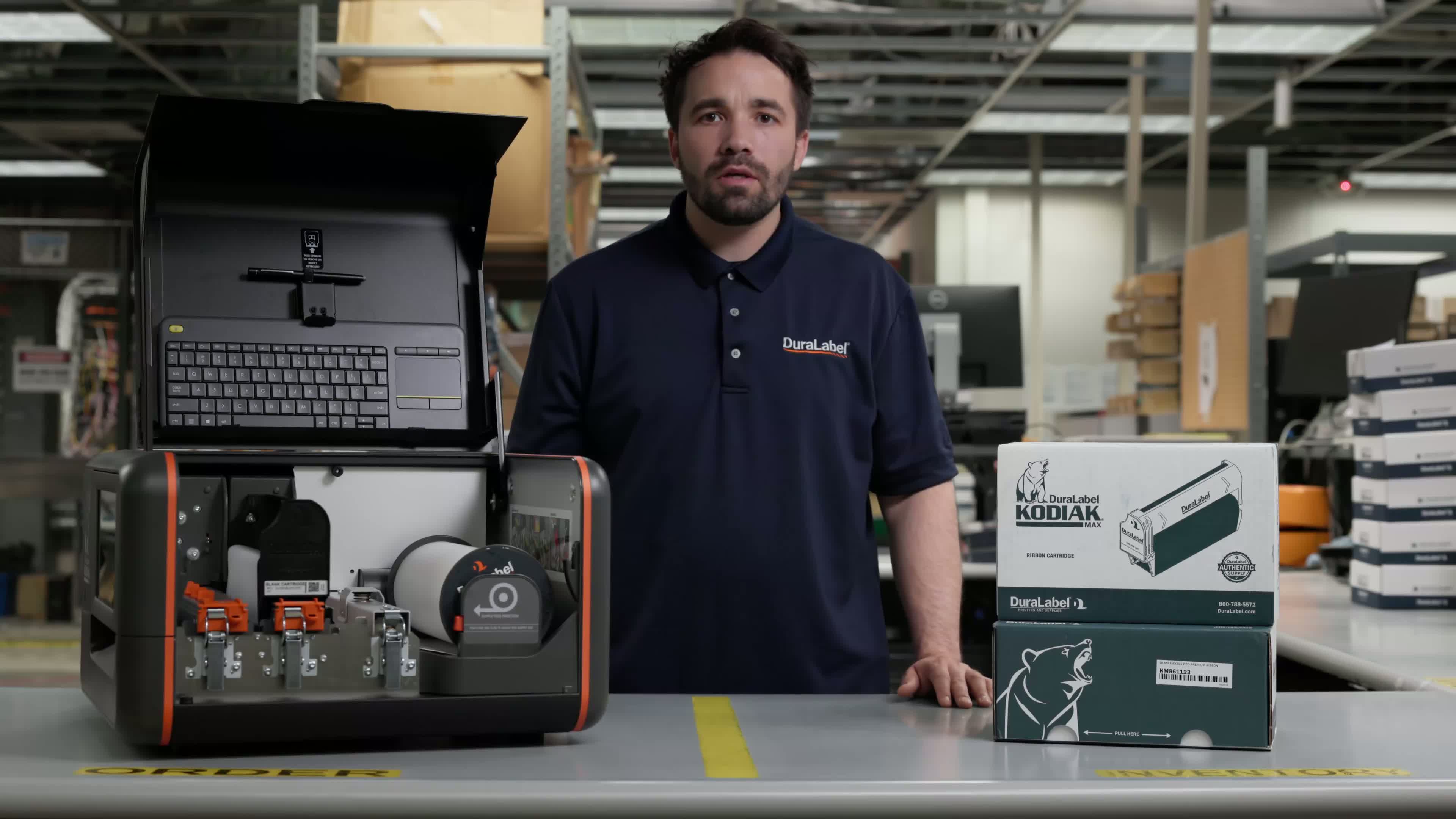

9. Inventory the included accessories 5:11
- Verify the contents of the package against the Quick Start Manual and packing list.
- Confirm you have the following items:
- Blank quick load ribbon cartridge
- Wireless keyboard
- USB network cable for PC connection
- Power cord
- USB flash drive with LabelForge PRO and PC driver information
- Label scraper
- Stylus
- 4-inch cleaning swabs
- Note that the keyboard batteries and USB receiver may already be pre-installed.
10. Load the premium vinyl supply 6:51
- Confirm the premium vinyl supply and ribbon cartridges are available; these may be sold separately depending on the order.
- Remove any tabs or packaging from the vinyl roll.
- Place the vinyl into the supply well with the DuraLabel sticker facing outward.
- Extend the supply within the 4-inch to 10-inch width range.
- Unlatch the feed roller bar, feed the vinyl past the yellow sticker and tape guides, then secure the feed roller bar and latch.

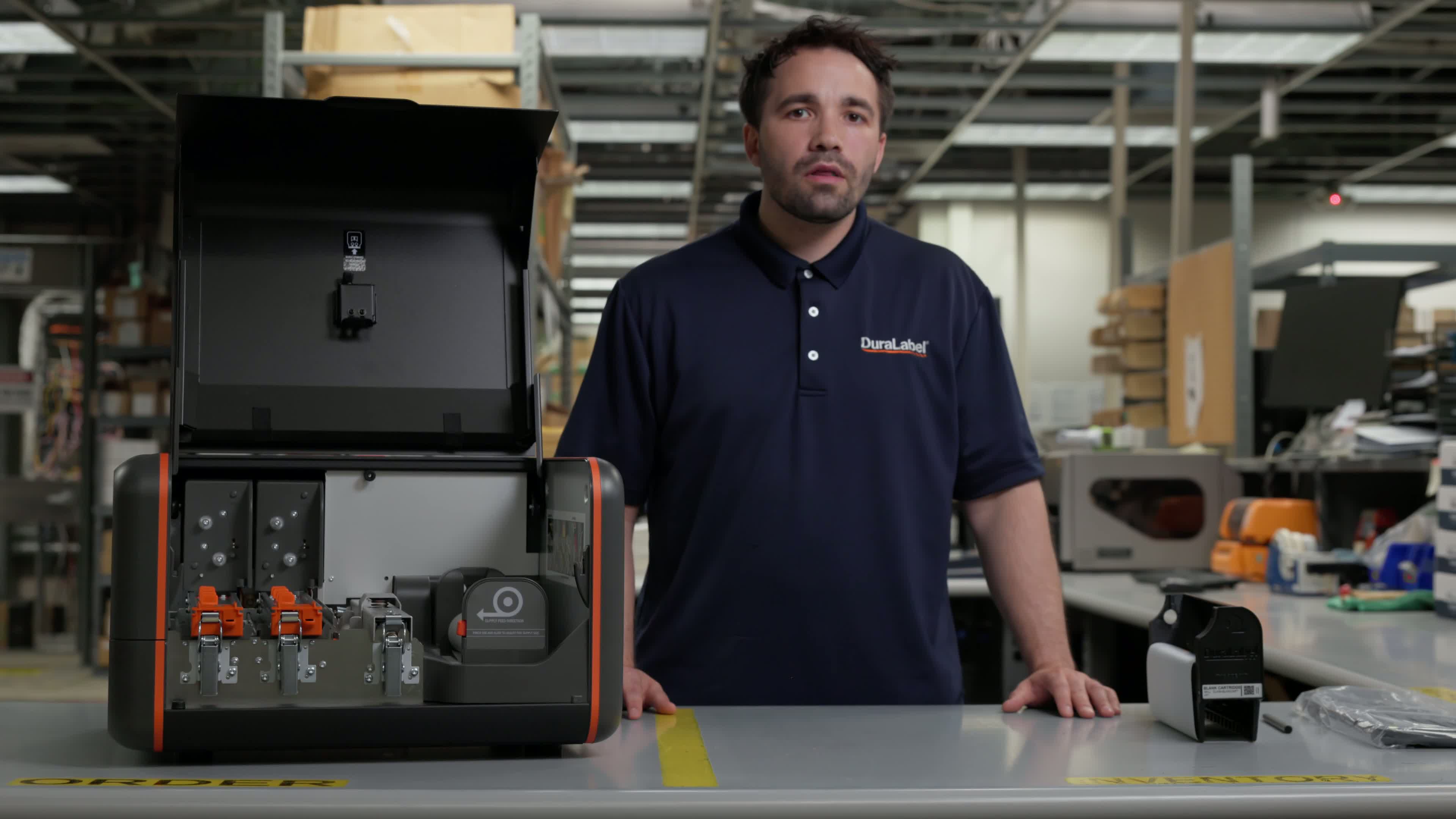

11. Install the ribbon cartridges for two-color printing 8:08
- For a two-color print, remove the blank ribbon cartridge from Print Head 1.
- Lift the cartridge until it clicks, remove it, and set it aside.
- Open the red ribbon cartridge box and remove the cartridge.
- Check orientation: the sticker should face toward the open lid side of the printer.
- Install the red cartridge on Print Head 1, secure it, and close the latch.
- Open the black ribbon cartridge box, remove packaging cardboard, and install the black cartridge on Print Head 2 using the same orientation rule.
- Secure Print Head 2 by lifting until it clicks, lowering it gently, and closing the latch.
12. Close the printer and power it on 10:18
- Close the printer lid after supplies are loaded and secured.

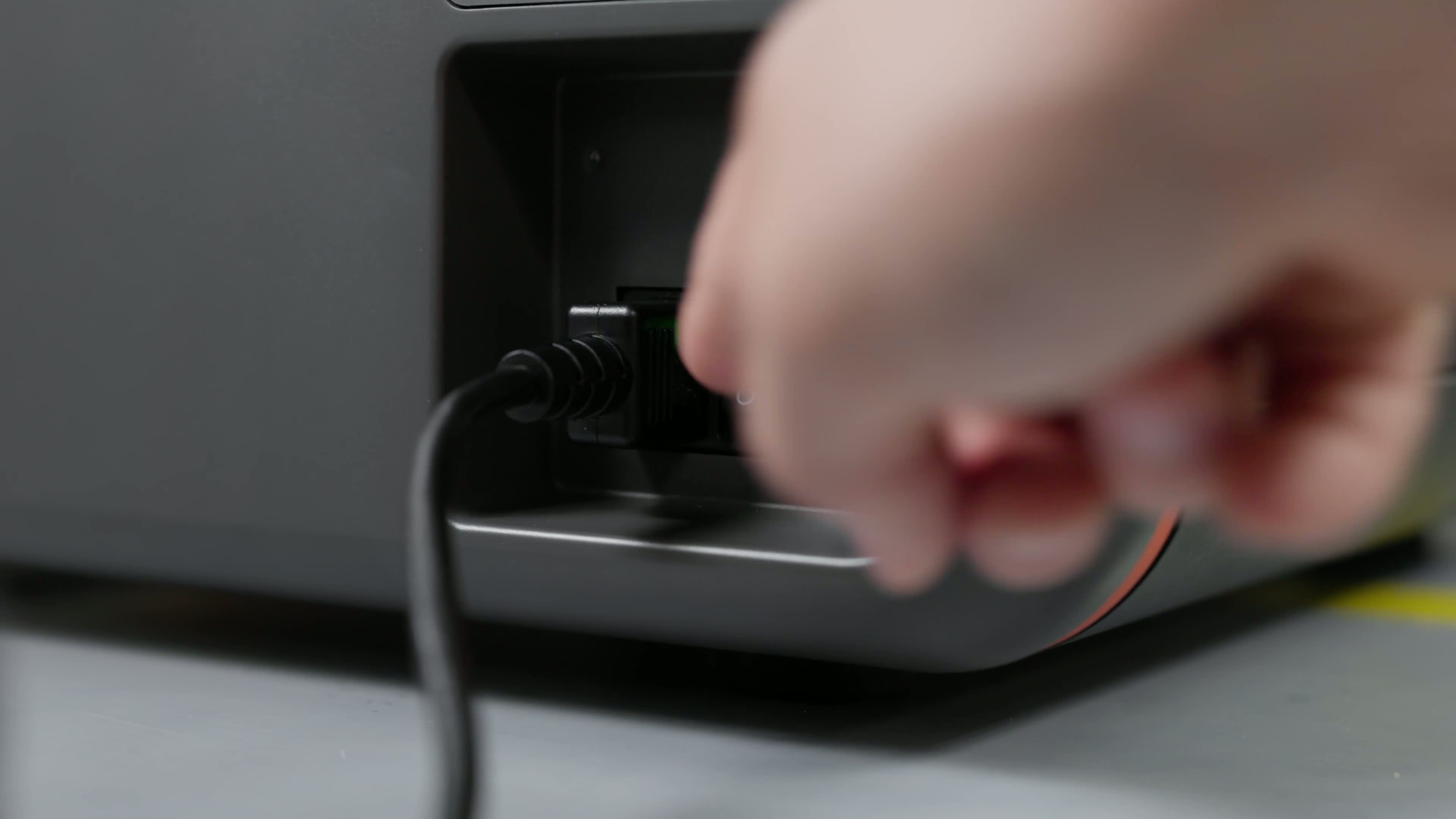

- Plug the power cord into the printer and then into a nearby outlet.
- Turn on the power switch located next to the power socket.
- Confirm the printer powers on when the green light appears.
13. Complete initial device setup 11:03
- Turn on the wireless keyboard using the switch at the top.
- Use the keyboard as a touchpad/mouse for setup navigation.
- Select the correct language and keyboard layout.
- Confirm the keyboard connection.
- Enter the required setup information and proceed to network setup.
- Connect the printer to the wireless network.
- Review the system update screen and install updates if prompted.
- Select Finish to enter LabelForge PRO.

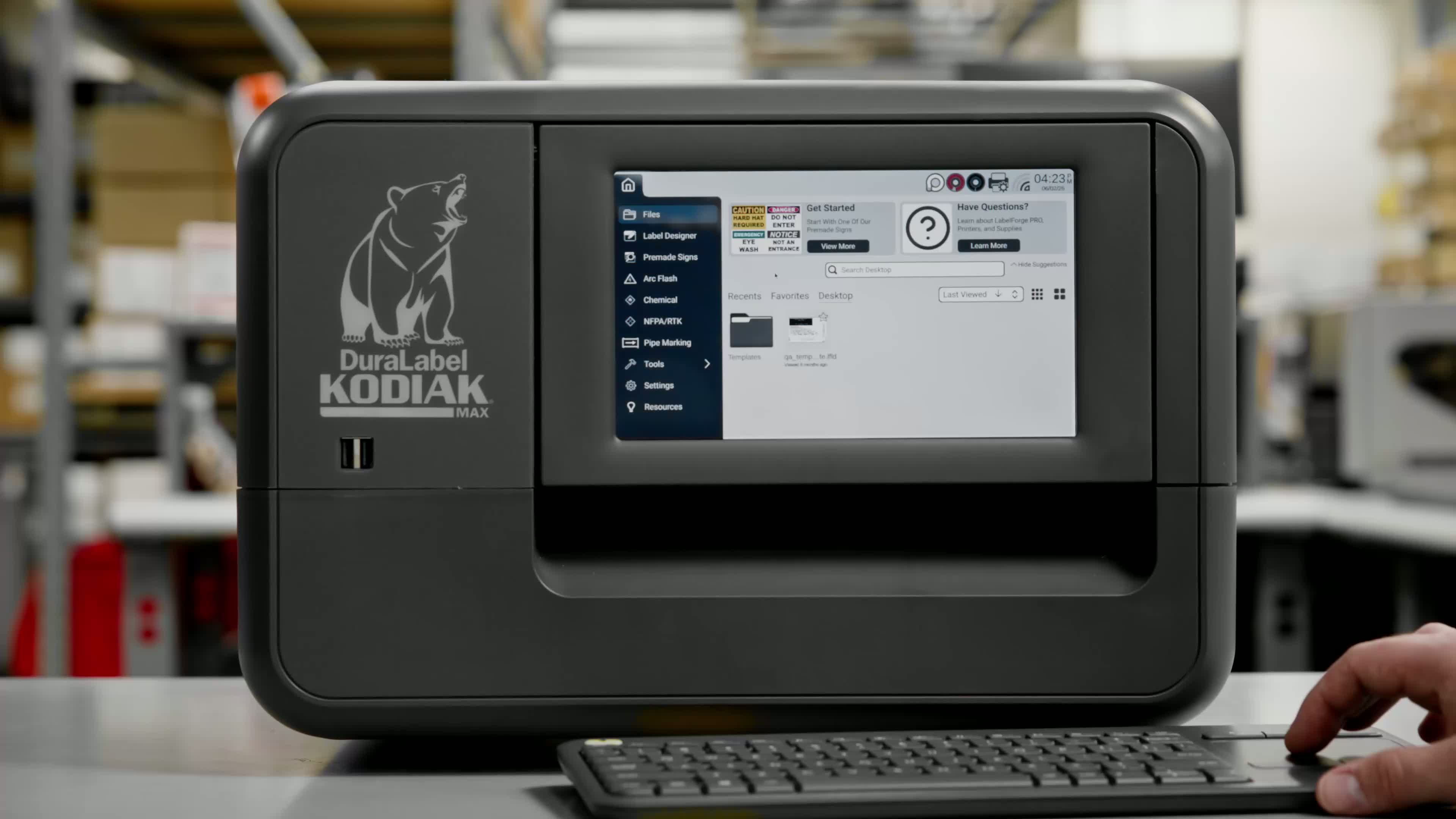

14. Open LabelForge PRO and choose a template 12:52
- From the LabelForge PRO home screen, review the available modules and recent templates.
- Select Premade Signs Library for the first print.
- Use the search bar to find the desired sign template, such as a parking-related sign.
- Choose the template that matches the loaded supply and ribbon colors.
- When prompted to create a new label, verify the supply settings match the installed vinyl.

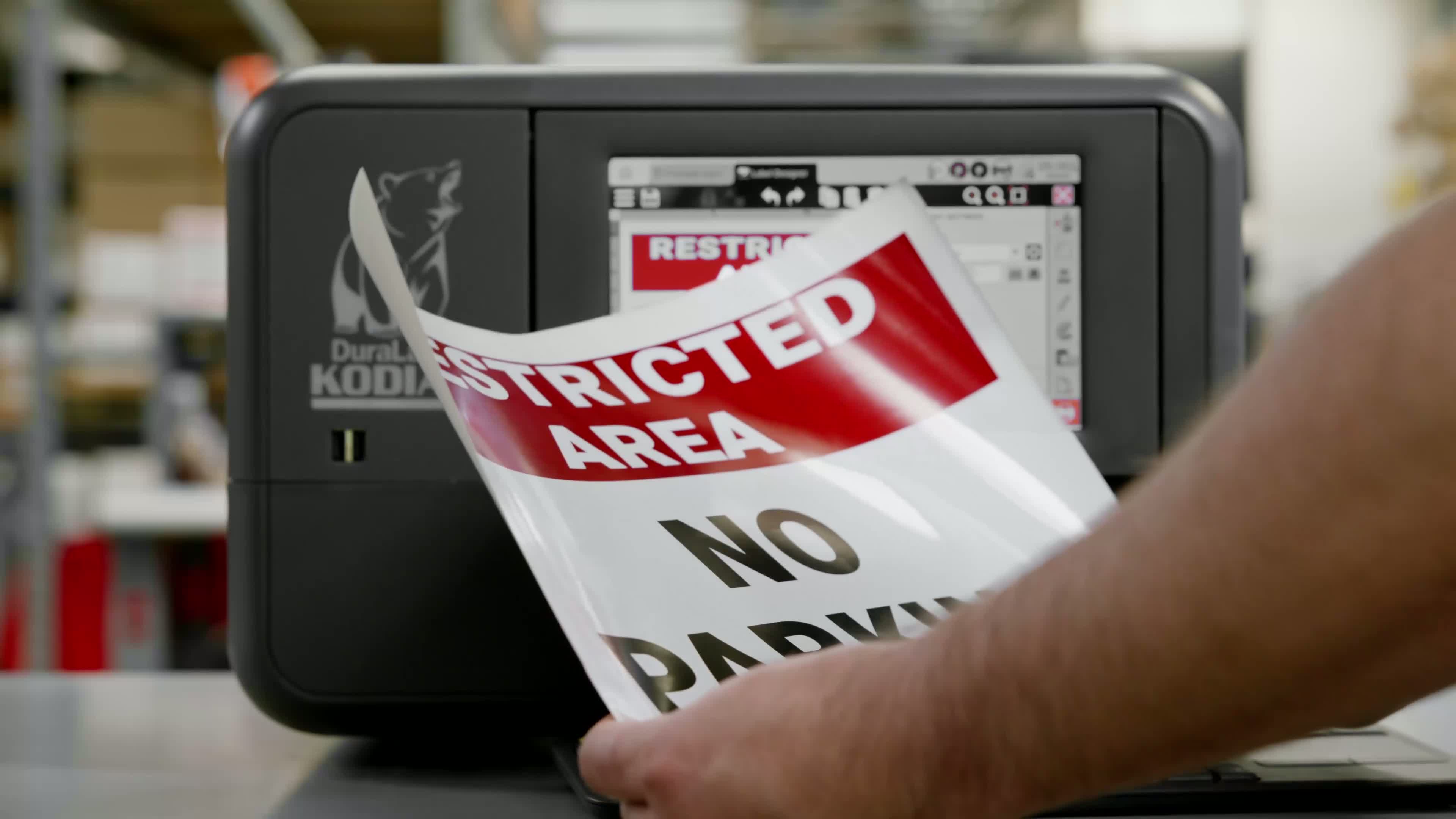

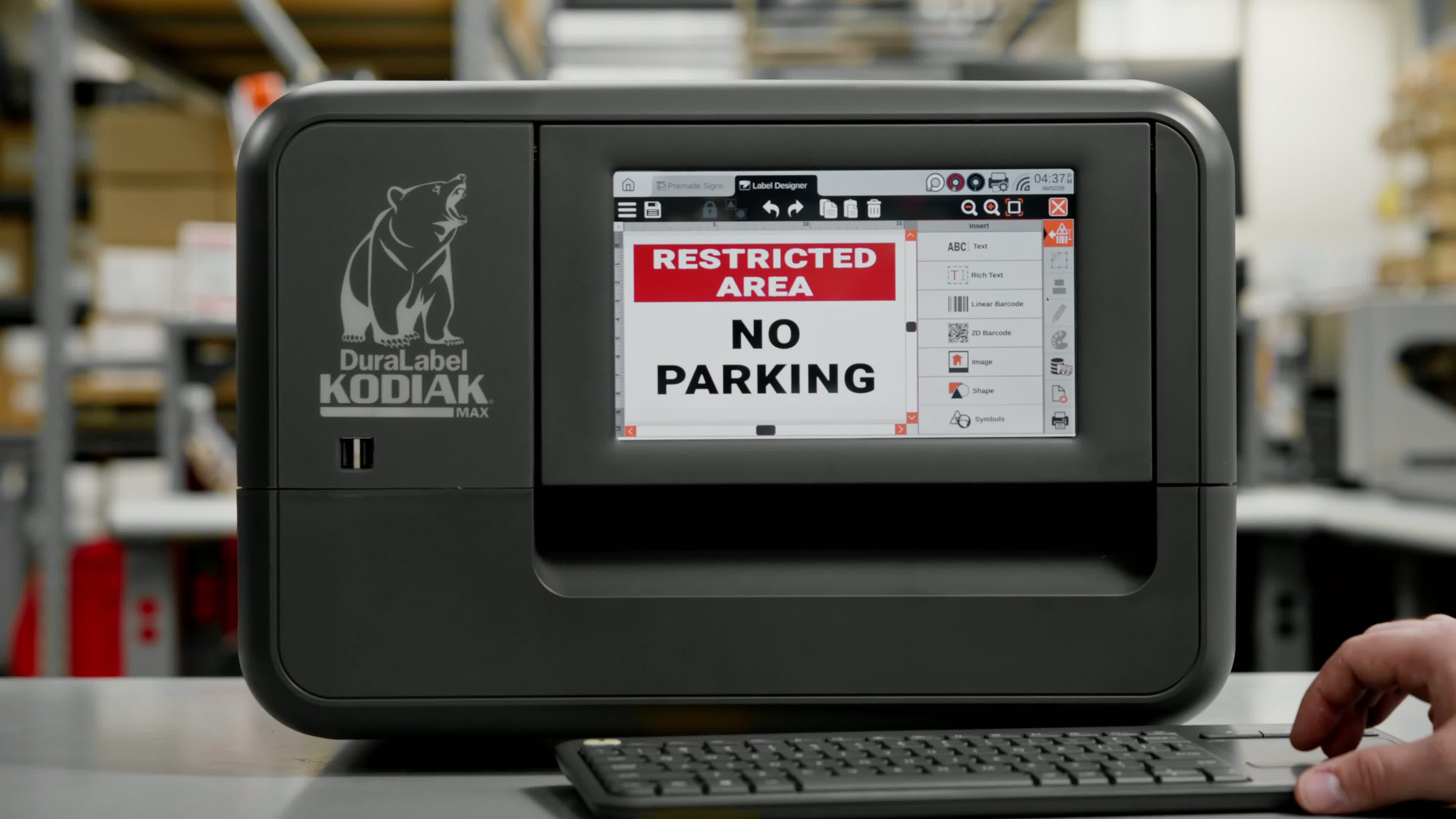

15. Print the first sign 13:58
- Open the selected template and confirm the layout is correct.
- If needed, customize text, symbols, or layout before printing.
- If printing the template as-is, proceed to the printer icon.
- Select the printer icon, open Print Settings, and confirm Kodiak Max is selected.
- Click Print.
- Allow the automatic cutter to trim the finished sign after printing.
16. Verify the completed print and next steps 14:32
- Confirm the printed sign is complete, legible, and properly cut.
- Review the final output for correct color contrast and size.
- Store the printer knowledge resources for future use:
- User Guide
- Product Knowledge Base
- DuraLabel Support
- Use the system for on-demand in-house sign production as needed.
Cautionary Notes
- Two-person lift recommended: The Kodiak Max is heavy; do not remove or move it alone when possible.
- Power off before loading supplies: Always ensure the printer is off and in the correct loading state before handling vinyl or ribbon.
- Do not touch print heads directly: Handle cartridges carefully to avoid damage or injury.
- Confirm cartridge orientation: Incorrect ribbon orientation can cause print issues.
- Match supplies to the job: Verify vinyl width, ribbon color, and template settings before printing.
- Use a stable surface or cart: The printer must be placed on a secure workstation or cart that can safely support its weight.
