Welcome to a basic walkthrough of the NFPA and RTK Module in LabelForge PRO, showing how to select between NFPA diamonds and RTK color bar formats and switch between them at any time. It demonstrates how to search chemical records, adjust ratings, update signal words, and add health hazards, organ hazards, PPE symbols, and comments.
The tutorial also explains how template sizes differ between NFPA and RTK formats and how to choose the correct template depending on whether your RTK supply includes an NFPA diamond. For users who need an SDS-driven and step-by-step approach.
1. Open the NFPA Module 0:23
-
Launch the LabelForge PRO software.
-
Select the NFPA label type from the module options.

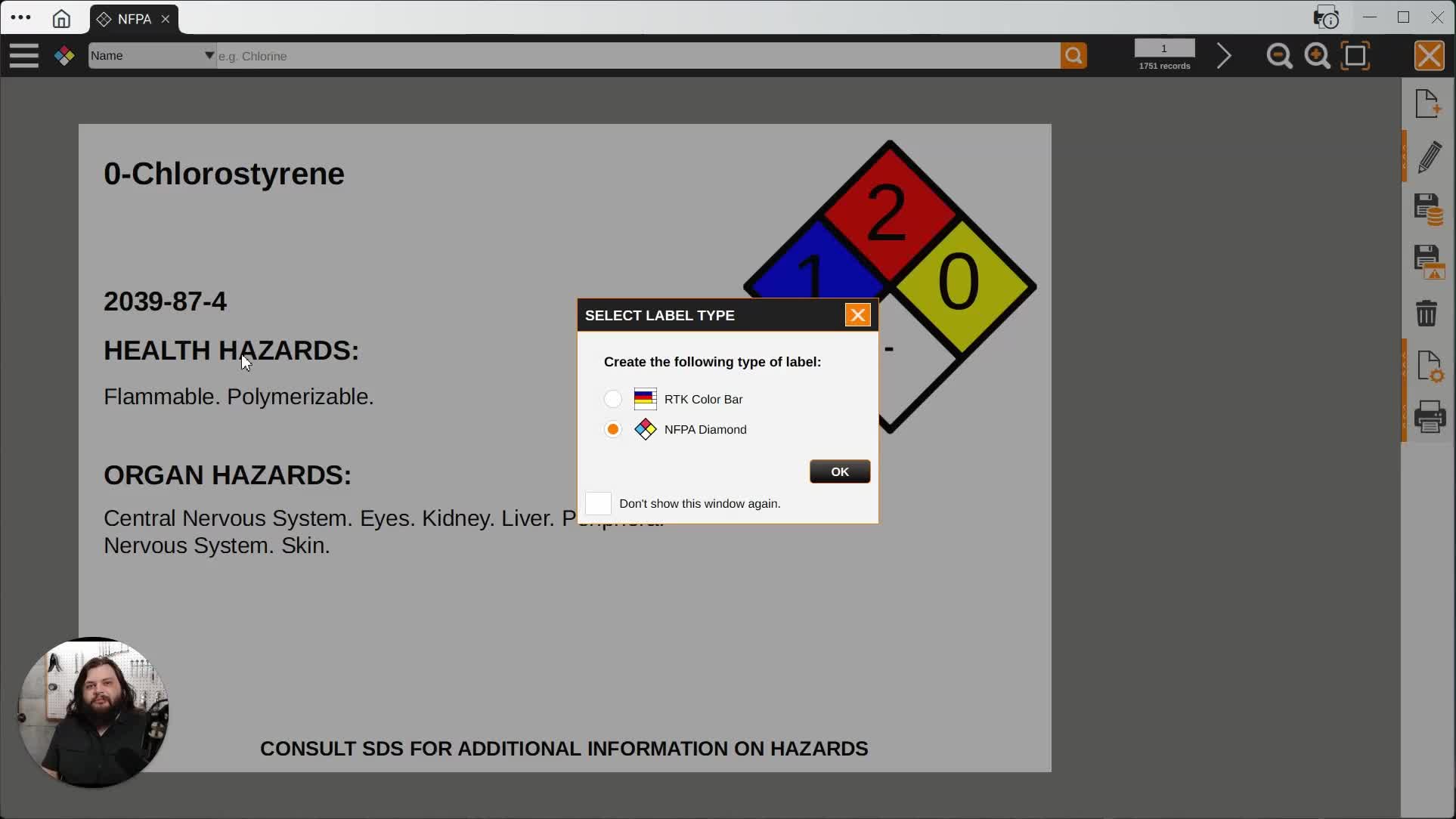

2. Select Label Type 0:30
-
Choose between NFPA and RTK options.
-
Click 'OK' to confirm your selection.

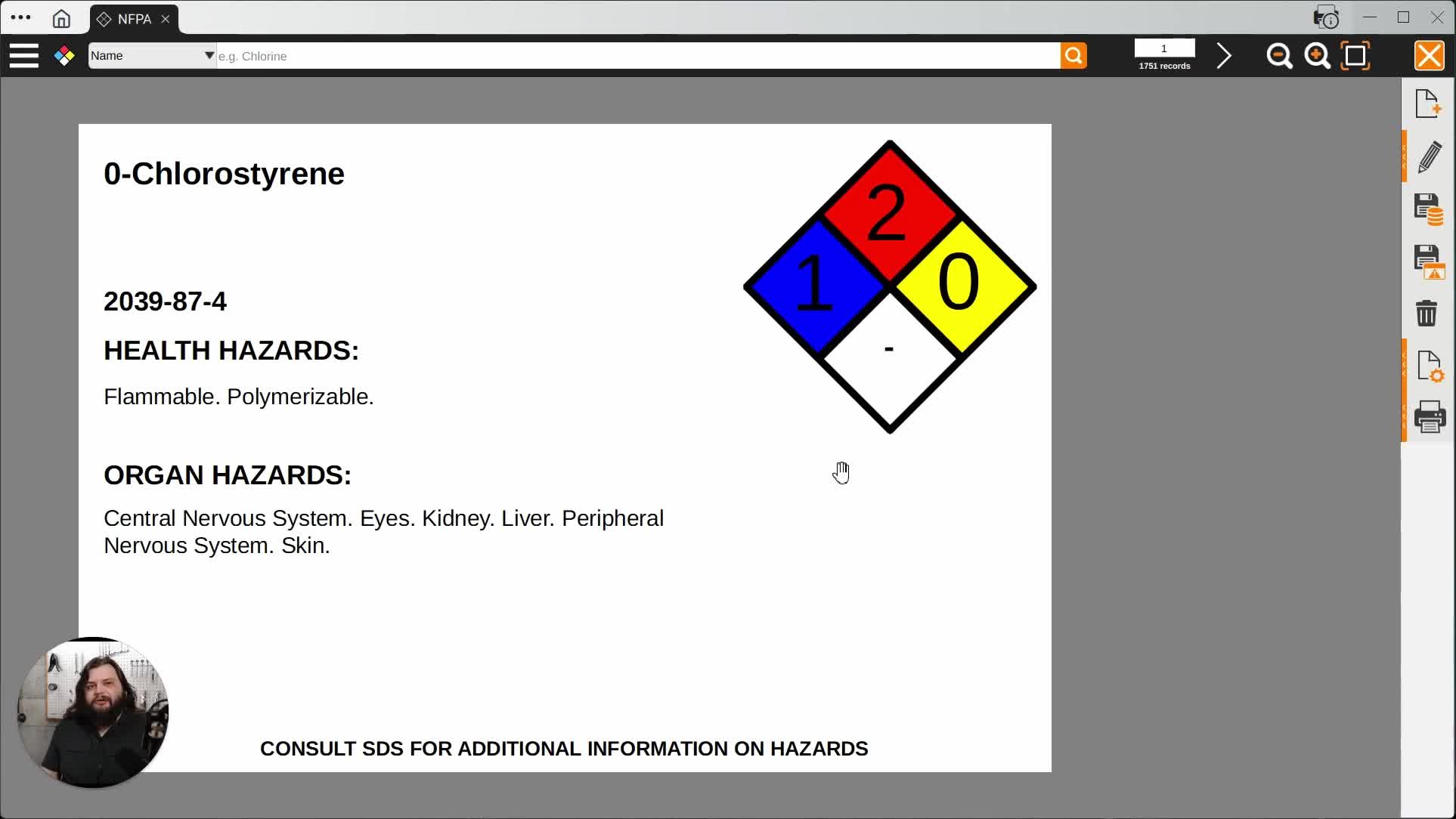

3. Change Label Type if Necessary 1:05
-
If you need to change the label type, click on the NFPA diamond in the top left corner.
-
Select the desired option from the drop-down menu.

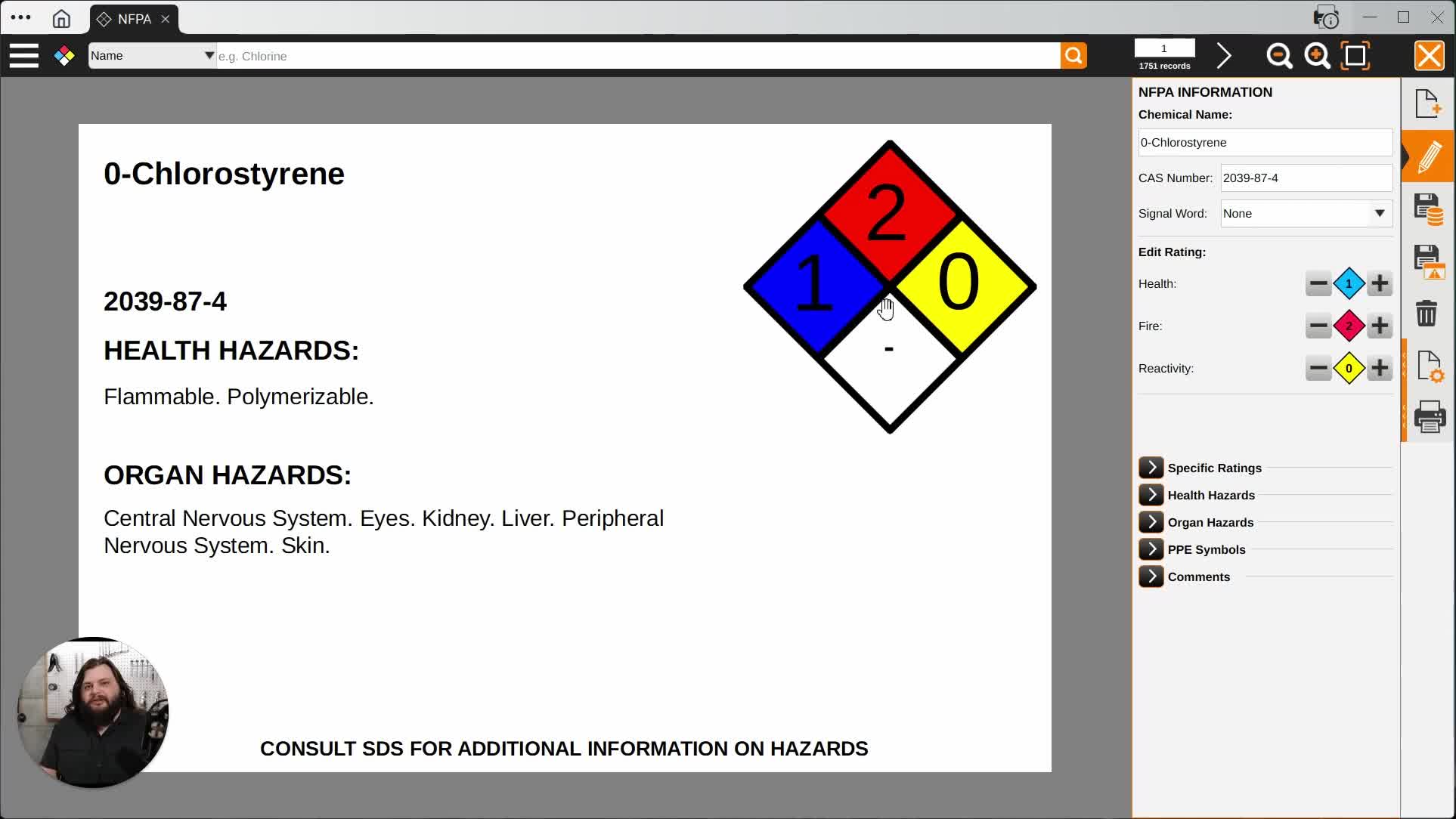

4. Choose Chemical Record 1:42
-
Click the pencil icon to open the edit menu.
-
Type in the chemical name (e.g., 'chlorine') and hit 'Enter' to select it.

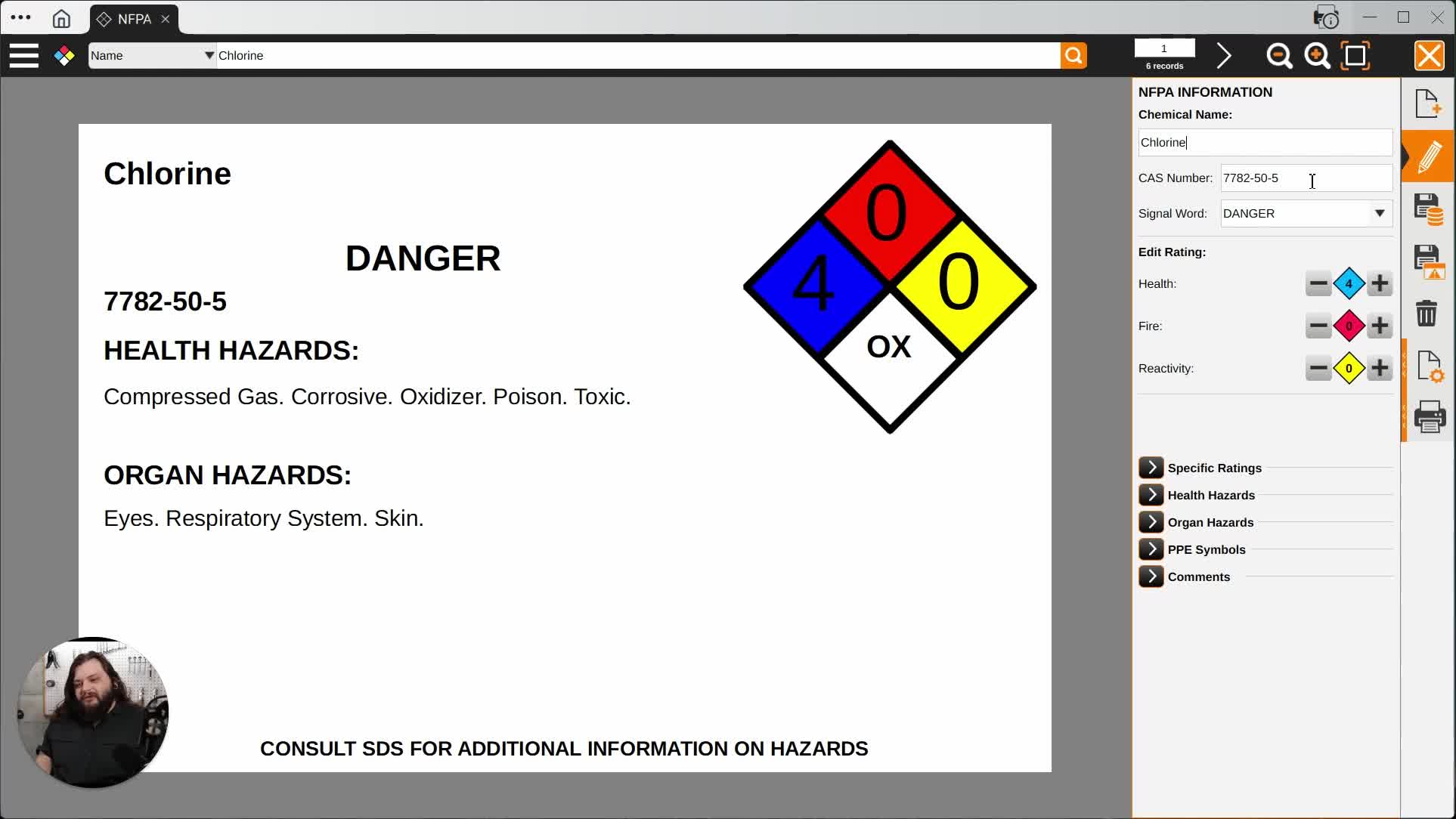

5. Edit Chemical Information 2:21
-
Modify the chemical name, CAS number, or signal word as needed.
-
Use the '+' or '-' buttons to adjust the severity ratings (0-4).
6. Adjust Ratings and Hazards 2:54
-
Click the arrow drop-down to change specific ratings for oxidizers, health hazards, and organ hazards.
7. Add PPE Symbols and Comments 3:23
-
Enable PPE symbols and comments in the settings menu if needed.
-
Type in any comments you want to include.

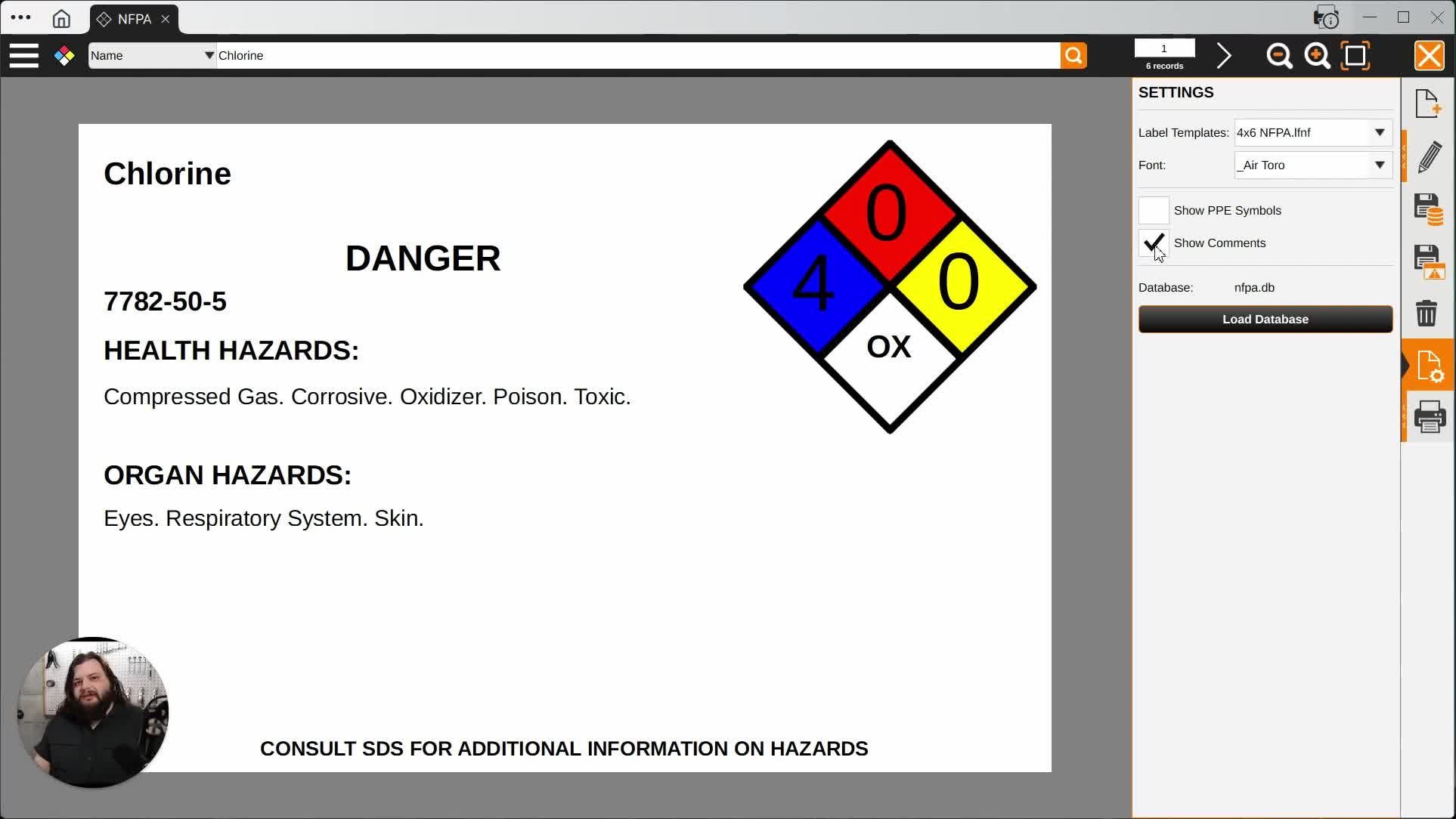

8. Change Template Size 4:13
-
Go to the label template section.
-
Select the appropriate size (e.g., 4x6) from the dropdown.

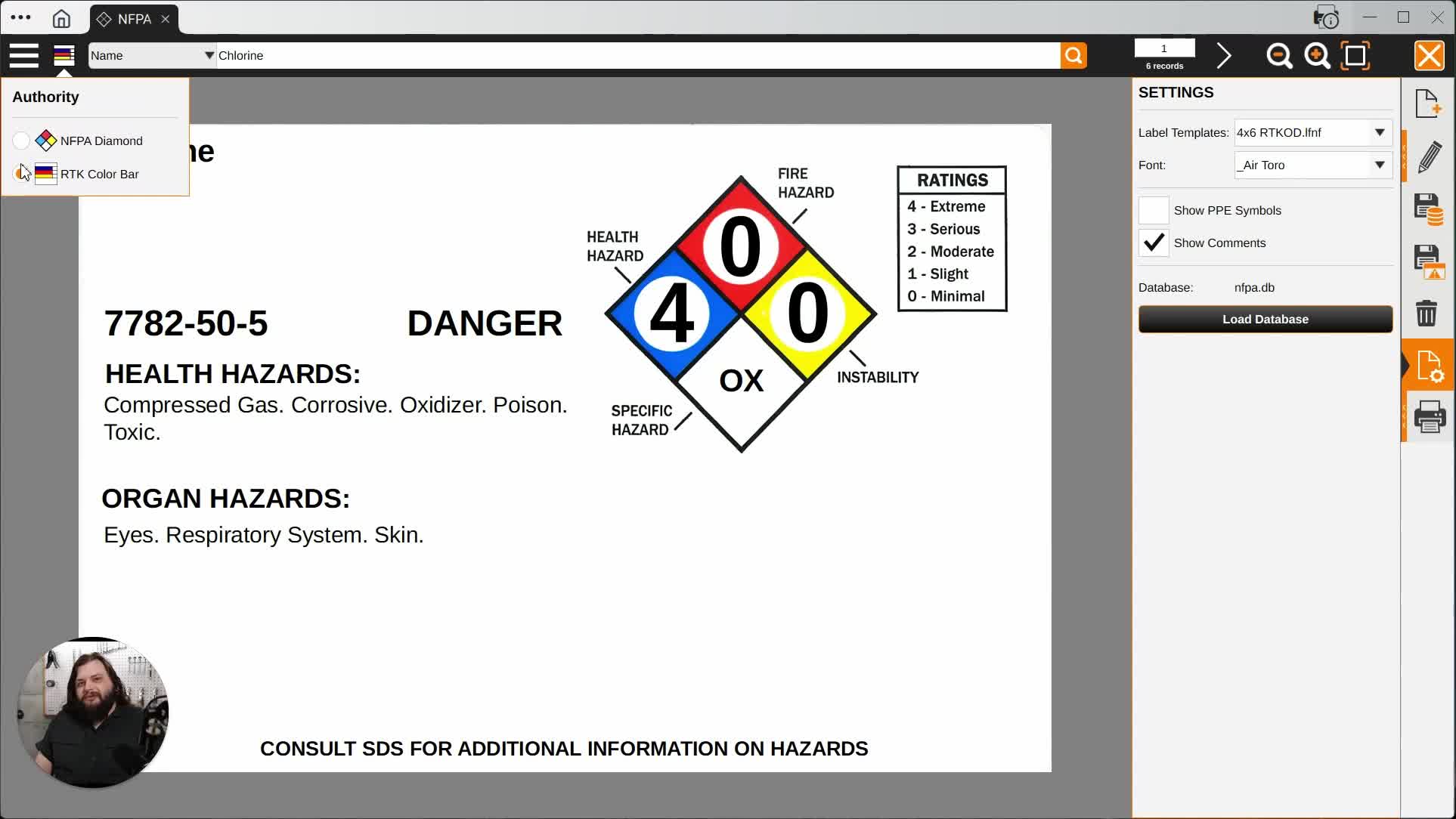

9. Select RTK Template if Needed 4:45
-
If using RTK labels, click on the NFPA diamond again.
-
Choose the RTK color bar option or the appropriate OD option.

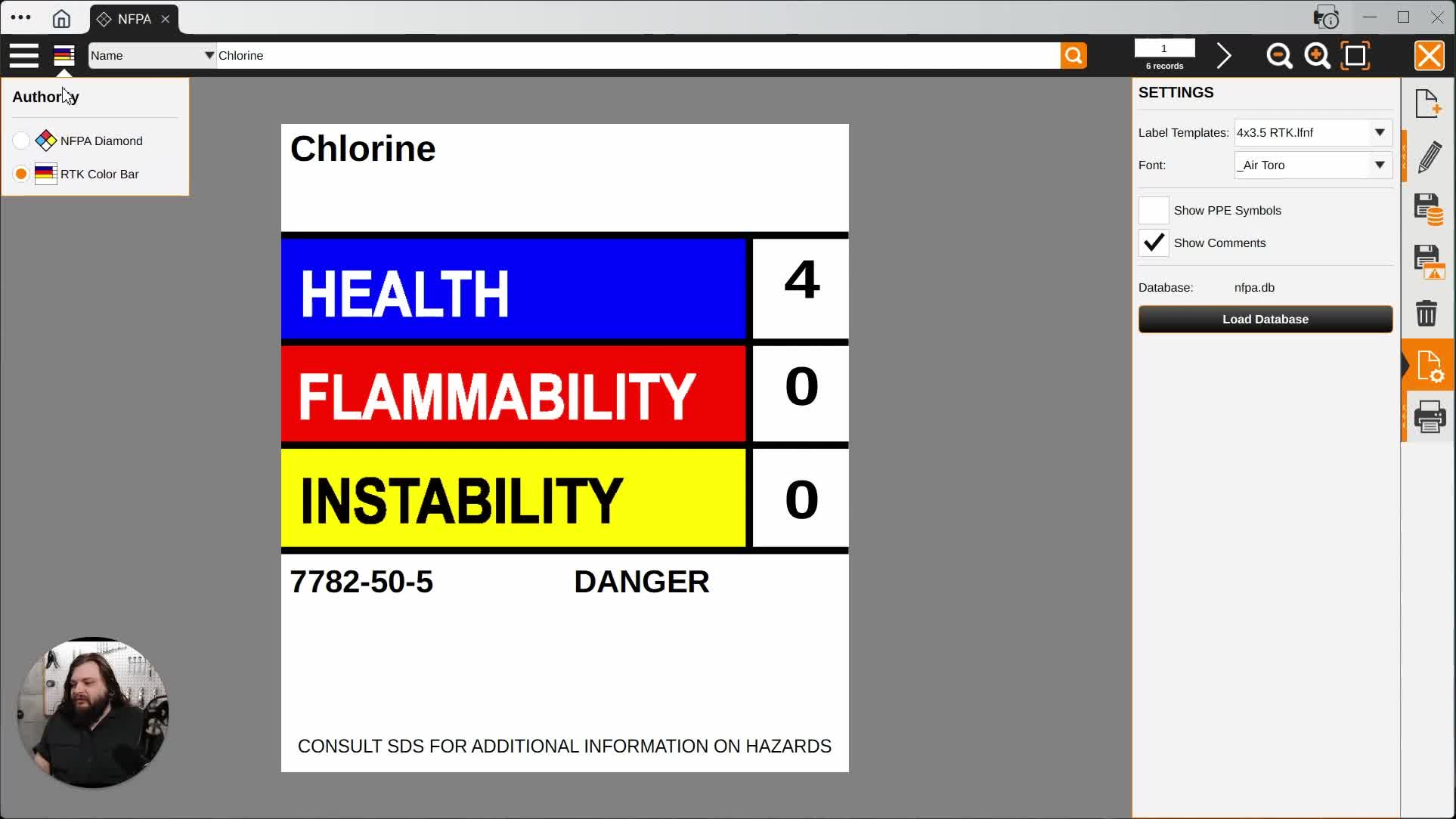

10. Print the Label 5:19
-
Once all information is entered and the template is selected, go to print settings.
-
Click 'Print' to finalize the label.
Cautionary Notes
-
Ensure that the correct chemical and ratings are selected to comply with safety standards.
-
Double-check all entries against the SDS for accuracy before printing.
