In this video, we walk through the object sizing, alignment, and layering tools in LabelForge PRO’s Label Designer by redesigning a fire extinguisher inspection record label.
You’ll learn how to set custom label dimensions, align and resize text, layer shapes and objects, and group elements for easy movement. We’ll also build tables, add headers, adjust colors, and finalize the layout so it’s clean, organized, and ready to print.
Set Up Label Dimensions 0:17
-

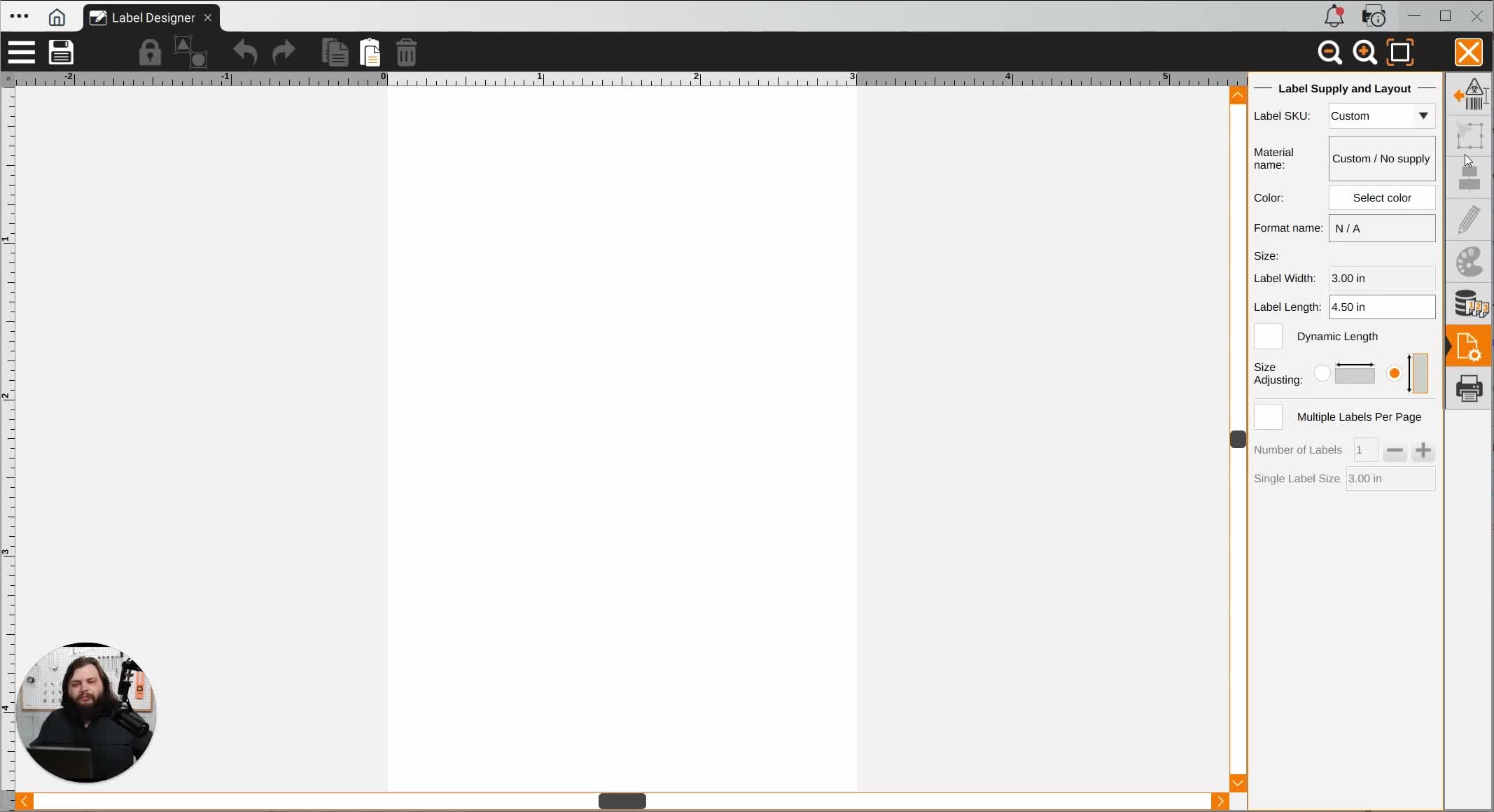

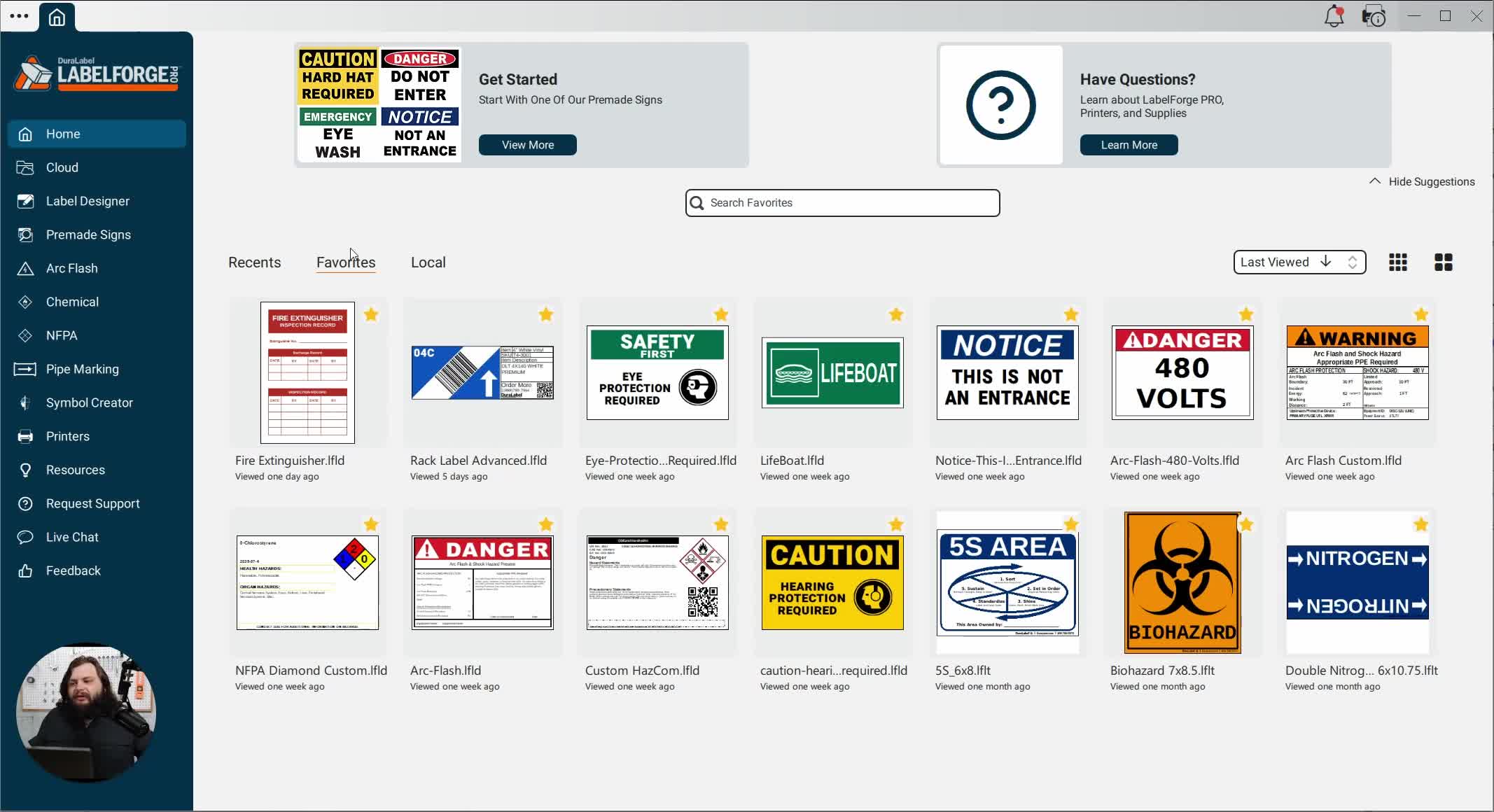

Open Label Designer.
-
Set the width to 3 inches and the length to 4.5 inches.
-
Click on 'Create New Label'.
Change Orientation to Portrait 0:42
-
Go to the settings option.
-
Change the orientation from landscape to portrait.

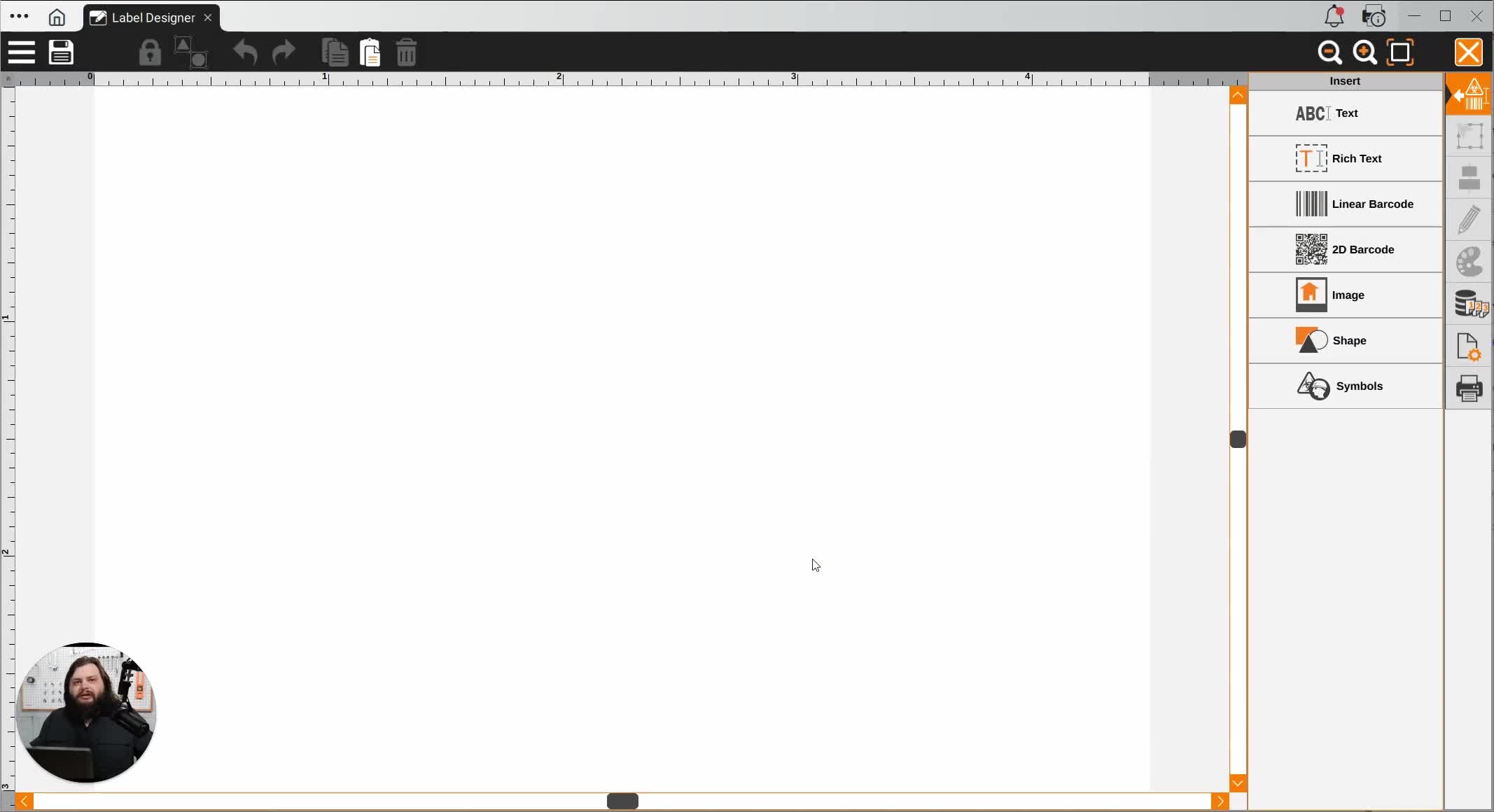

Add Header Text 0:56
-
Go to the Insert Menu and select 'Rich Text'.
-
Type 'Fire Extinguisher' and 'Inspection Record'.
-
Adjust the font size to 20 for 'Fire Extinguisher' and 12 for 'Inspection Record'.

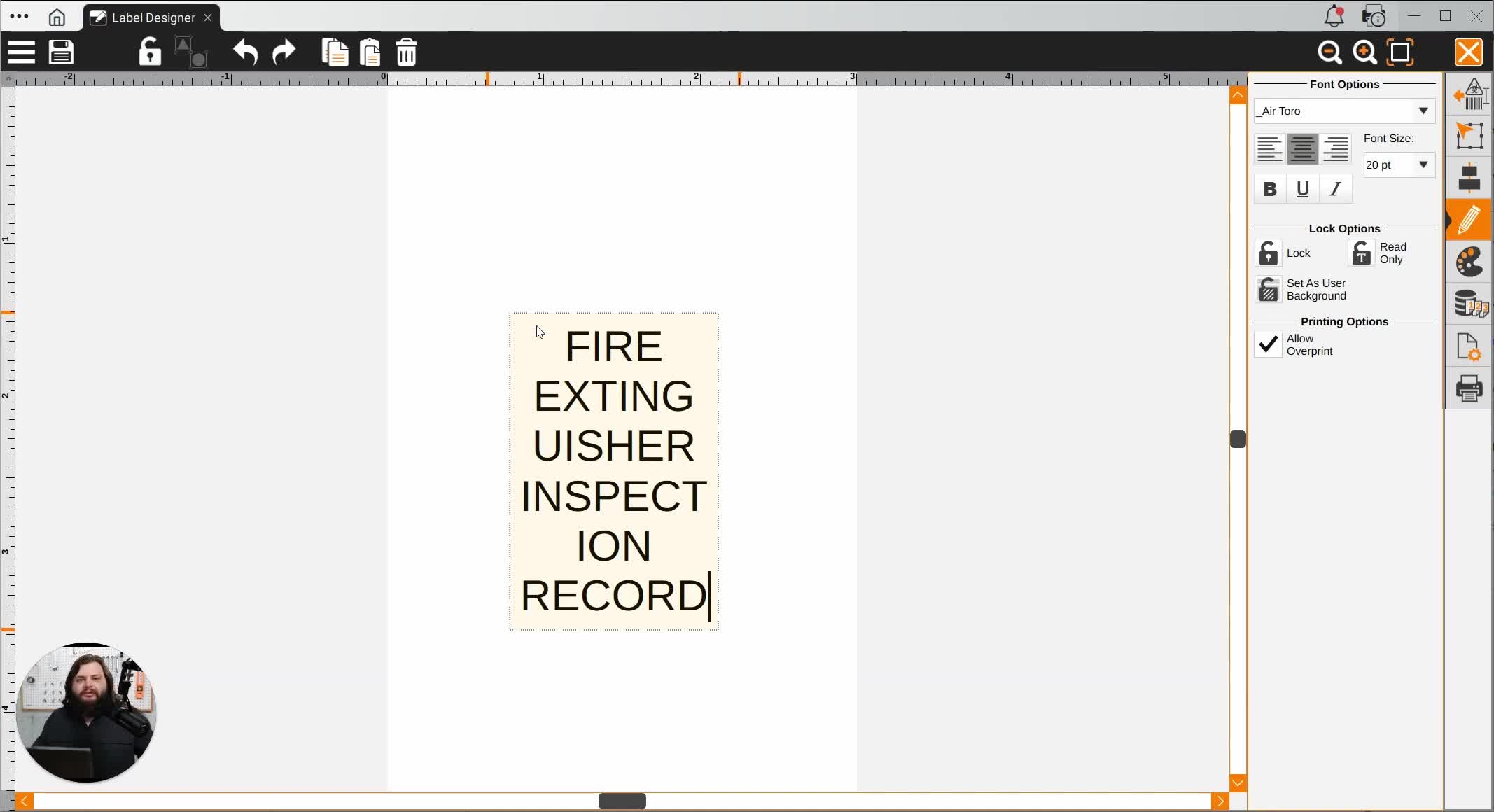

Resize and Align Header Text 2:28
-
Use the 'Fit in Label' option to stretch the text box to the label width.
-
Adjust the font sizes as needed (16 points for 'Fire Extinguisher', 12 points for 'Inspection Record').
-
Center the text using the 'Align to Label' option.

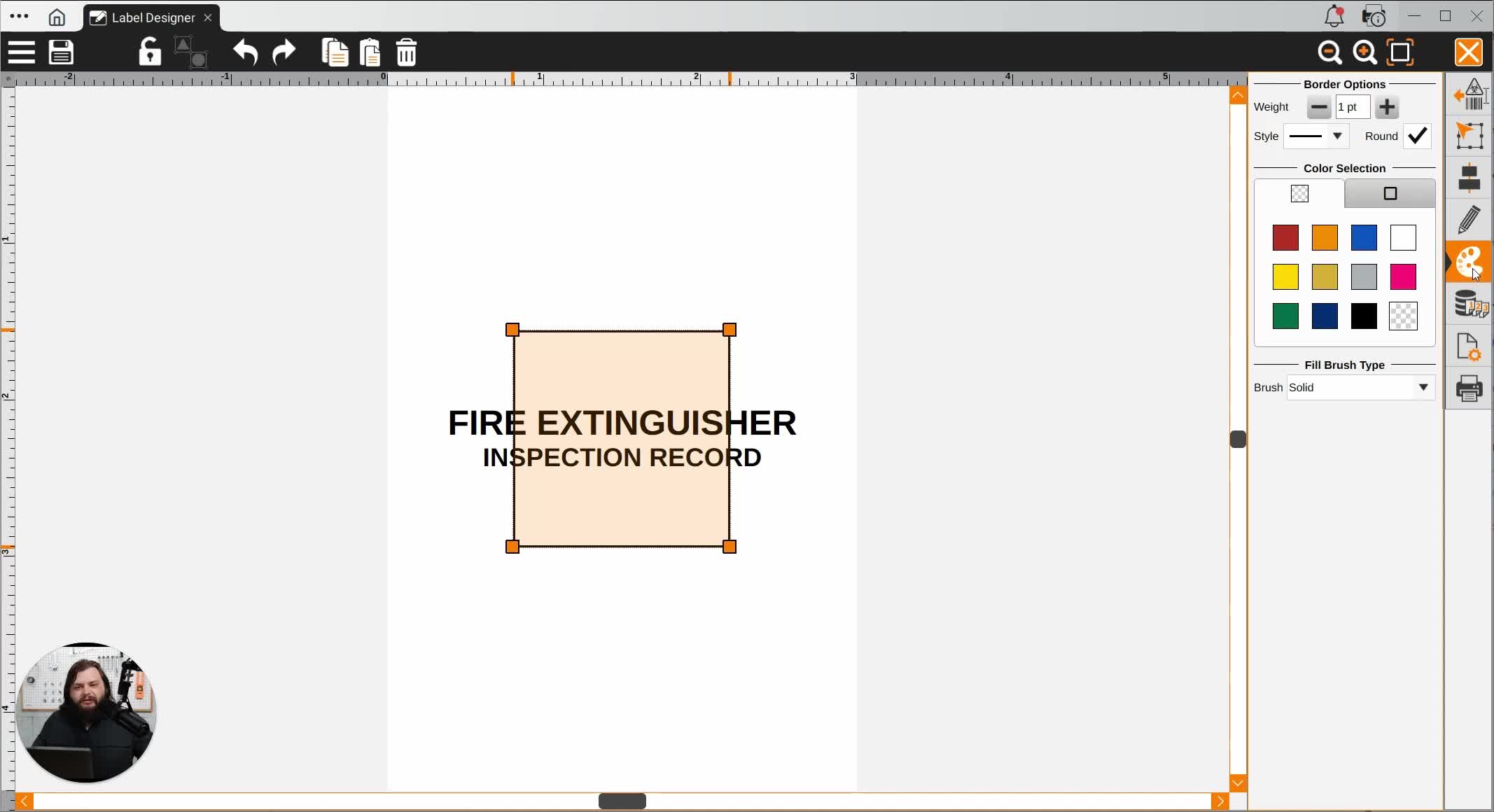

Add Header Background Shape 5:05
-
Go to the Insert Menu and select 'Shape', choosing a square.
-
Set the fill color to red and border color to red.
-
Adjust the size to 2.5 inches in length and 0.75 inches in width.

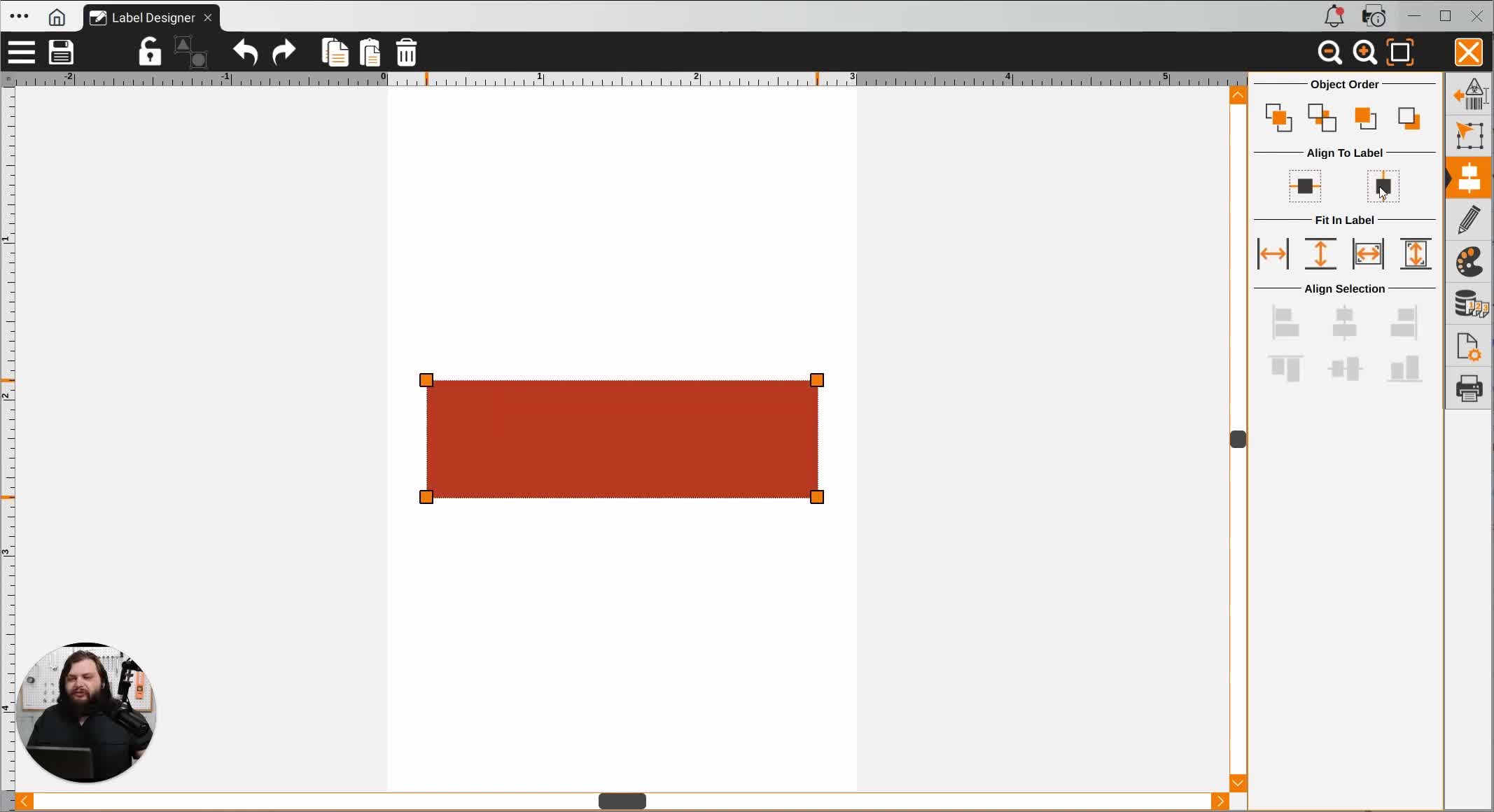

Layer the Header Shape 6:05
-
Use the 'Object Order' option to send the red square to the back.

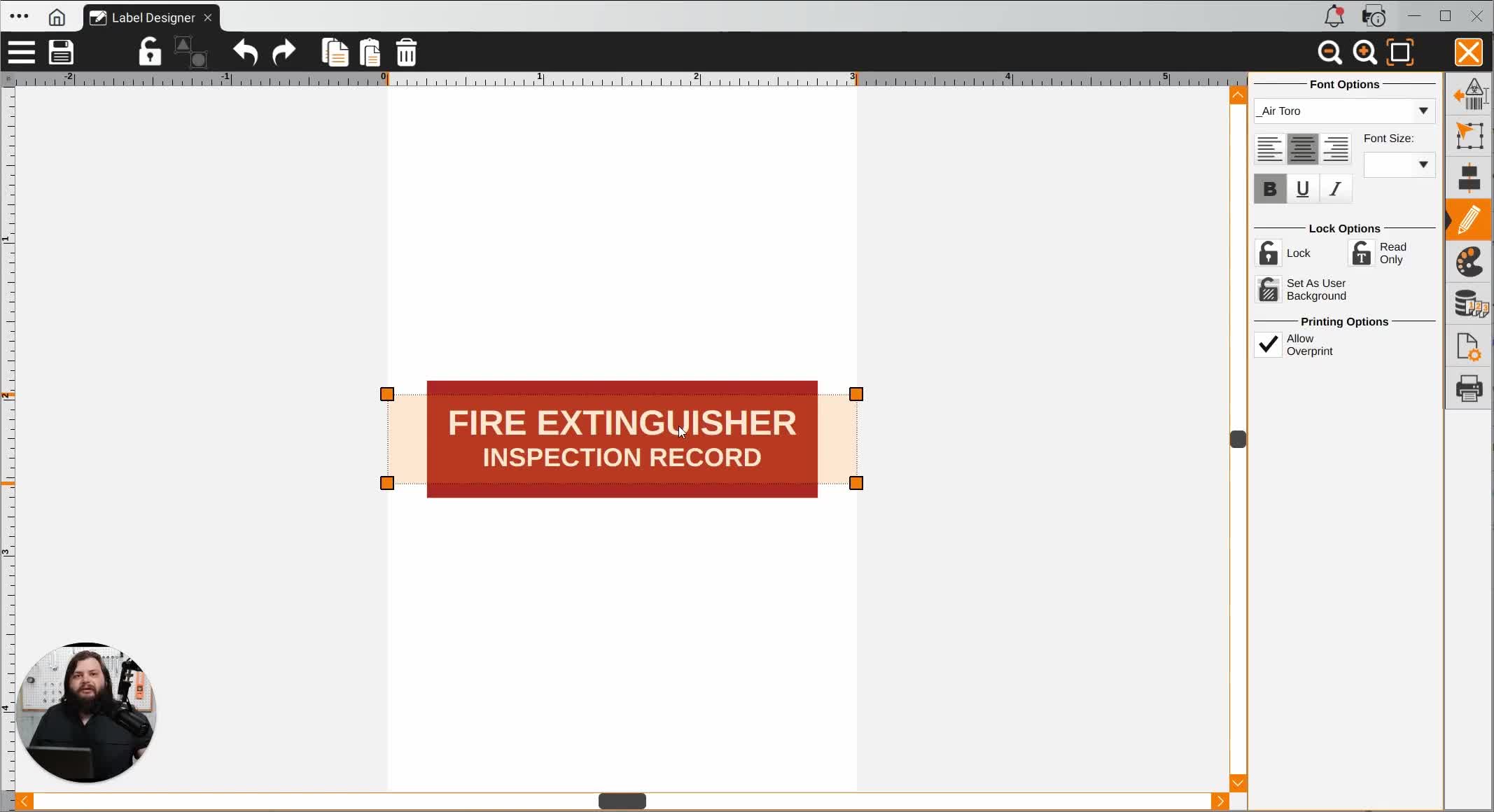

Change Header Text Color 7:29
-
Select the header text and change the color to white.

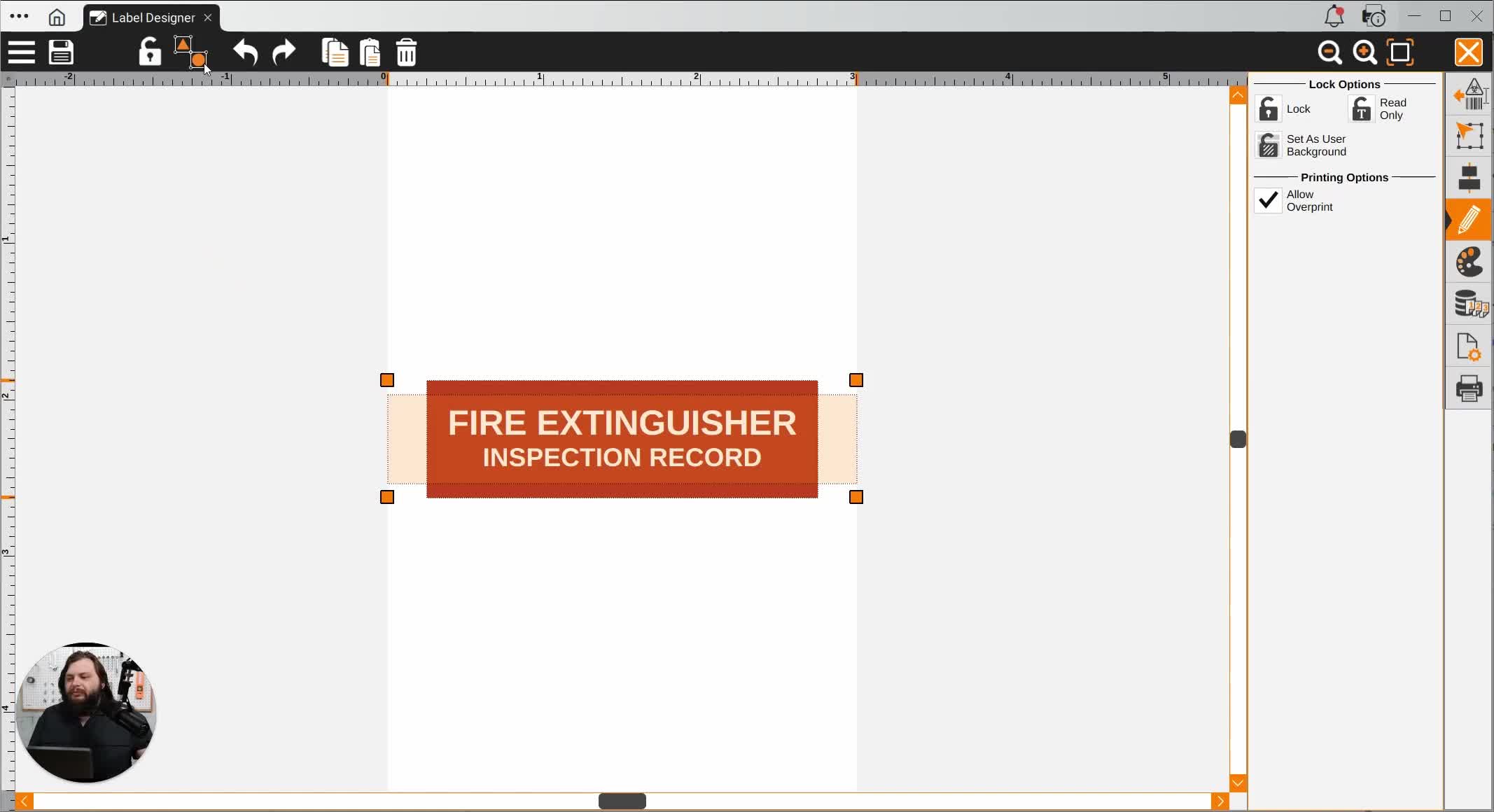

Group Header Elements 7:38
-
Highlight all header elements and group them together.

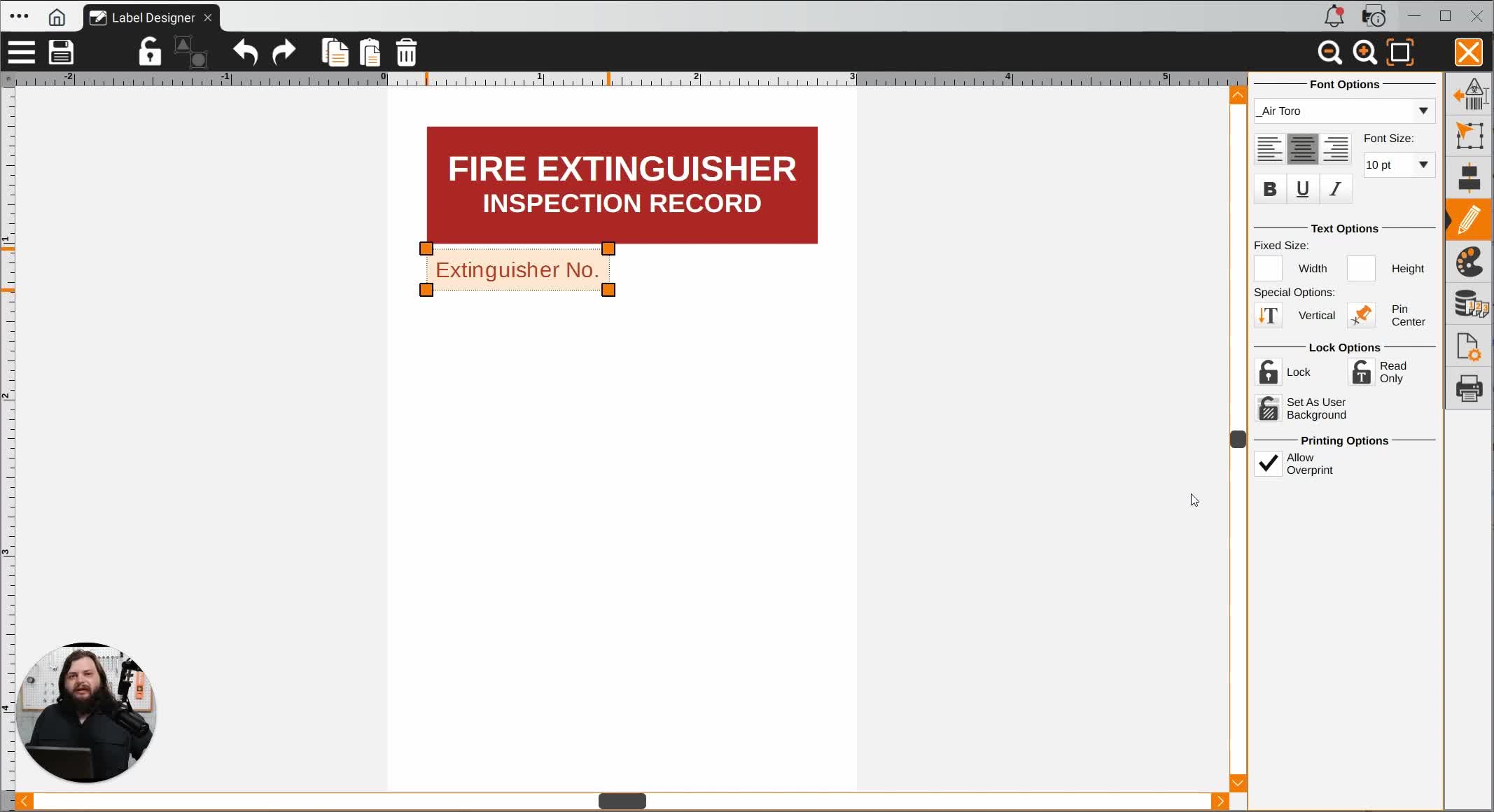

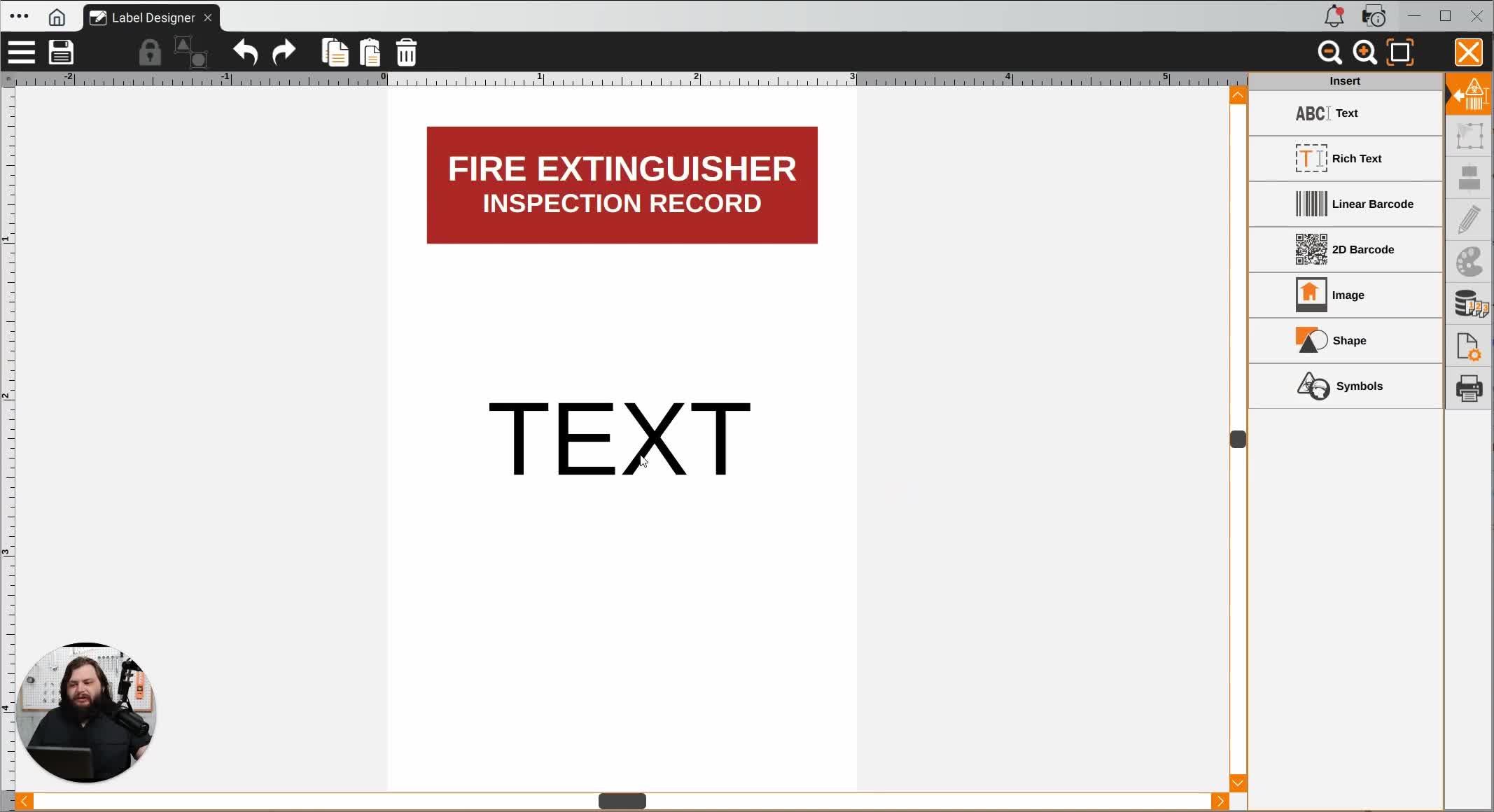

Add Extinguisher Number Text 8:17
-
Insert 'ABC Text' for the extinguisher number.
-
Set the font size to 10 and color to red.
Add Recharge Record Table 10:02
-
Insert a square shape for the recharge record table.
-
Set the dimensions to 2.5 inches in length and 1 inch in width.

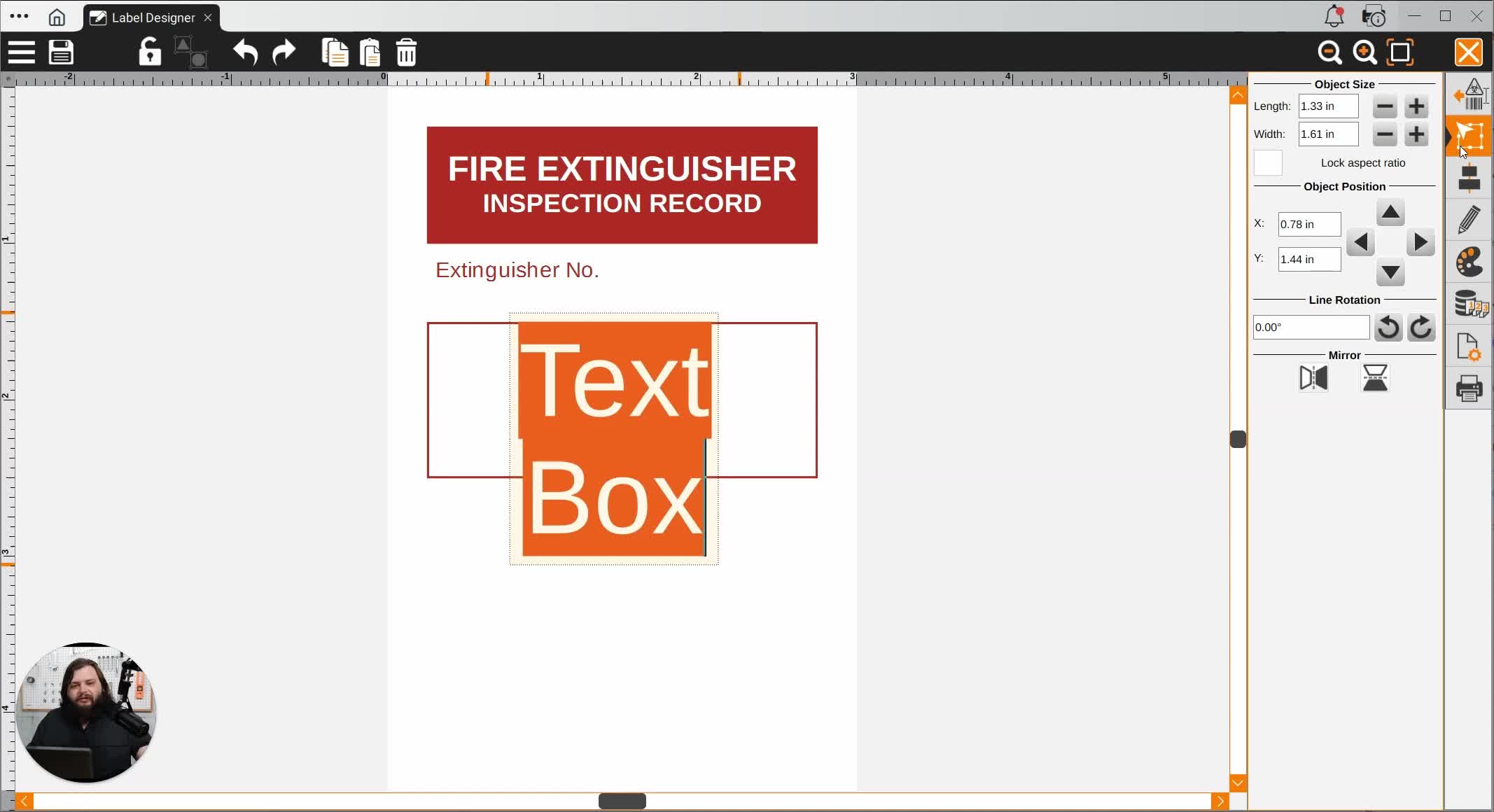

Add Recharge Record Header 11:44
-
Insert 'Rich Text' for the recharge record header.
-
Set the dimensions to 2.5 inches in length and 0.25 inches in width.
-
Change the font size to 10 and color to white with a red background.

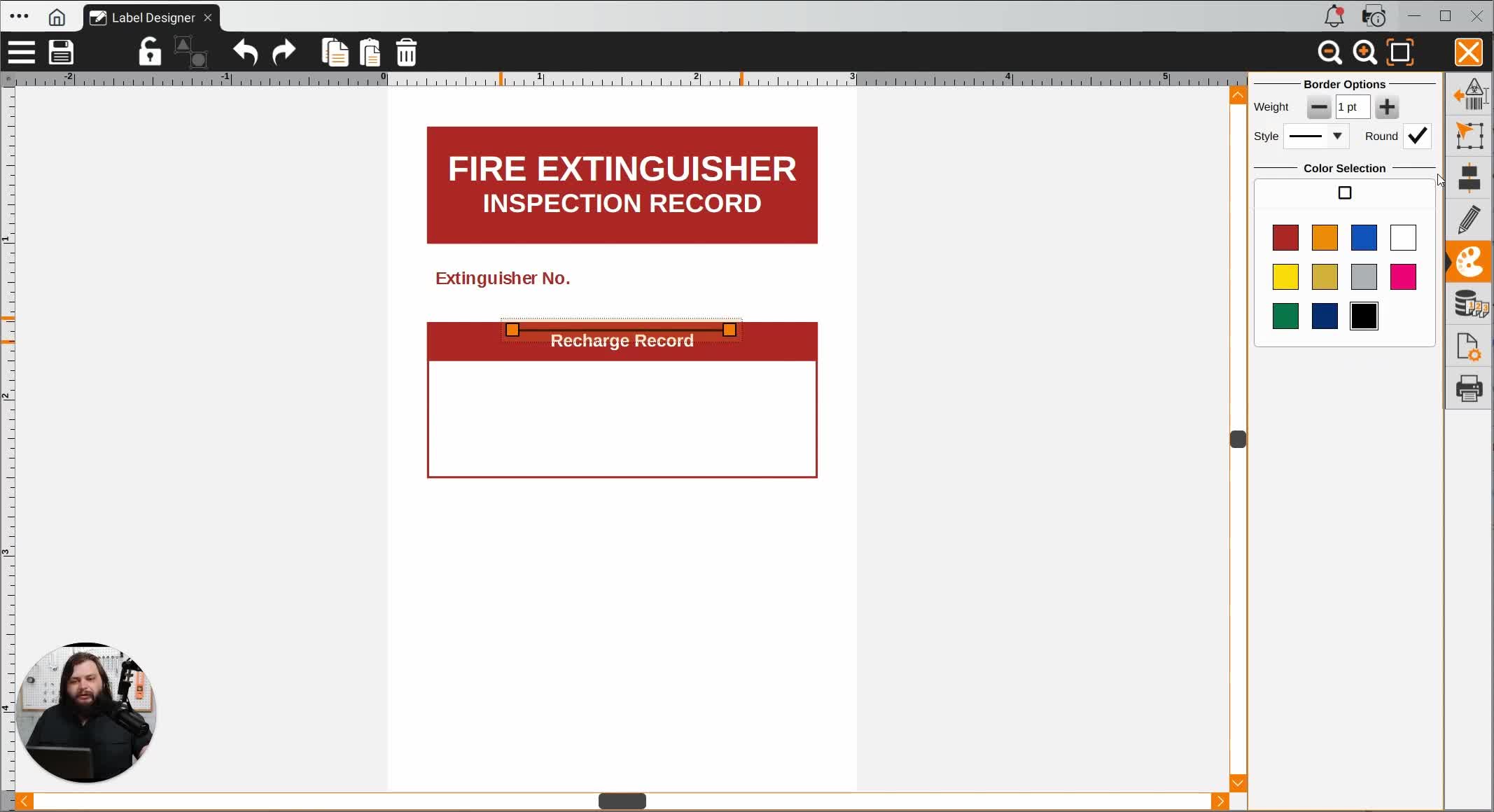

Add Table Lines 15:26
-
Use the shape feature to add horizontal and vertical lines for the table.
-
Set the length of horizontal lines to 2.5 inches and adjust the Y values accordingly.

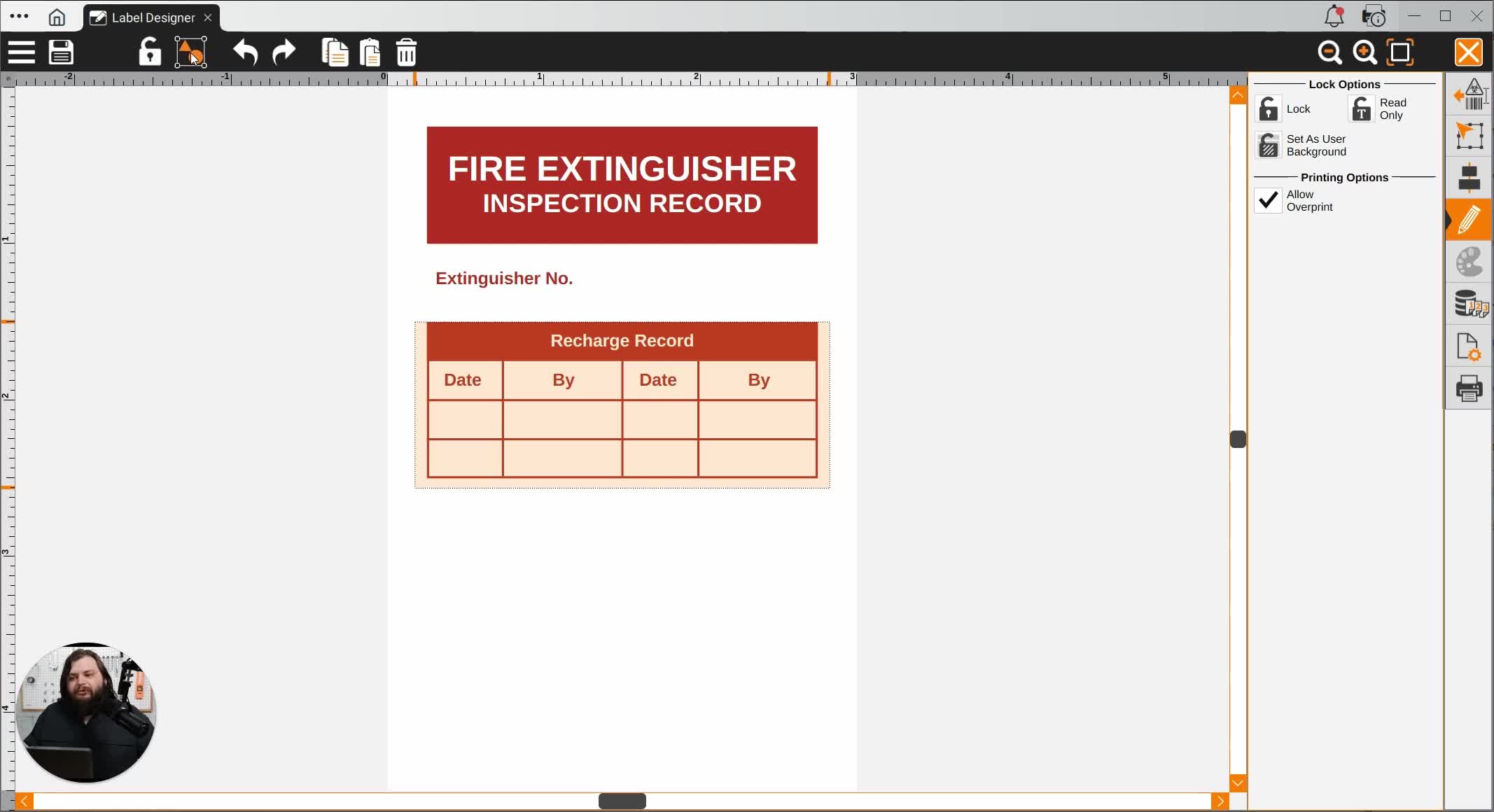

Duplicate Table for Inspection Record 20:10
-
Highlight the entire recharge record table and copy-paste it.
-
Adjust the Y value to 2.75 inches for the inspection record table.
Change Inspection Record Text 22:07
-
Change the header text from 'Recharge Record' to 'Inspection Record'.

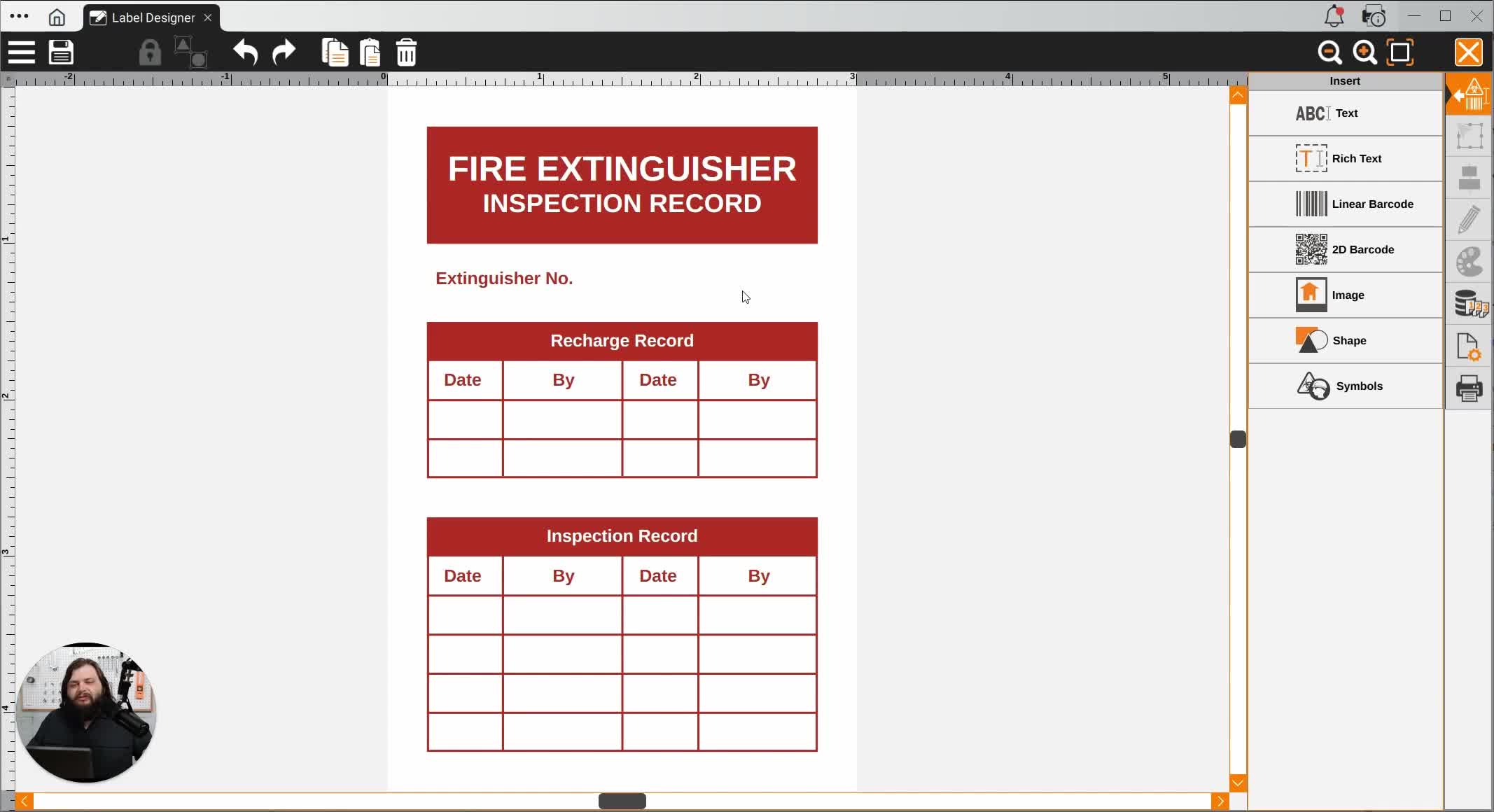

Final Adjustments 23:10
-
Add a line after the extinguisher number.
-
Change the line color to white and adjust layering as needed.
Cautionary Notes
-
Ensure all text is legible against the background colors.
-
Double-check alignment and spacing before finalizing the label.
Tips for Efficiency
-
Use keyboard shortcuts for copying and pasting elements.
-
Regularly save your work to avoid losing progress.
