In this video, we walk through how to use the Symbol Creator tool in LabelForge PRO to create custom symbols for your labels. You’ll learn how to upload images or company logos, convert them into SVGs, adjust settings like transparency and cropping, and then add them to your personal symbol library for quick use in Label Designer.

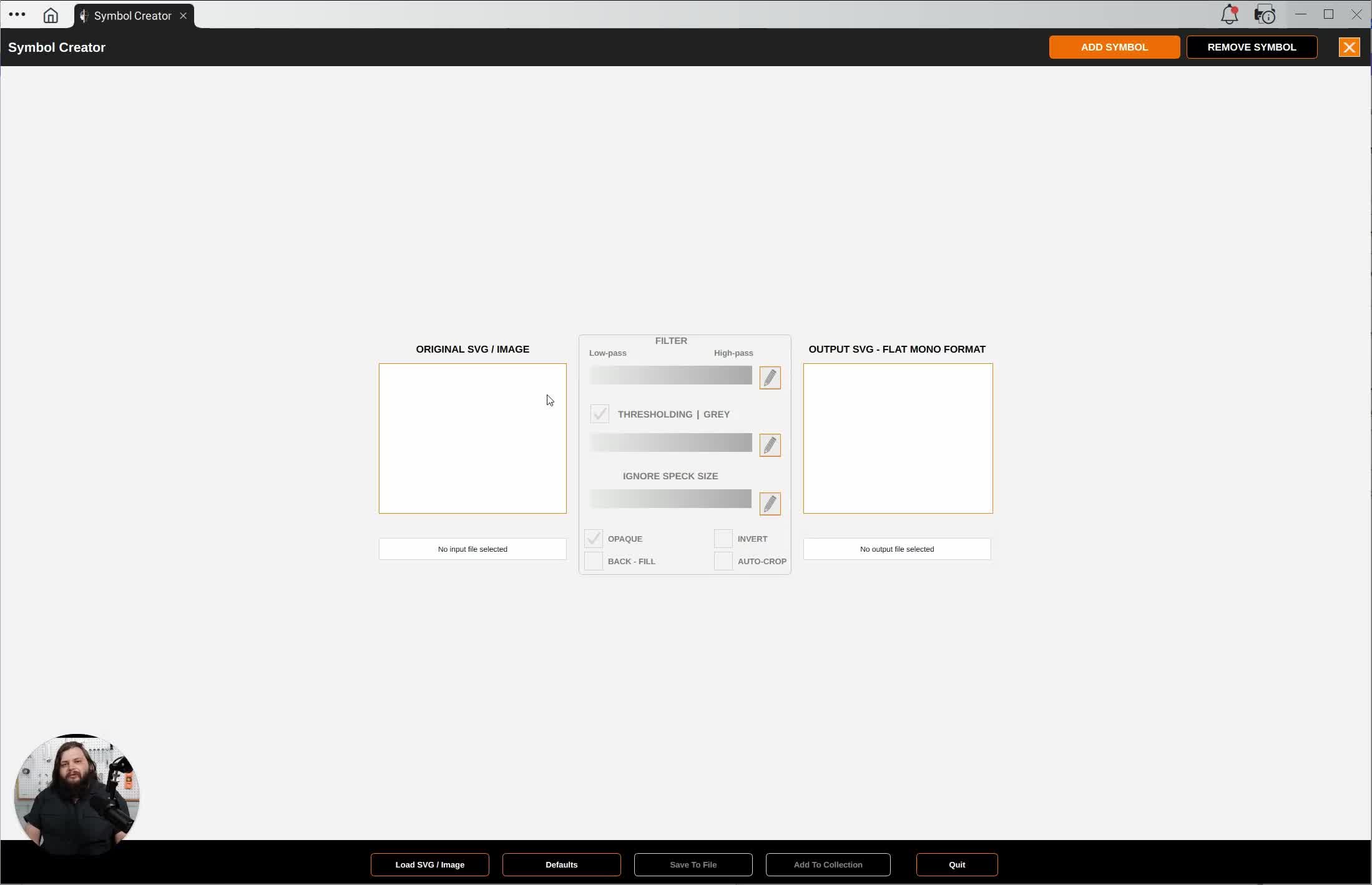

1. Access the Symbol Creator Tool 0:00
- Open the Symbol Creator tool from the DuraLabel interface.
- A new window will appear with various options.
2. Load an SVG/Image File 0:26
- Click on 'Load SVG/Image'.
- Select the desired file (e.g., company logo) from your computer and click 'Open'.

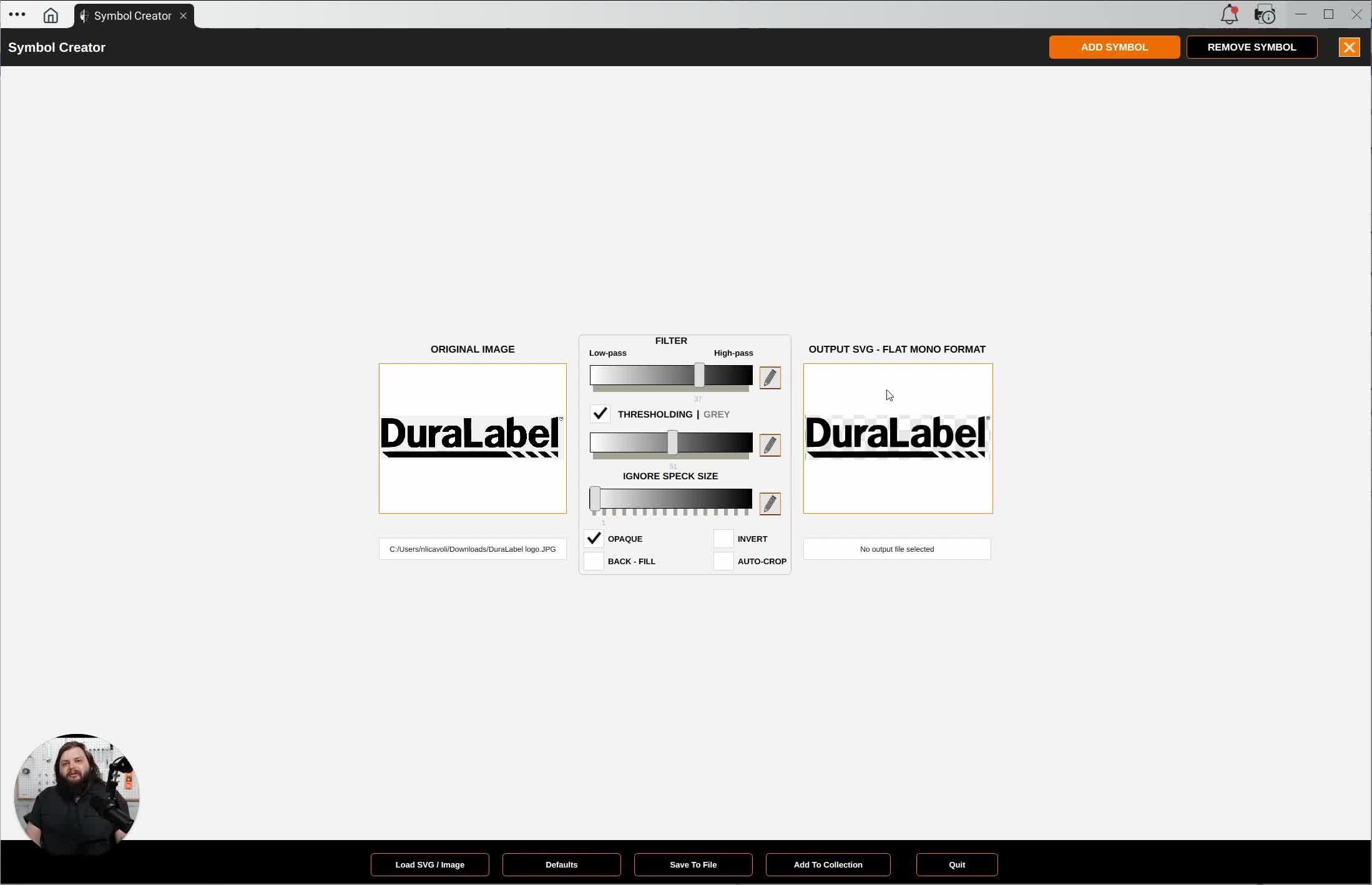

3. Adjust Output Settings 0:47
- Review the output of your SVG image.
- Adjust the filter thresholding or ignore spec size sliders if necessary.
4. Set Transparency Options 1:04
- Check the 'Opaque' option if you want to add transparency to the image.
- Leave 'Backfill' unchecked for a transparent background.
5. Use AutoCrop Feature 1:41
- Click on 'AutoCrop' to resize the symbol to fit the edges of the image.
6. Add Symbol to Collection 1:57
- Click on 'Add to Collection'.
- Optionally change the name of the image file in the pop-up window and click 'OK'.
7. Access Label Designer 2:18
- Return to the home screen and navigate to 'Label Designer'.
- Click on 'Create New Label'.

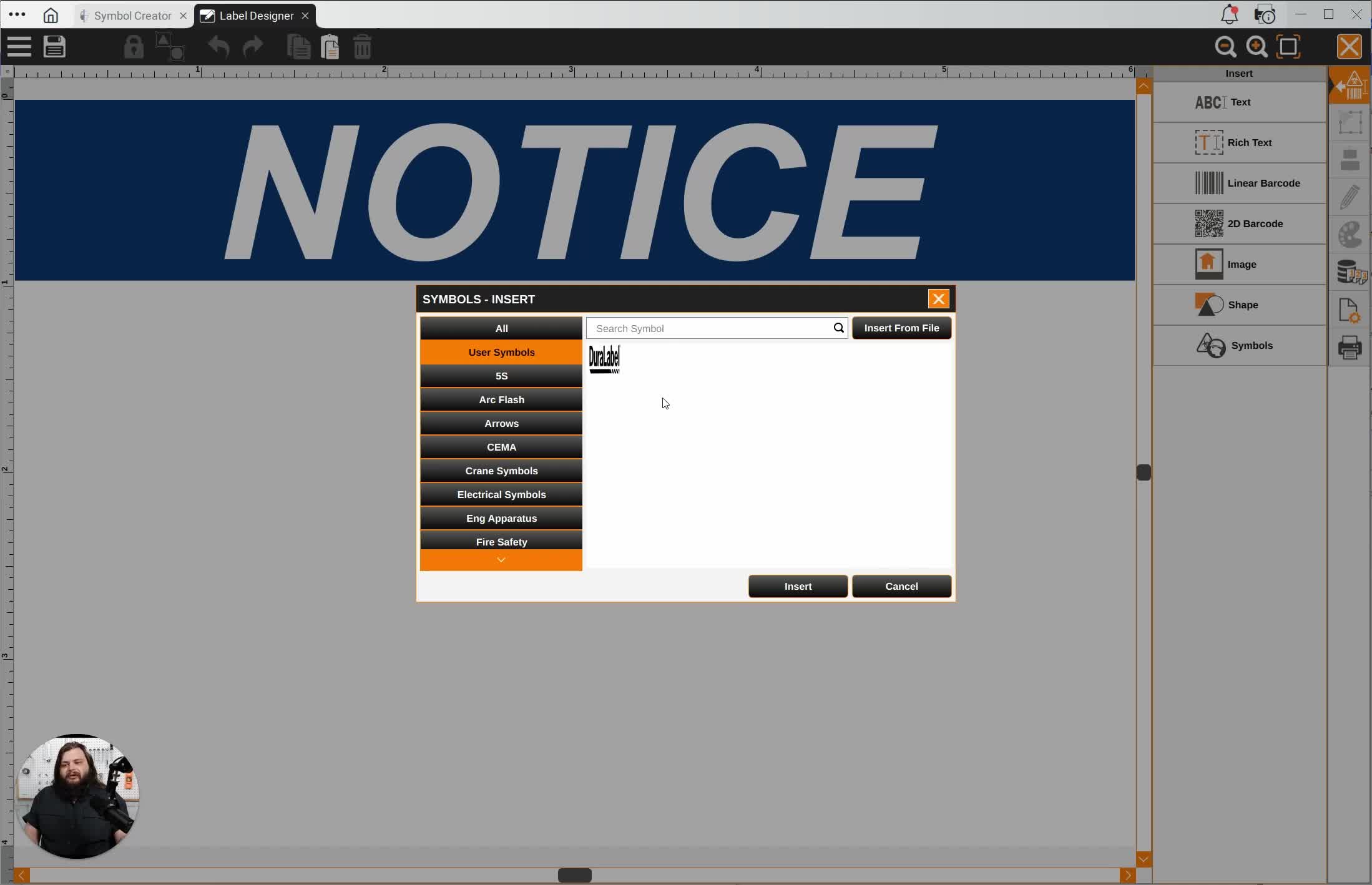

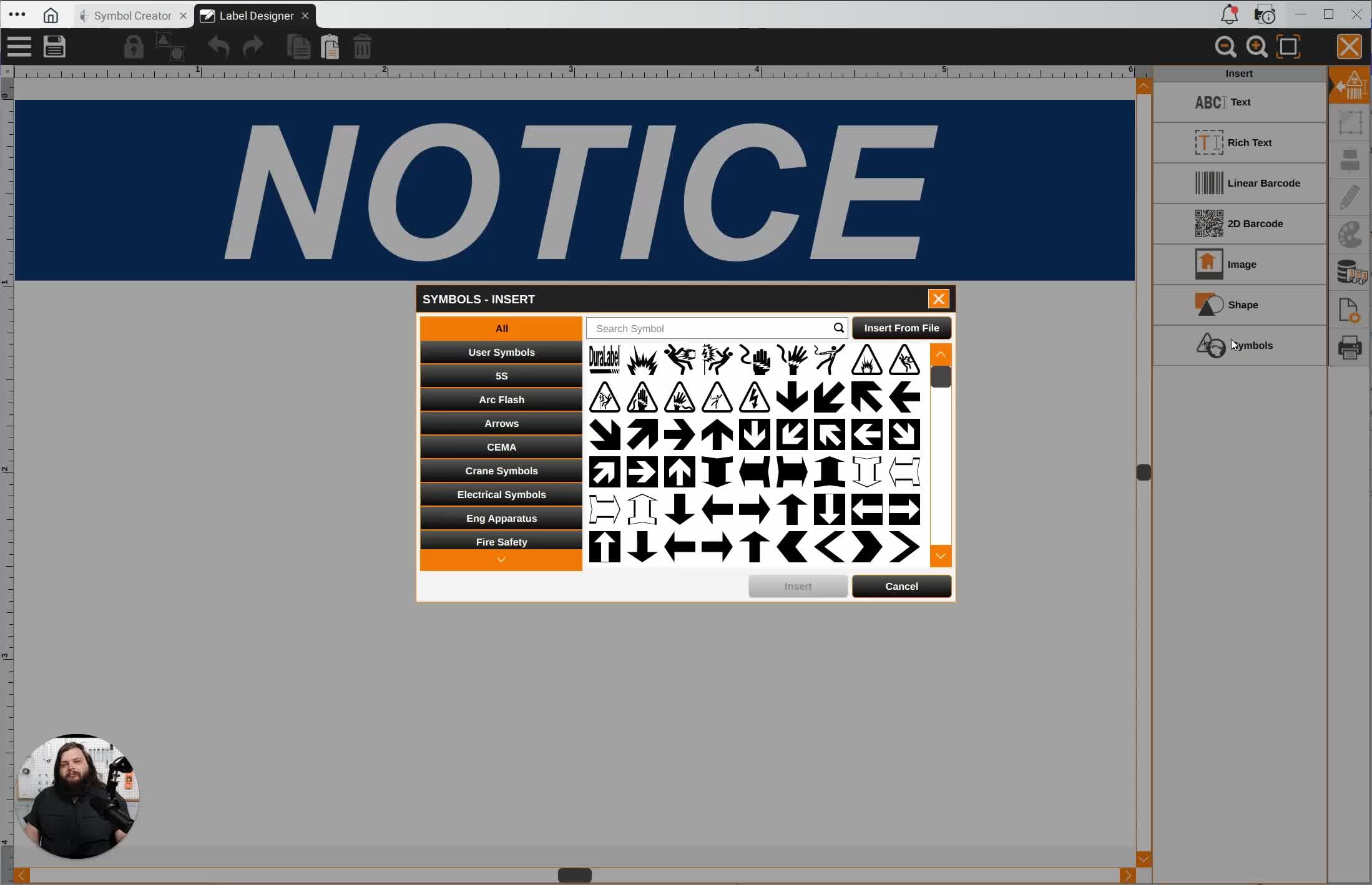

8. Select User Symbols 2:31
- Go to the symbols library.
- User symbols will appear at the top; select the desired symbol.

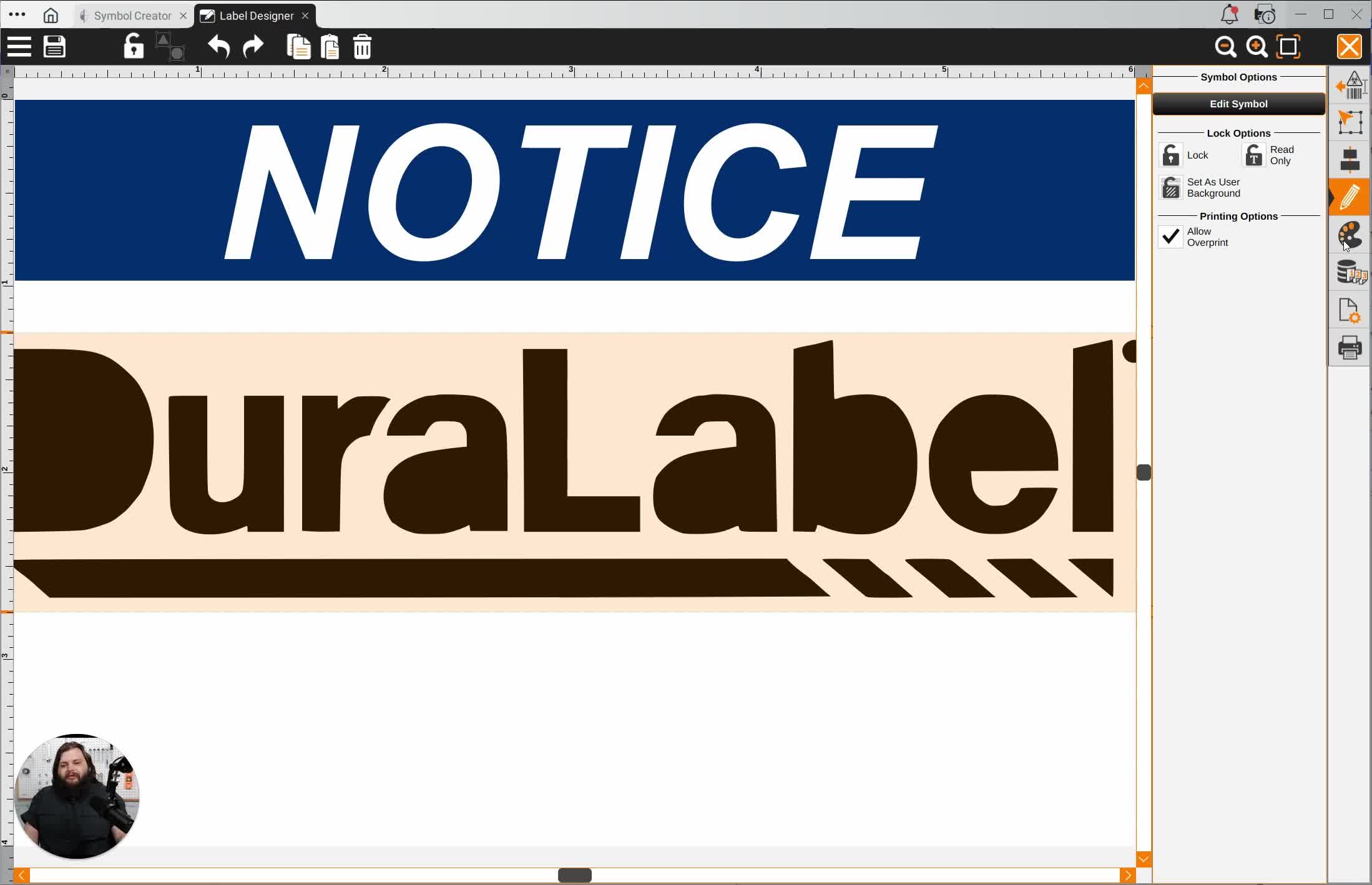

9. Insert the Symbol 2:49
- Highlight the selected symbol and click 'Insert' to add it to your label.
10. Adjust Colors if Necessary 3:06
- If filled letters or shapes appear solid black, go to the paint palette.
- Select a color that matches the background (e.g., white for white backgrounds).
Cautionary Notes
-
Ensure that the image file you upload is in a compatible format (SVG).
-
Be cautious with the 'Opaque' and 'Backfill' options to achieve the desired transparency effect.
Tips for Efficiency
-
Familiarize yourself with the filter settings to quickly adjust images.
-
Use the Auto Crop feature to save time on resizing symbols.
-
Regularly check the user symbols section for quick access to frequently used symbols.
