These utilities are used for advanced functions or system troubleshooting and can be found in the Utilities menu.
Supply Status
This utility shows the currently loaded supplies, and how much of each is remaining. Click the supply rolls on Kodiak Max main toolbar to open this utility.
To print, Kodiak Max requires a label stock and two ribbon cartridges to be properly installed. When the user opens this utility, it will show current supplies and how much of each remains. The catalog number for each loaded supply is also shown.
If you need to trim the edge of your label stock (after clearing a jam, for example) this utility also offers a “Trim” function, which will eject a short, blank label, and cut it cleanly. The window also includes an option to cancel any current print jobs, or check your printer settings.

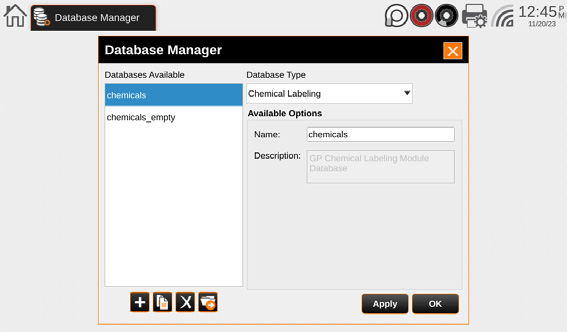

Database Manager
Several of the labeling modules in your Kodiak Max use internal databases to store and retrieve data for label printing. With the Database Manager utility, you can create a new database, import or export databases, or set up a network connection for using an external database with Open Database Connectivity (ODBC).

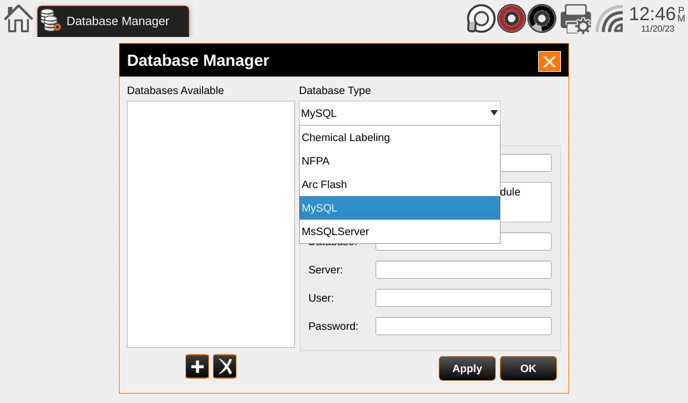

Start by selecting the database type with the dropdown menu. To create a new database, enter a name for the new database and press the Add Database button.
