How to Unbox and Set Up Your DuraLabel Toro Max Industrial Printer

1. Unboxing the Printer 0:00

• Cut open the box using a box knife at the top.

• Remove the Quick Start Guide and accessories from the box.

• Carefully take the printer out of the box, ensuring to keep the foam and box for future shipping needs.

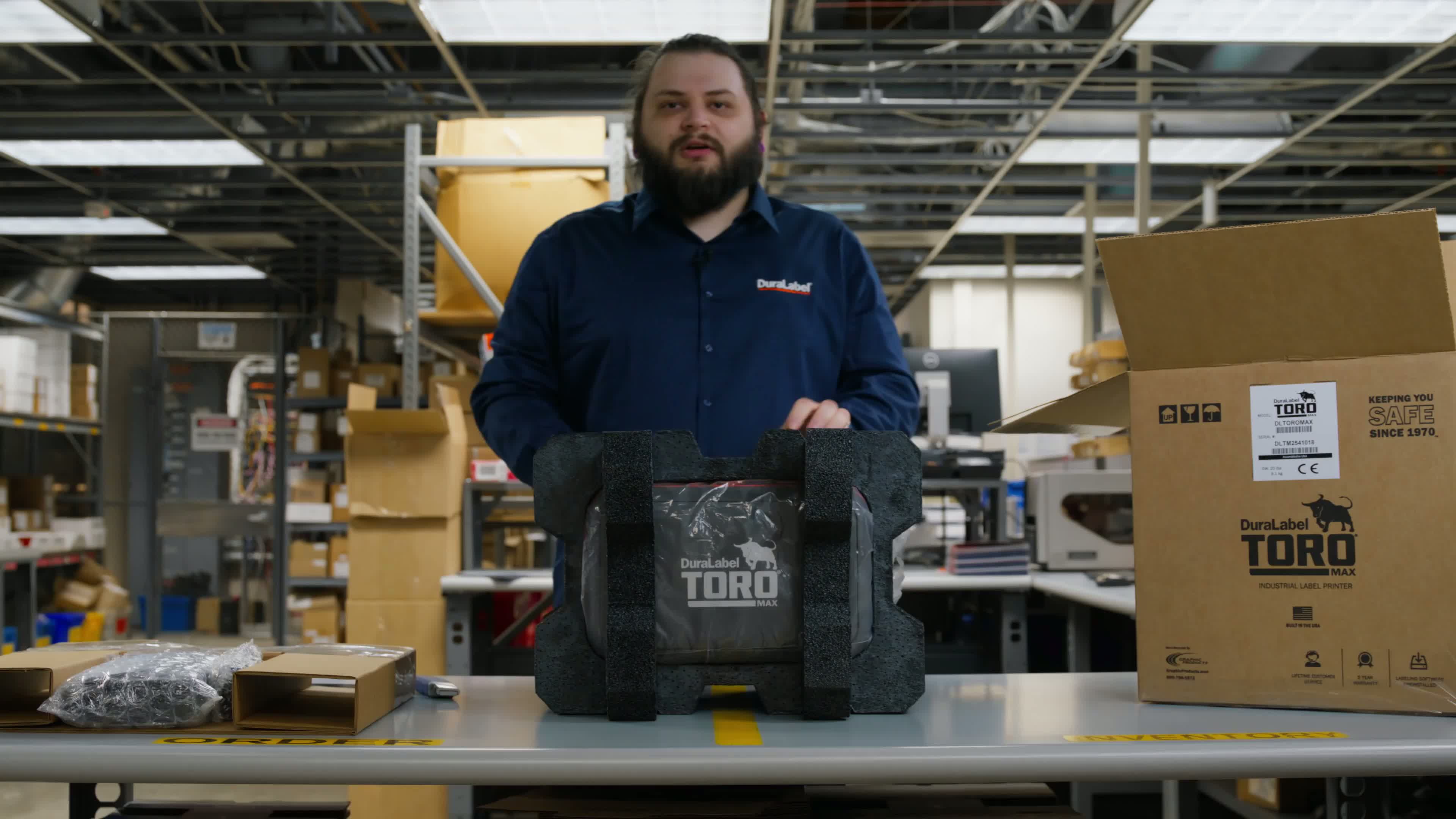

2. Removing Packaging Materials 0:58

• Remove the foam from both sides of the printer.

• Take the printer out of its protective bag.

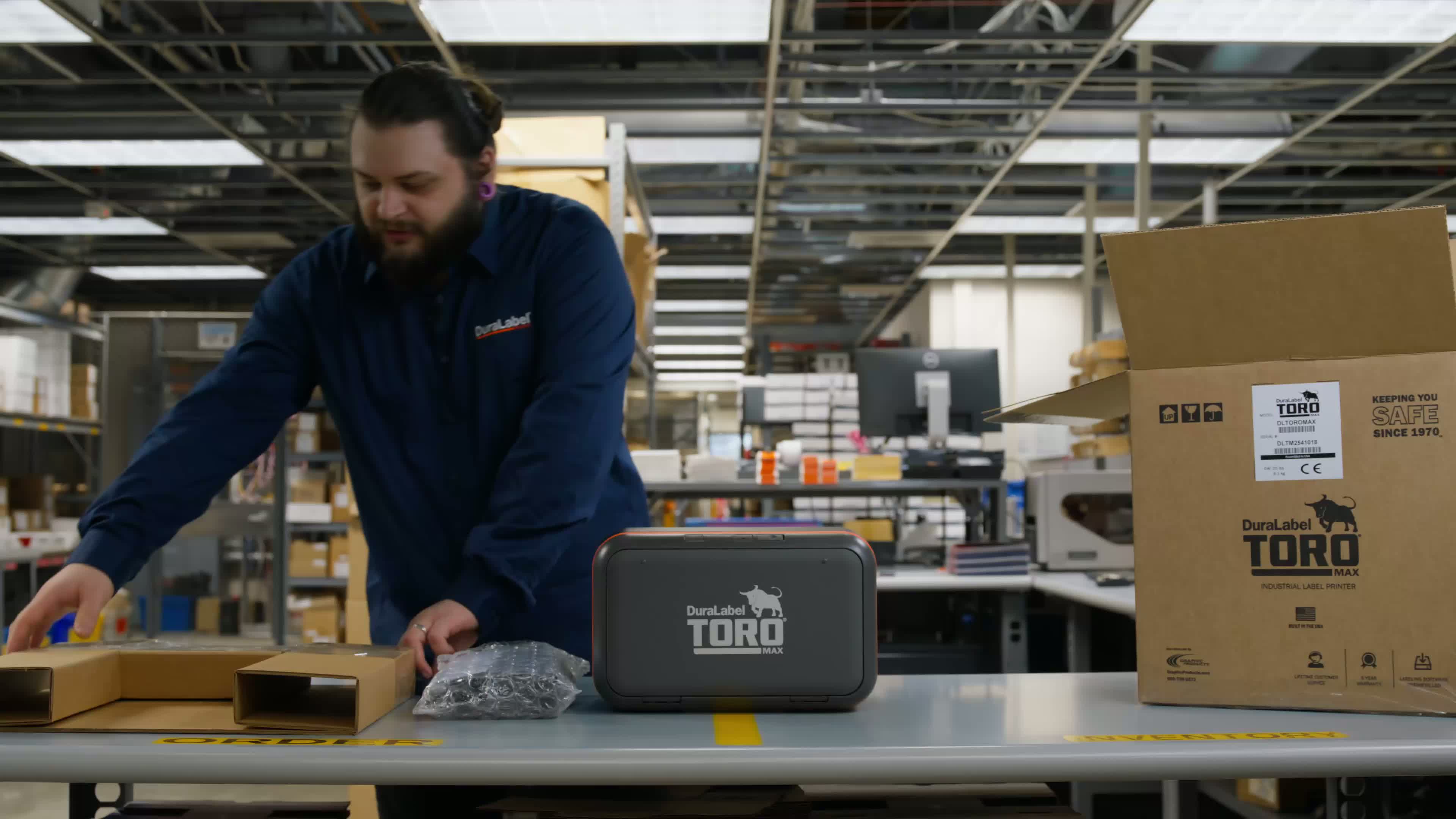

3. Identifying Accessories 1:36

• Gather all accessories:

  • Quick Start Manual

  • Power adapter and power cord

  • Supply spindle and supply wings

  • Stylus

  • Scraper

  • Two cleaning swabs

  • Flash drive with PC drivers and software

  • Mouse with dongle.

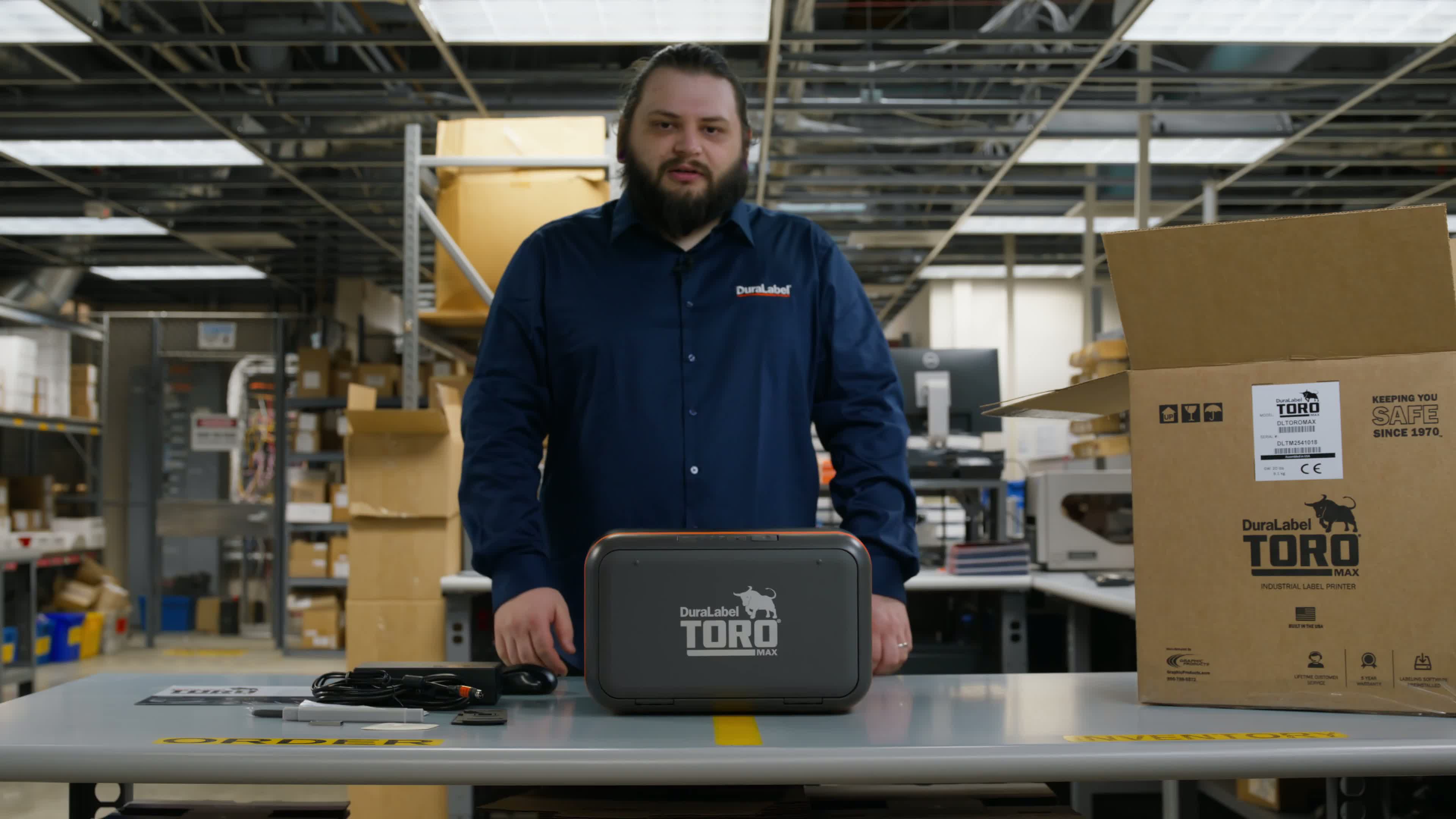

4. Printer Overview 2:27

• Familiarize yourself with the printer:

  • Locate the latch on the top to release the keyboard.

  • Identify the power button and feed button.

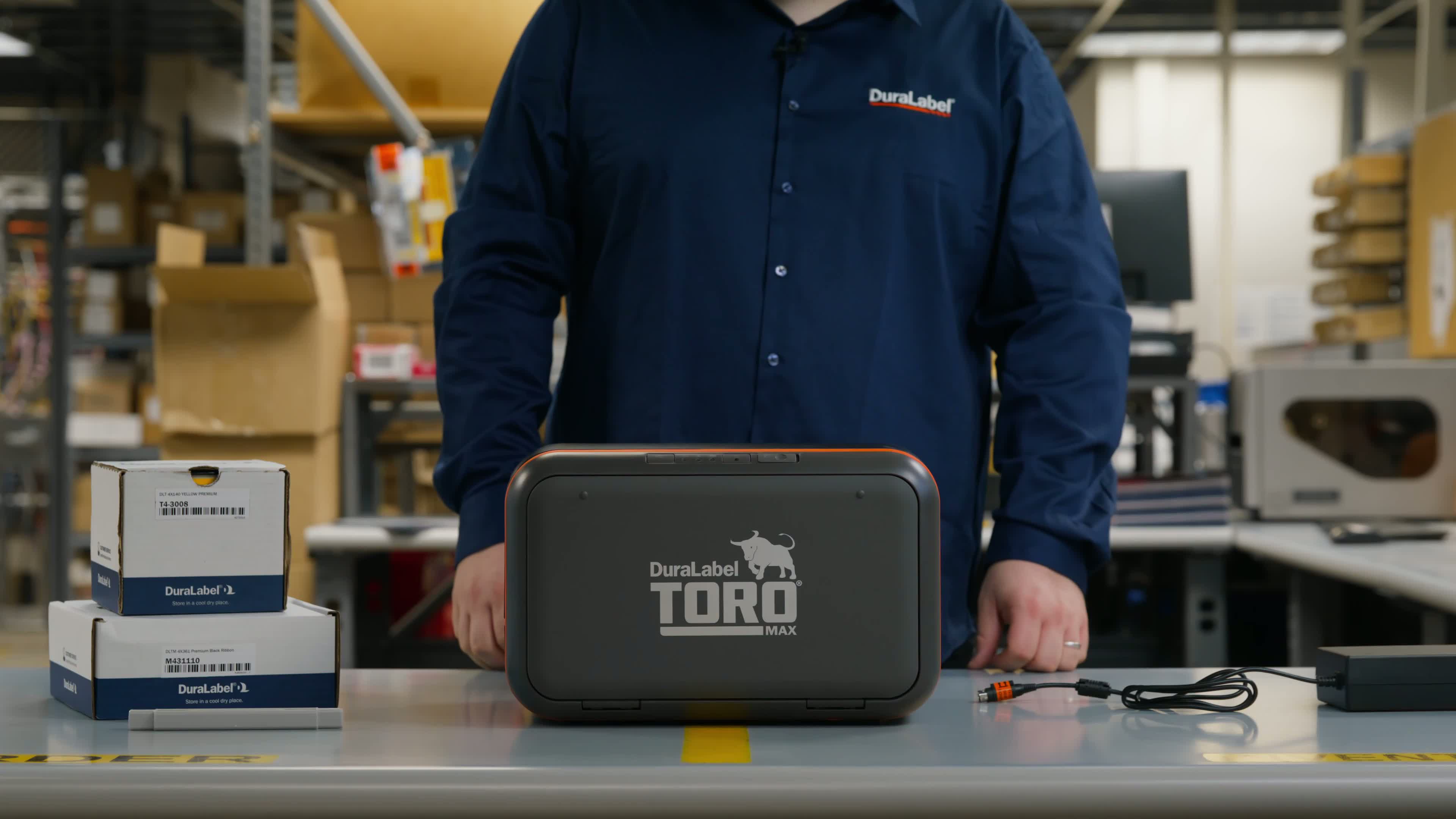

5. Loading the Printer 3:18

• Open the lid using the latch on the front.

• Remove any QA prints inside the printer.

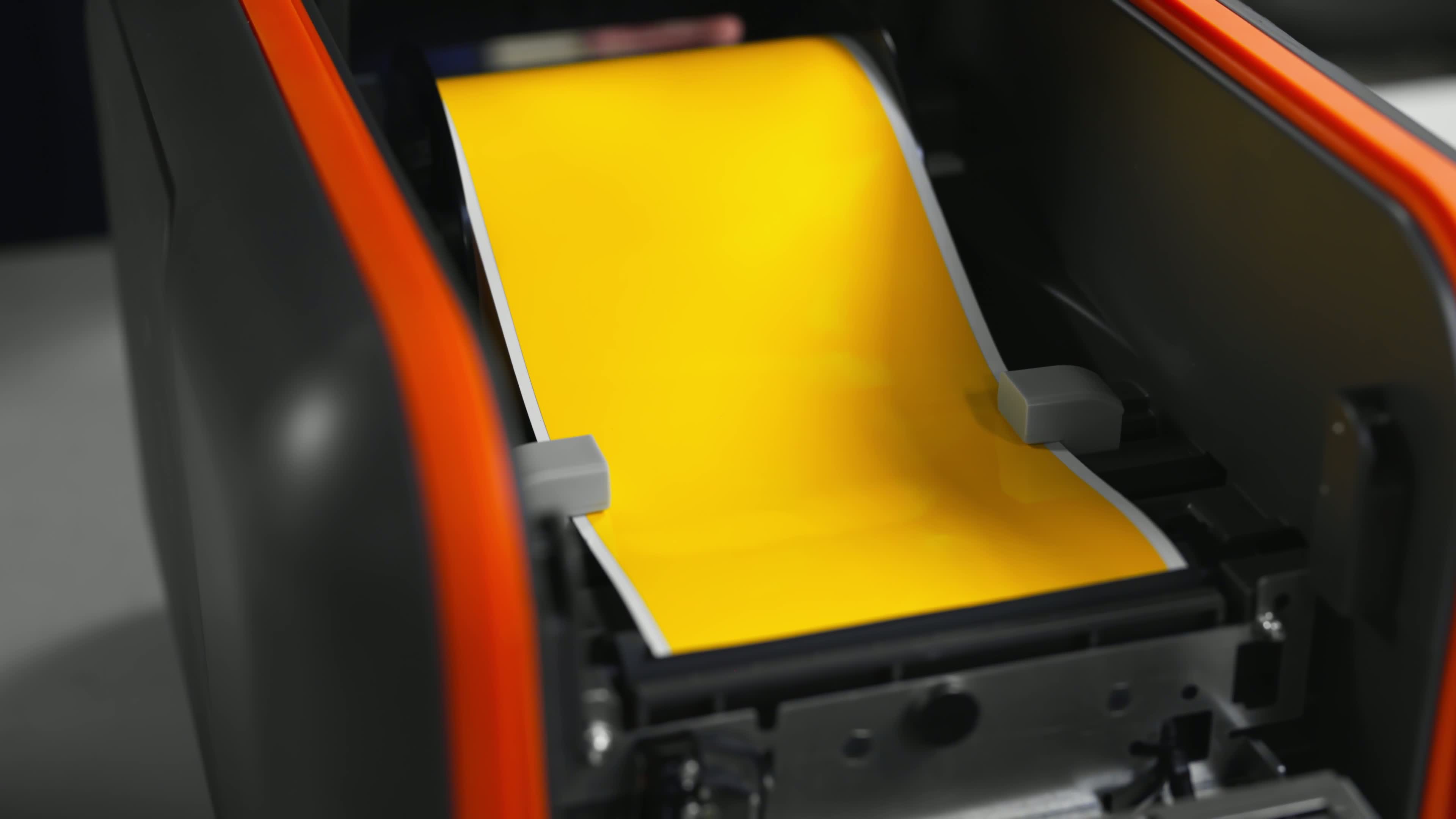

• Load the premium yellow vinyl onto the supply spindle and place it in the supply well.

• Center the vinyl on the platen roller and adjust the media guides.

6. Installing the Ribbon 4:10

• Open the premium black ribbon and ensure the sticker with the smart tag is facing into the printer.

• Slide the ribbon into place and close the lid.

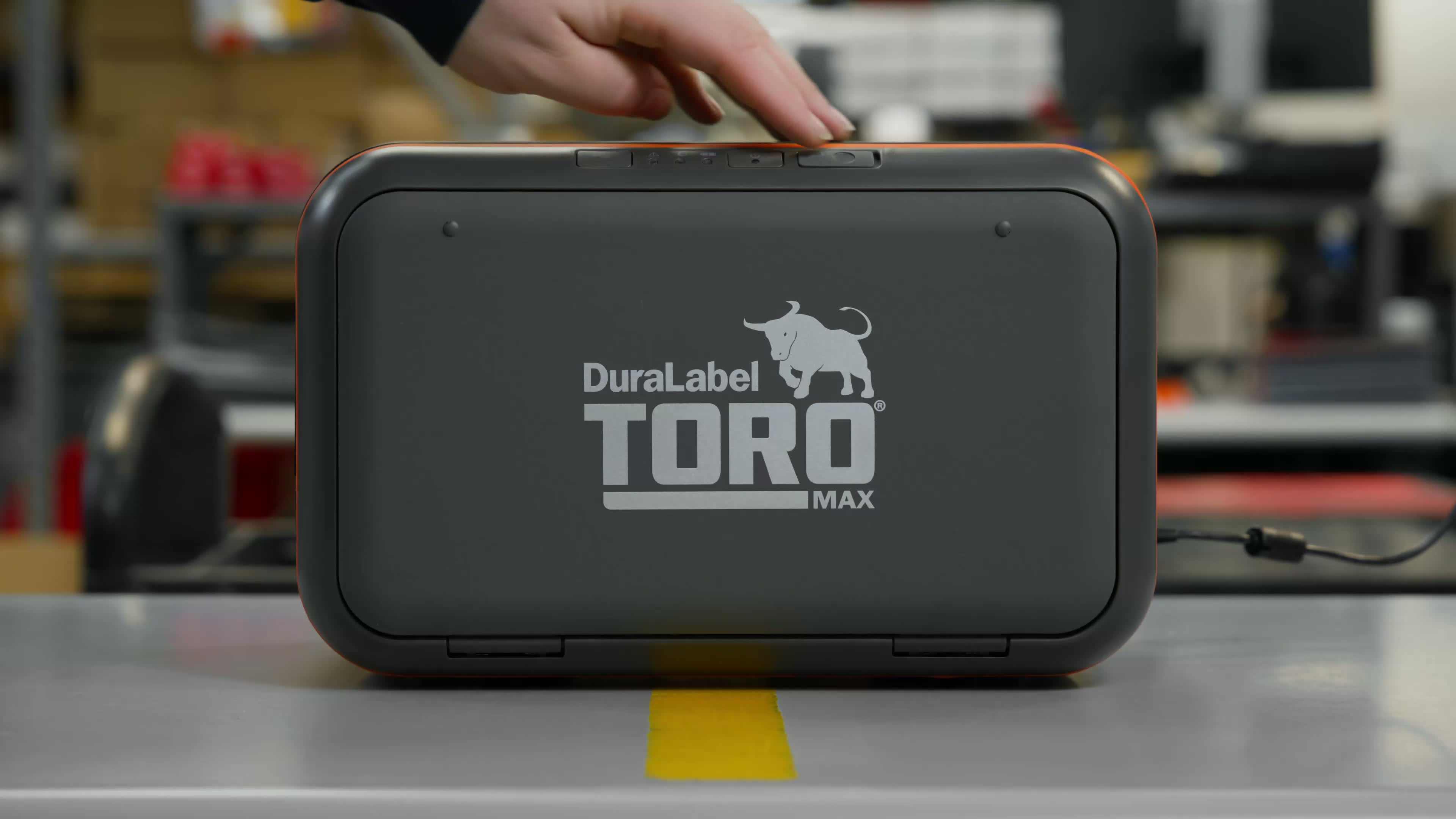

7. Powering On the Printer 4:36

• Remove the plastic from the screen and power on the printer.

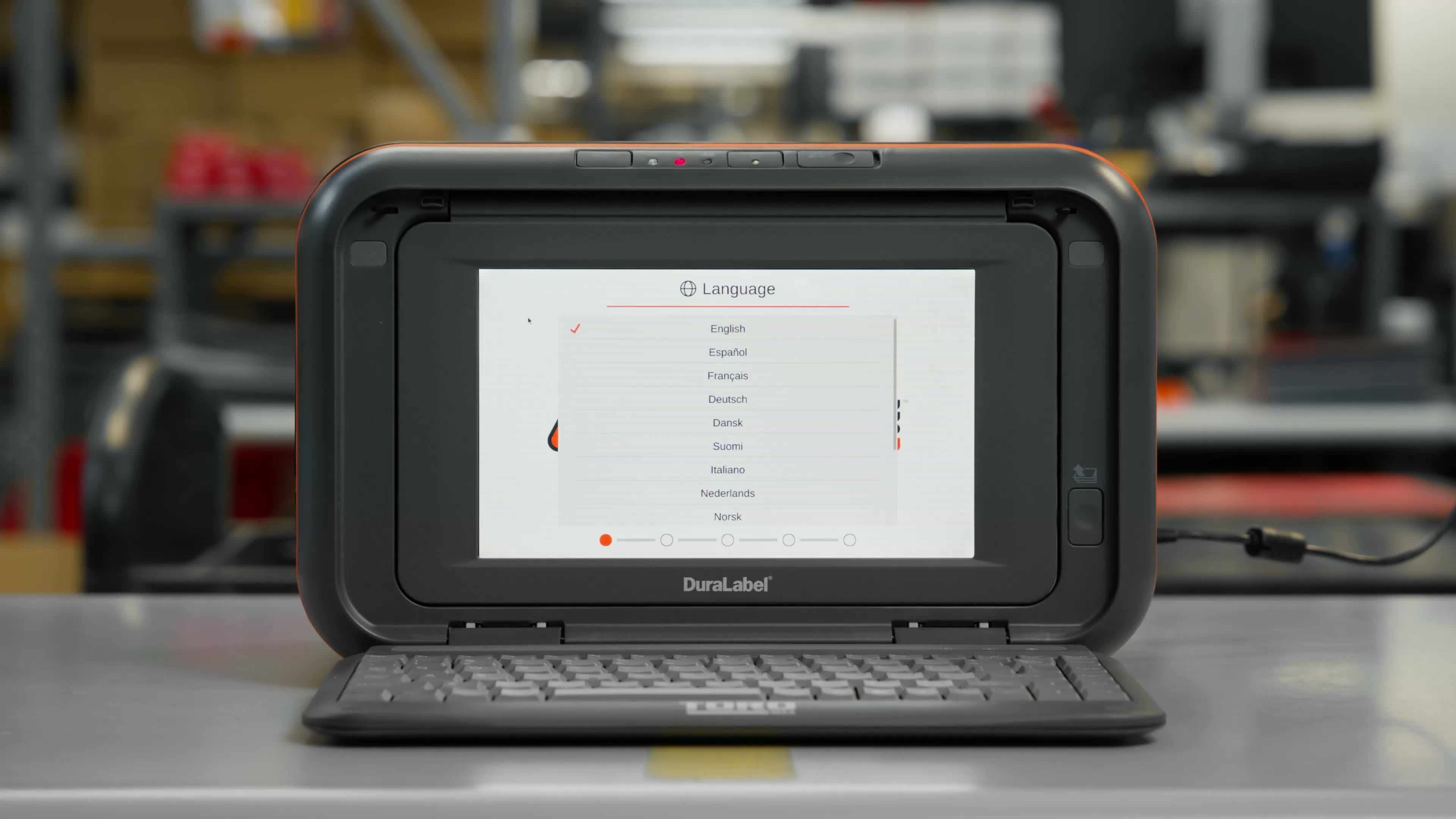

8. Initial Setup 4:56

• Follow the setup instructions:

  • Set the system language and keyboard layout.

  • Test the keyboard by typing something and clicking 'next'.

  • Set up the wireless connection or skip if not needed.

  • Ensure the system is updated and click 'finish'.

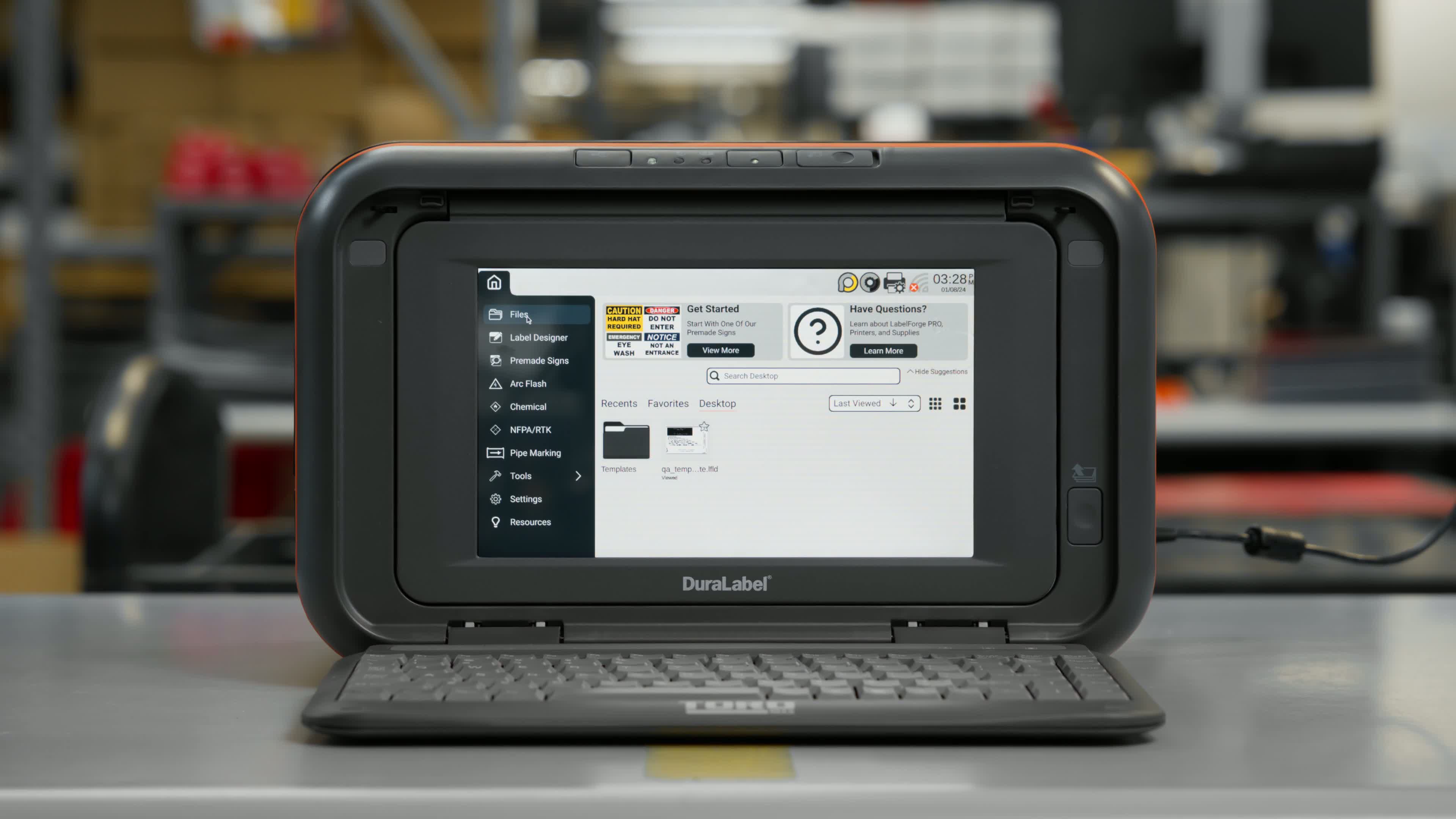

9. Printing Your First Label 5:53

• Access the premade signs library in LabelForge PRO.

• Use the search feature to find the desired label (e.g., 'forklift').

• Select the label and click 'open'.

• Tap the printer icon and click 'print'.

Cautionary Notes

• Always keep the original packaging materials for potential returns.

• Ensure the 'this side up' sticker is facing up when plugging in the power cord.

Tips for Efficiency

• Familiarize yourself with the Quick Start Guide for additional tips.

• Keep the workspace organized to avoid losing small accessories.

• Regularly check for software updates to ensure optimal printer performance.
